C2G Duplex Fiber Patch Cable

Part No. 15289

by C2G

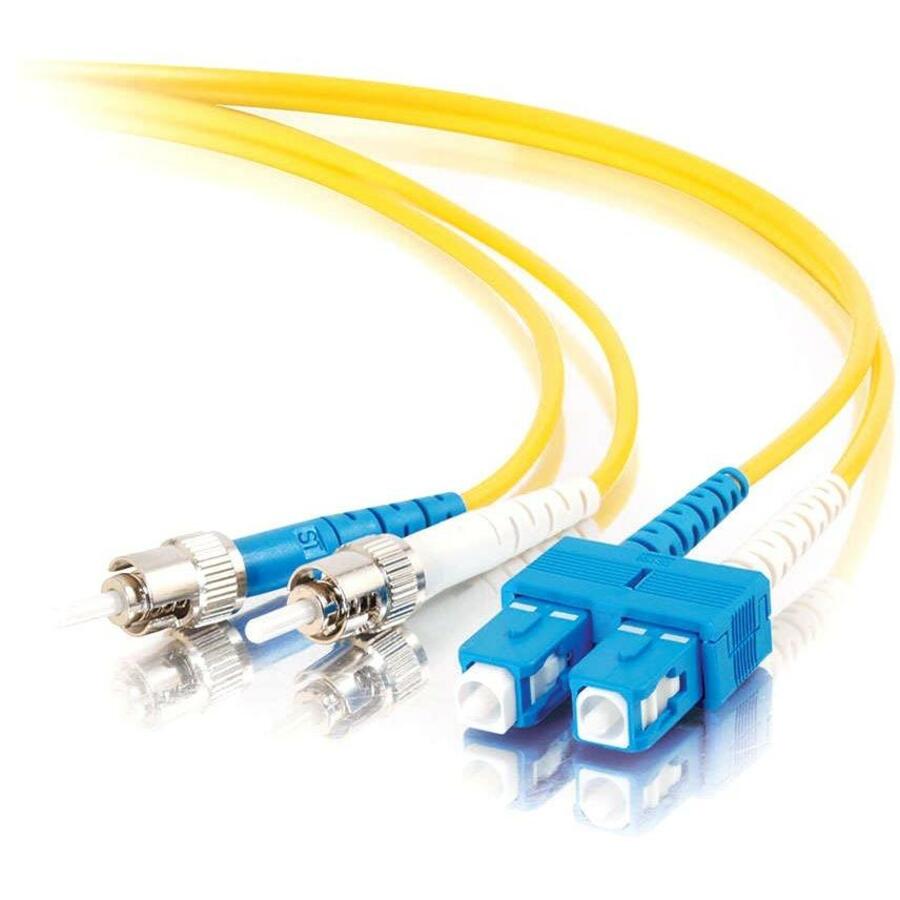

C2G Duplex Fiber Patch Cable

6.6 ft (2 m) Fiber Optic Network Cable - First End: 2 x SC Network - Male - Second End: 2 x ST - Male - Patch Cable - 9/125 µm - Yellow

Part No. 15289

by C2G

$35.99
General Information
ManufacturerLegrand Group
Manufacturer Part Number15289
Brand NameC2G
Product NameDuplex Fiber Patch Cable
Marketing Information

Get the performance you demand at a price that makes sense with 9/125 singlemode fiber patch cords from Cables To Go. They provide high bandwidth and transmission rates and support longer distances, but are still cost effective. Perfect for use with today's high speed networks while providing headroom for tomorrow's higher bandwidth requirements.

Product TypeNetwork Cable
Technical Information
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Fiber Optic Cable Core/Cladding Specification9/125 µm
Cable Length6.6 ft (2 m)
Connector Type on First EndSC Network - Male
Connector on First End Details2 x SC Network - Male
Connector Type on Second EndST - Male
Connector on Second End Details2 x ST - Male
Jacket TypePlenum
Physical Characteristics
Color FamilyYellow
Product ColorYellow
Shipping Height0.50" (12.70 mm)
Shipping Width6" (152.40 mm)
Shipping Weight (Approximate)1.84 oz (52.16 g)
Miscellaneous
Additional Information
  • Buffer OD: 900 µm
  • Jacket OD: 3.0 mm
  • Jacket color: Yellow
  • Attenuation @1310 nm: 1.0 dB/km
  • Attenuation @1550 nm: 0.75 dB/km
  • Maximum tensile load: 100 N/cm
  • Loaded min. bend radius: 5 cm
  • Unloaded min. bend radius: 3 cm
  • Crush resistance: 750 N/cm
  • Impact resistance: 1000 cycles
  • Flex resistance: 5000 cycles
Country of OriginHong Kong
ConditionNo
UPC757120152897
Warranty
Limited WarrantyLifetime
