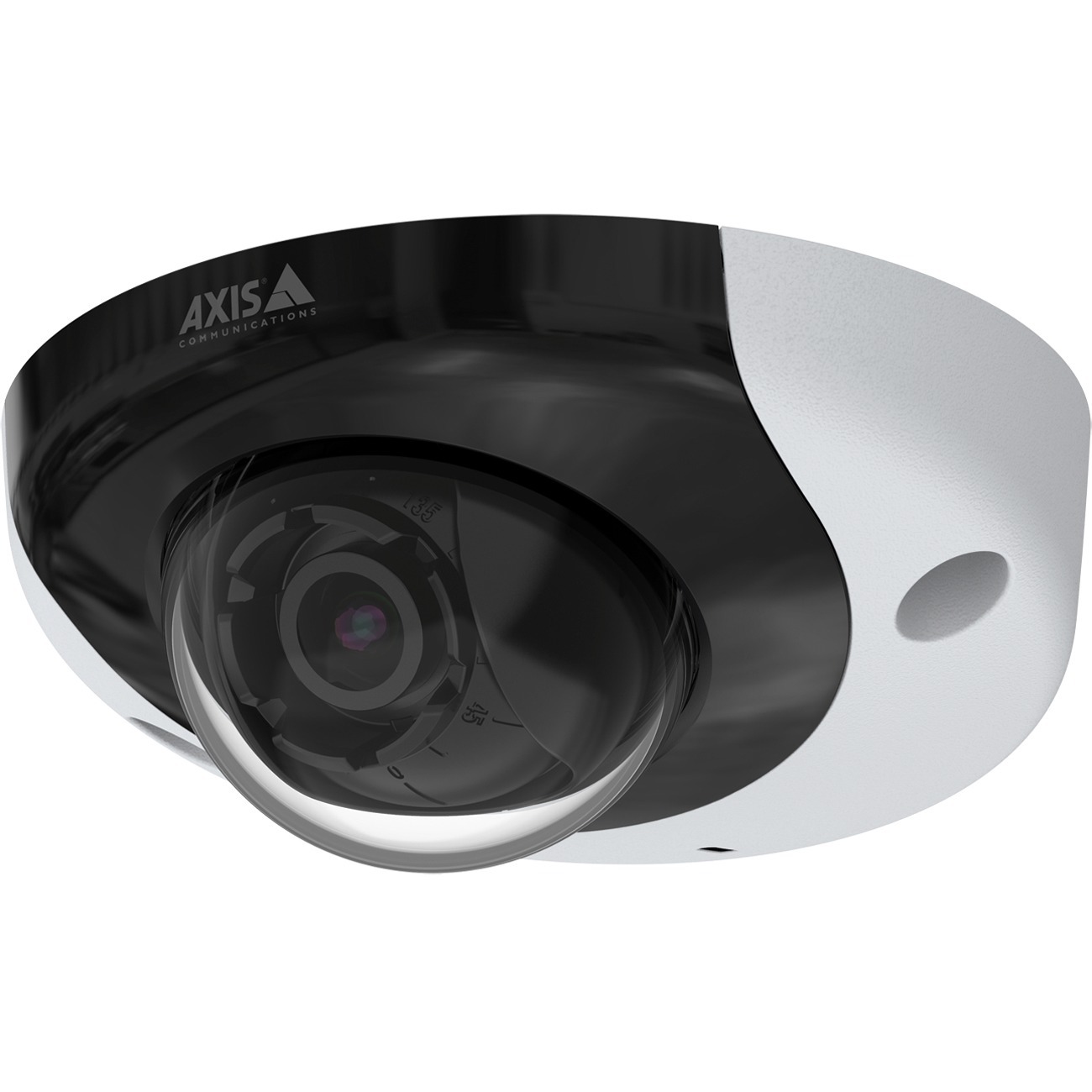

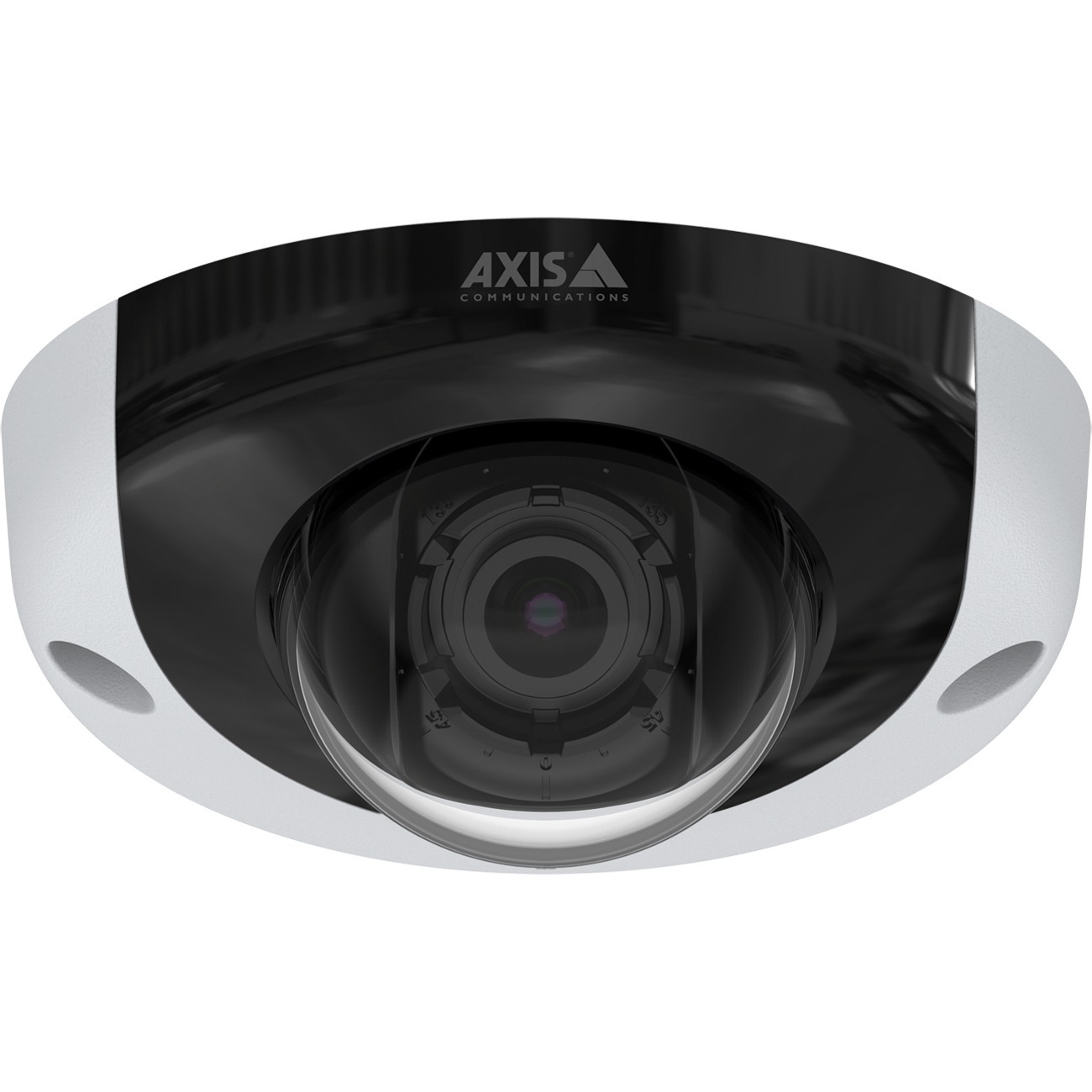

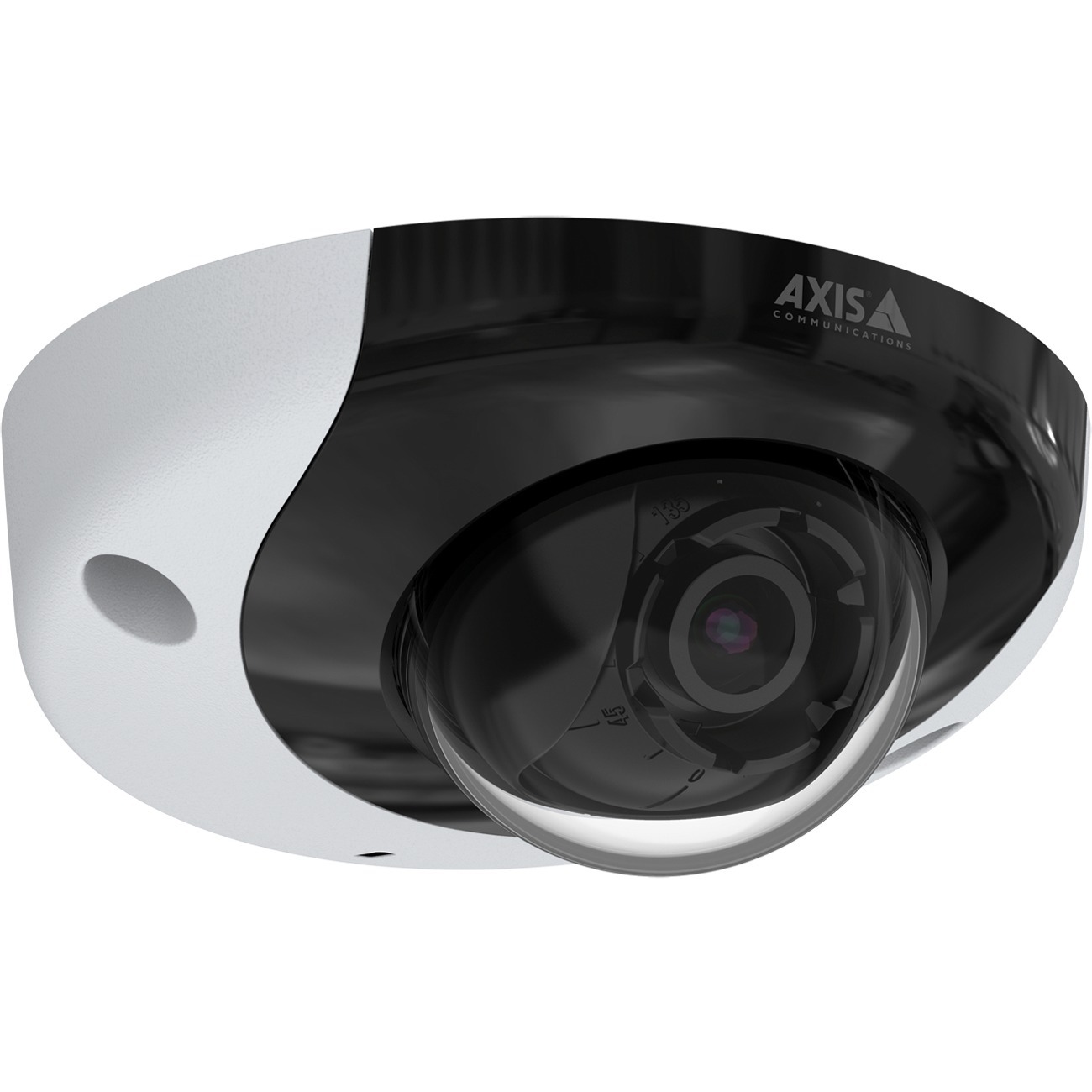

AXIS P3935-LR Full HD Network Camera - Color - 10 - Dome

Part No. 01932-021

by Axis Communications

AXIS P3935-LR Full HD Network Camera - Color - 10 - Dome

49.21 ft (15 m) Infrared Night Vision - H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), H.264 HP, H.265, H.265 (MPEG-H Part 2/HEVC), H.265 (MP), Motion JPEG - 1920 x 1080 - 2.8 mm (0.11") Fixed Lens - 45 fps - RGB CMOS - Bracket Mount, Pendant Mount, Wall Mount - IK10 - IP66, IP67 - Vandal Resistant, Water Resistant, Corrosion Resistant, Dust Resistant, Impact Resistant

Part No. 01932-021

by Axis Communications

$8147.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number01932-021
Brand NameAXIS
Product SeriesP39
Product ModelP3935-LR
Product NameP3935-LR Network Camera
Marketing Information

AXIS P3935-LR is specially designed for surveillance onboard vehicles and rolling stock such as trains, buses, and emergency vehicles. This robust, vandal-resistant camera offers improved imaging, IR and microphone, enhanced security features, and extended capabilities for analytics.

Superior image quality for onboard surveillance, 24/7

AXIS P3935-LR is packed with useful features ideal for onboard surveillance and changing light conditions. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. This is particularly useful when a vehicle goes into a tunnel or under a bridge. And thanks to a built-in invisible IR LEDs (940 nm), it can be used for video surveillance in complete darkness that won't distract the driver or passengers. Furthermore, it can be mounted forward-facing on the vehicle's dashboard and record everything from the driver's perspective, ideal for police vehicles and ambulances. Plus, in this scenario, electronic image stabilization (EIS) ensures stable video when the camera is subject to vibrations, perfect for capturing scenes outside the vehicle.

Optimized for transportation industry

Specifically designed for onboard surveillance, AXIS P3935-LR complies with transportation industry regulations including EN50155, EN45545, and NFPA 130. This robust dome camera comes in an IP66-, IP67-rated metal casing that protects it against water, corrosion, and dust. The casing is also vandal resistant with IK10 rating. For added peace of mind, it offers block view detection, so you're informed if the camera view is blocked by objects or spray paint, or if the camera is out of focus. With product versions including M12 and RJ45 connectors, it can be easily installed in any kind of vehicle. AXIS P3935-LR has powerful capacity for analytics so it's easy to add whatever analytics you need. Furthermore, it comes with a built-in microphone and external microphone input, allowing for audio surveillance and detection.

Keeping you secure

AXIS P3935-LR is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been altered and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

Packaged Quantity10
Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Night VisionYes
Night Vision Distance49.21 ft (15 m)
Night Vision TypeInfrared
Display & Graphics
Image Sensor TypeRGB CMOS
Color SupportedColor
Field of ViewHorizontal field of view: 110° - Vertical field of view: 62°
Video
Video Formats
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 BP
  • H.264 (MP)
  • H.264 HP
  • H.265
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
  • Motion JPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate45 fps
Lens
Lens TypeFixed
Maximum Focal Length2.8 mm (0.11")
Lens IncludedYes
Lens Mount TypeM12-mount
Maximum Aperturef/1.6
Exposure
Shortest Shutter Speed1/33500 Second
Longest Shutter Speed2 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Physical Characteristics
Mount Type
  • Bracket Mount
  • Pendant Mount
  • Wall Mount
Form FactorDome
Durability
  • Vandal Resistant
  • Water Resistant
  • Corrosion Resistant
  • Dust Resistant
  • Impact Resistant
Height1.94" (49.40 mm)
Diameter4.33" (110 mm)
Weight (Approximate)14.46 oz (410 g)
Environmental Conditions
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature158°F (70°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • Wide Dynamic Range
  • Built-in IR LED
  • Built-in Microphone
  • Audio Detection
  • Electronic Image Stabilization
  • Day/Night
  • Removable IR Cut-off Filter
  • Built-in Infrared Illuminator
  • White Balance
  • Privacy Masking
  • Defog
  • PTZ
  • Microphone In
  • Password Protection
  • HTTPS Encryption
  • SD Card Local Storage
  • Motion Detection
  • Active Tampering Alarm
  • Shock Detection
Package Contents
  • 10 x P3935-LR Network Camera
  • Installation Guide
  • Windows decoder 1-user License
  • Drill Hole Template
  • Lens Tool
  • Resistorx L-Key
Impact Protection RatingIK10
Ingress Protection Rating
  • IP66
  • IP67
TAA CompliantYes
NDAA CompliantYes
ConditionNo
UPC7331021069251
Warranty
Limited Warranty5 Year
