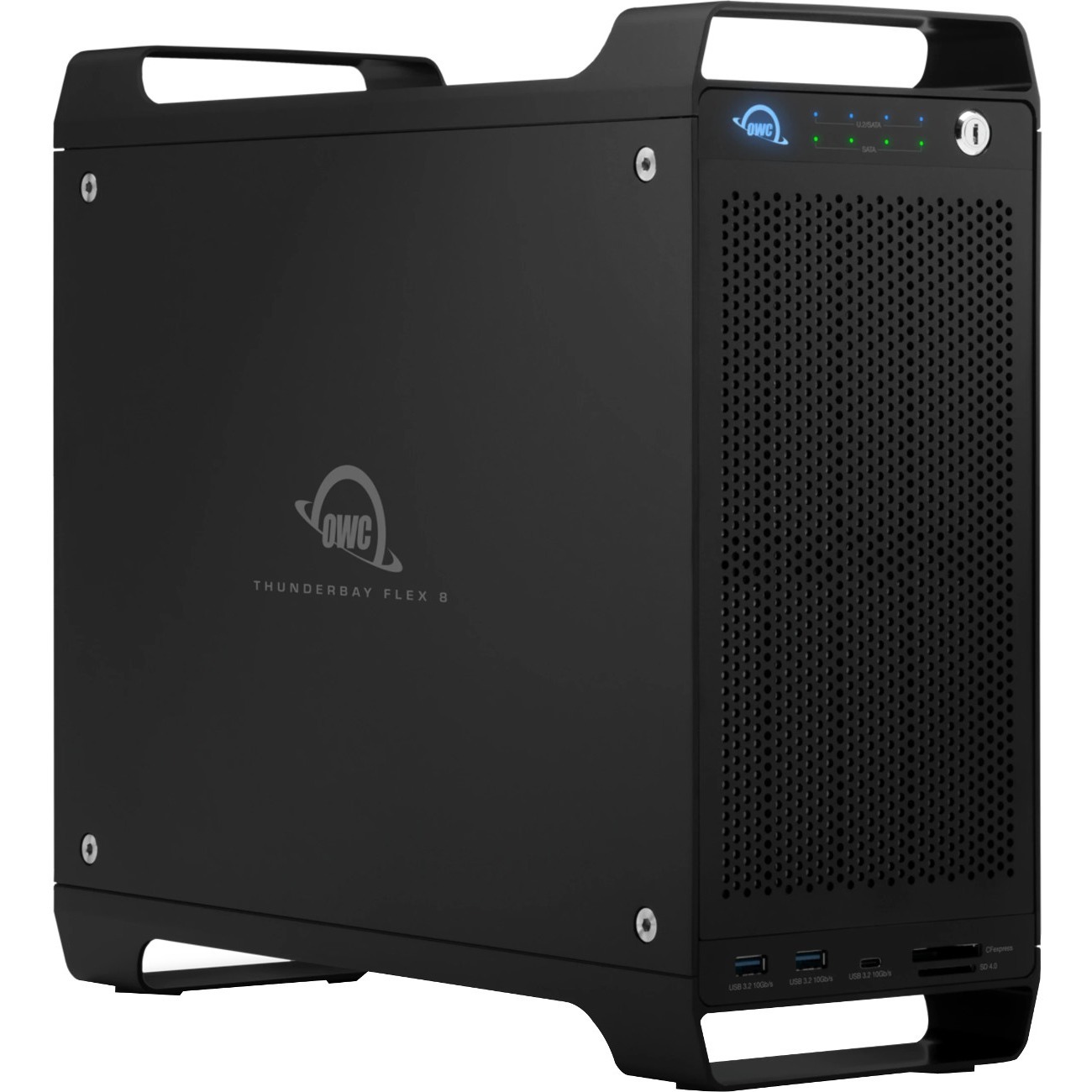

OWC ThunderBay Flex 8 DAS Storage System
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3F80D032 |
| Brand Name | OWC |
| Product Line | ThunderBay Flex 8 |
| Product Name | ThunderBay Flex 8 DAS Storage System |
| Marketing Information | 8 HDD Maximum Capacity Configuration Ideal for taming the voracious drive space appetite of RAW, 4K, large format, and VR workflows. Arrives pre-set with RAID 5 speed and protection. Plus, enjoy docking convenience and expand your capabilities by selecting a recommended PCIe card or add your own. Flex Your Way Through Every Workflow Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world's leading Thunderbolt accessory manufacturer. ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS and U.2/M.2 NVMe drives for virtually limitless storage capacity. Next, there's a plethora of ports including two Thunderbolt 3, one USB-C, and two USB-A for device docking and charging. See your work in greater detail by adding up to an 8K display via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there's a PCIe slot waiting for your specific project needs. ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology. NVMe. PCIe. What's It Mean to Me? At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer's processor. Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment's notice. |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 8 |
| Total Hard Drive Capacity Installed | 32 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive Configuration | 8 x 4TB |
| UASP Support | Yes |

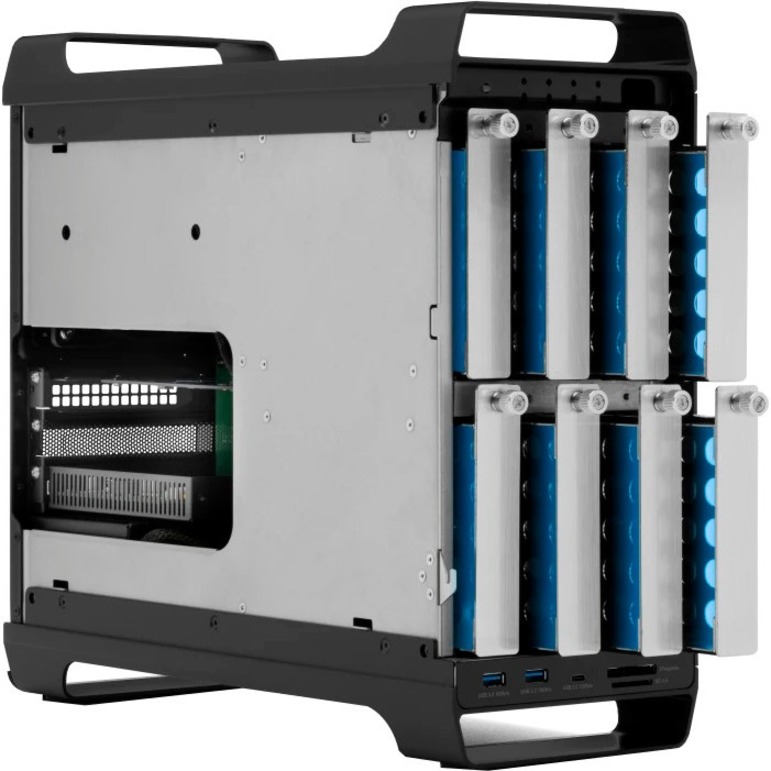

| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Software RAID Supported | Yes |
| Host Interface | Thunderbolt 3 |

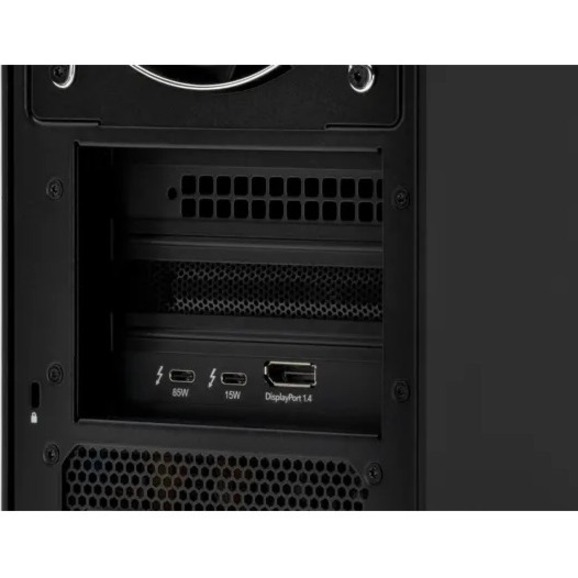

| Number of DisplayPorts | 1 |

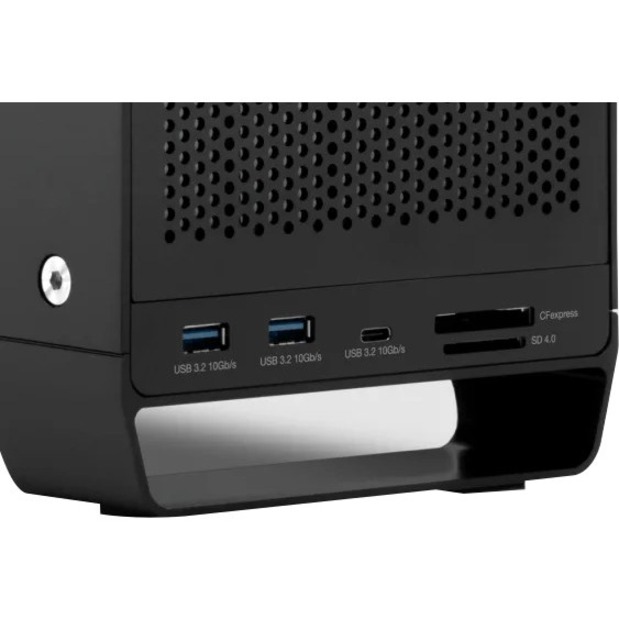

| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of Thunderbolt 3 Ports | 2 |
| Maximum Power Supply Wattage | 450 W |
| Cooling Fan | Yes |
| Height | 13.70" (347.98 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 15.40" (391.16 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 20.26 lb (9189.78 g) |
| Package Contents |
|
| Condition | No |
| Limited Warranty | 5 Year |
