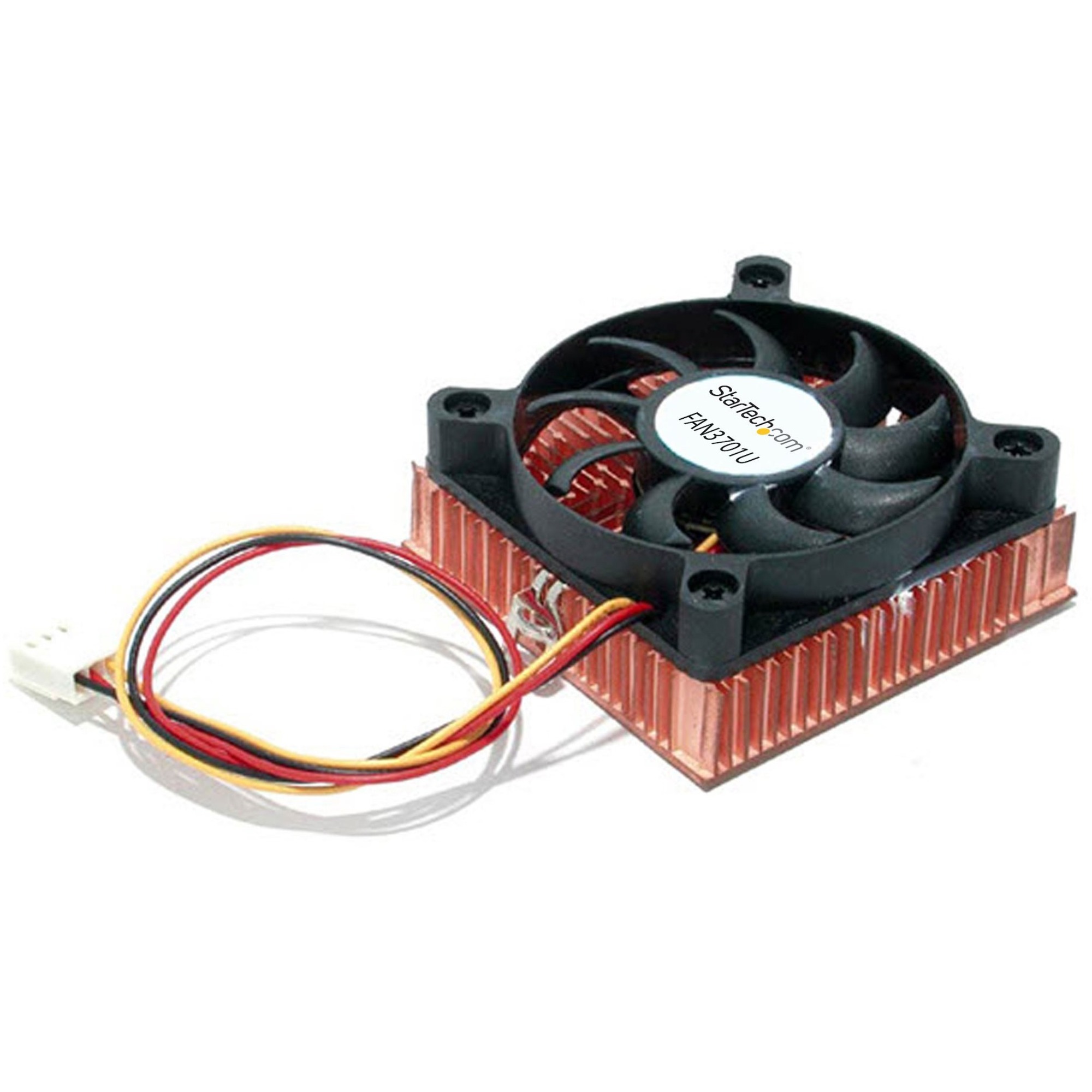

StarTech.com 1U 60x10mm Socket 7/370 CPU Cooler Fan w/ Copper Heatsink & TX3

Part No. FAN3701U

by StarTech.com

This Product is currently not in offering

StarTech.com 1U 60x10mm Socket 7/370 CPU Cooler Fan w/ Copper Heatsink & TX3

Part No. FAN3701U

by StarTech.com

This Product is currently not in offering

General Information
ManufacturerStarTech.com
Manufacturer Part NumberFAN3701U
Brand NameStarTech.com
Product Name60x10mm Socket 7/370 CPU Cooler Fan
Marketing Information

This 60x10mm Socket 7/370 CPU Cooler helps keep your 1U servers running smoothly, by providing a reliable, cost-effective server cooling solution.

The server CPU cooler features a copper base and socket-type CPU fan, ensuring rapid heat dissipation in the reduced space of a 1U server environment.

The CPU cooler is powered through a simple TX3 connection to the server power supply, and is suitable for all Intel Celeron/PIII processors and AMD Athlon/Duron processors up to 1GHz.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity1 Each
Product TypeCooling Fan/Heatsink
Fan Information
Fan Bearing TypeBall Bearing
Fan Speed (Max)5000 rpm
Maximum Airflow13.48 CFM (22.90m³/h)
Noise Levels31 dB
Interfaces/Ports
Connectors1 - TX3 Female TX3
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Product MaterialPlastic
Heatsink MaterialCopper
Maximum Fan Diameter2.36" (60 mm)
Heatsink Height2.52" (64.01 mm)
Heatsink Width2.48" (62.99 mm)
Heatsink Depth0.39" (9.91 mm)
Fan Height2.36" (60 mm)
Fan Width2.36" (60 mm)
Fan Depth0.39" (10 mm)
Height2.36" (59.94 mm)
Width2.36" (59.94 mm)
Depth0.39" (9.91 mm)
Weight (Approximate)7.04 oz (199.58 g)
Miscellaneous
Package Contents
  • 60x10mm Socket 7/370 CPU Cooler Fan
  • 1 x Packet of Thermal Compound
Compatibility

CPU Compatibility:

  • Intel: Celeron up to 1 GHz
  • Pentium: III up to 1 GHz
  • AMD: Athlon & Duron up to 1 GHz
  • Socket Type: 370
Application/UsageProcessor
Environmentally FriendlyYes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginChina
Warranty
Limited Warranty2 Year
