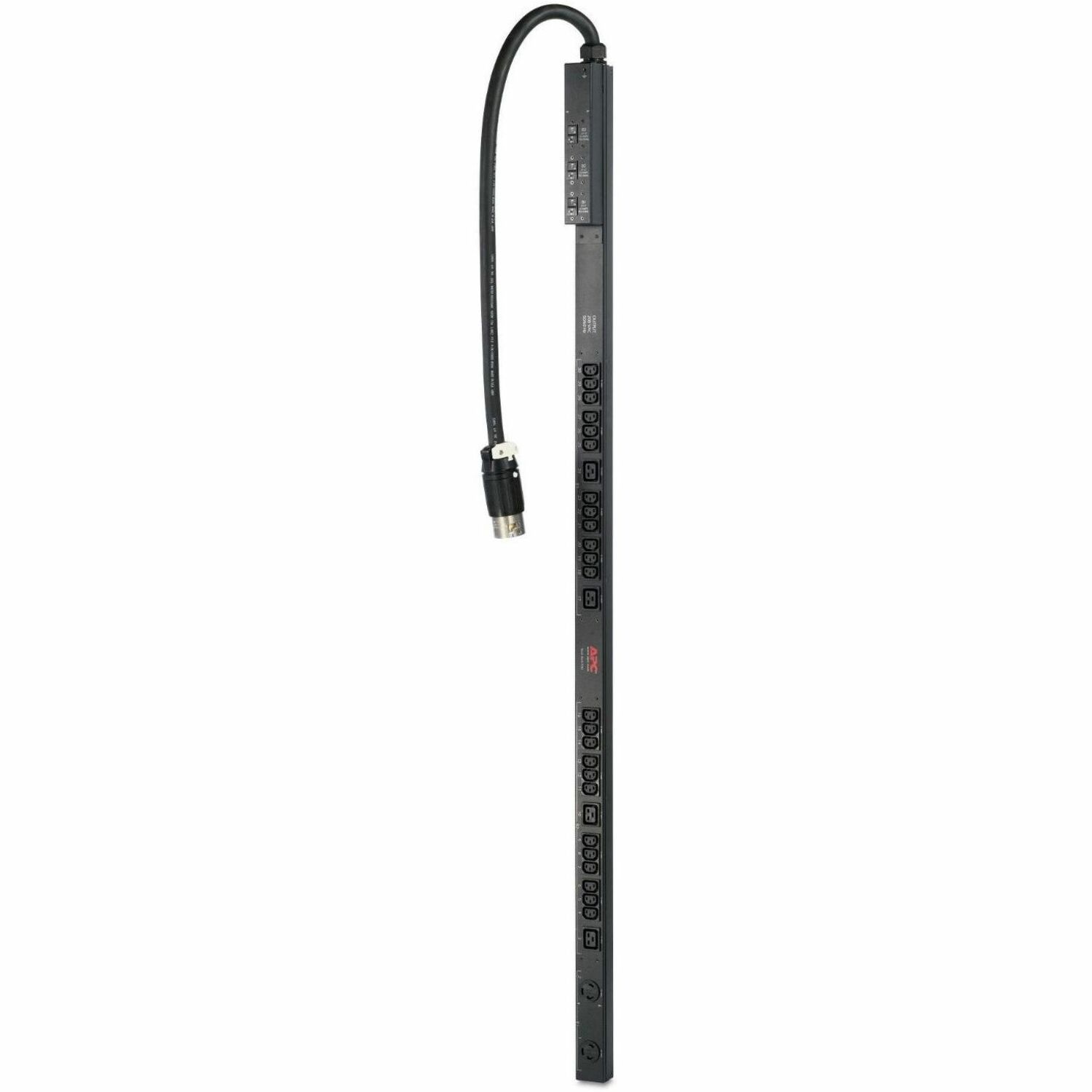

APC Basic Rack 14.4kVA PDU
24 x IEC 320-C13, 4 x IEC 320-C19, 2 x NEMA L6-30R - 14.4kVA - Zero U Rack-mountable
$1995.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7569 |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 14.4kVA PDU |
| Marketing Information | It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 50A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets, providing flexibility for connecting various IT equipment. It includes a 3-foot power cord with a CS8365 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit. |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
Technical Information
| PDU Type | Basic |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 14.40 kVA |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 3 ft (0.90 m) |
| Height | 70" (1778 mm) |
| Width | 2.20" (56 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 16.14 lb (7320.98 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Compatibility |
|
| Certifications & Standards | cUL Listed|CSA|METI Denan|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759122&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759122&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304240754 |
Warranty
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
