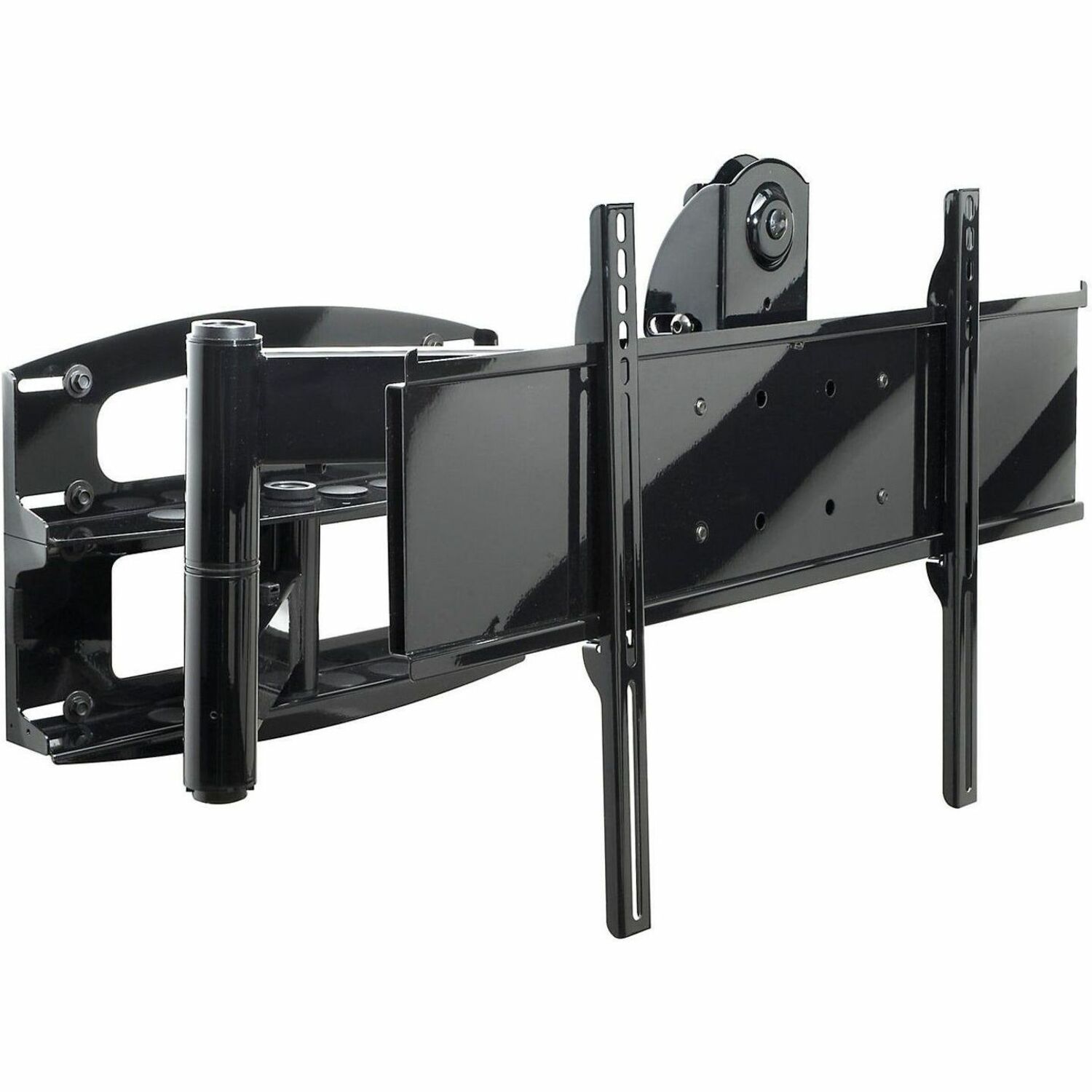

Peerless HG Series Articulating Dual Wall Arm with Vertical Adjustment

Part No. plav70unlp-gb

by Peerless Industries, Inc

Peerless HG Series Articulating Dual Wall Arm with Vertical Adjustment

Steel - 91 kg

Part No. plav70unlp-gb

by Peerless Industries, Inc

$748.99
General Information
ManufacturerPeerless Industries, Inc
Manufacturer Part Numberplav70unlp-gb
Brand NamePeerless-AV
Product SeriesHG
Product ModelPLAV70-UNLP-GB
Product NamePLA Series Articulating Dual Wall Armwith Vertical Adjustment For 42" to 95" Dis
Marketing Information

Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV70's self-lubricating bushingsenable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and outof recessed cubby holes and custom frames with the vertical adjustment feature that providesthe capability to raise or lower your display for a perfectly aligned installation.

Packaged Quantity1
Product TypeMounting Arm
Product Information
Device SupportedFlat Panel Display
Maximum Load Capacity90.72 kg
Minimum Screen Size Supported42"
Maximum Screen Size Supported60"
Physical Characteristics
Product ColorBlack
Product MaterialSteel
Weight (Approximate)28.58 kg
Miscellaneous
Package Contents
  • HG Series Articulating Dual Wall Arm with Vertical Adjustment
  • 1 x Wall plate
  • 1 x Tilt-roll assembly
  • 1 x Arm assembly
  • 2 x Wall support arm axle
  • 3 x Vinyl trim
  • 8 x (M10 x 1.5 x 15mm) screw bolt
  • 1 x (.505 x .75 x .062") Nylon washer
  • 1 x Tilt adjustment knob
  • 1 x Carriage bolt (3/8"-16 x 3.25")
  • 4 x (1.525 x 2 x .062") Delrin washer
  • 2 x (#8-32 x .375") Socket cap screw
  • 6 x Plastic finishing cap
  • 2 x Holding pin
  • 2 x Retainer plug
  • 8 x (5/16 x 3") Wood screw
  • 8 x (.250 x 1 x .068") Washer
  • 1 x 9/64" Allen wrench
  • 8 x Cable management clips
  • 8 x Cable tie
  • 2 x 36" Polyester mesh sleeve
  • 1 x 6 mm Allen wrench
  • 1 x 10 mm Allen wrench
  • 8 x Anchor
  • 1 x Adapter bracket
  • 2 x Shallow adapter bracket
  • 2 x Deep adapter bracket
  • 1 x Allen wrench
Additional Information
  • +10°/-5° tilt
  • Up to 180° pivot
  • Extends out to 31.9" , retracts to 5.6"
  • Anti-lockout feature prevents joint binding
  • High gloss scratch-resistant fused epoxy finish
  • +/-7° roll to level screen horizontally at any position
  • Snap-cover cord management and mesh cord sheaths li>+/-1" vertical adjustment located within reach behind screen
  • Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts
Compatibility

42"- 60" Plasma and LCD Screens

Certifications & Standards

UL

Country of OriginUnited States
ConditionNo
UPC0735029247135
Warranty
Limited Warranty5 Year
