| Marketing Information | - Must use with TFC-1000S40D5

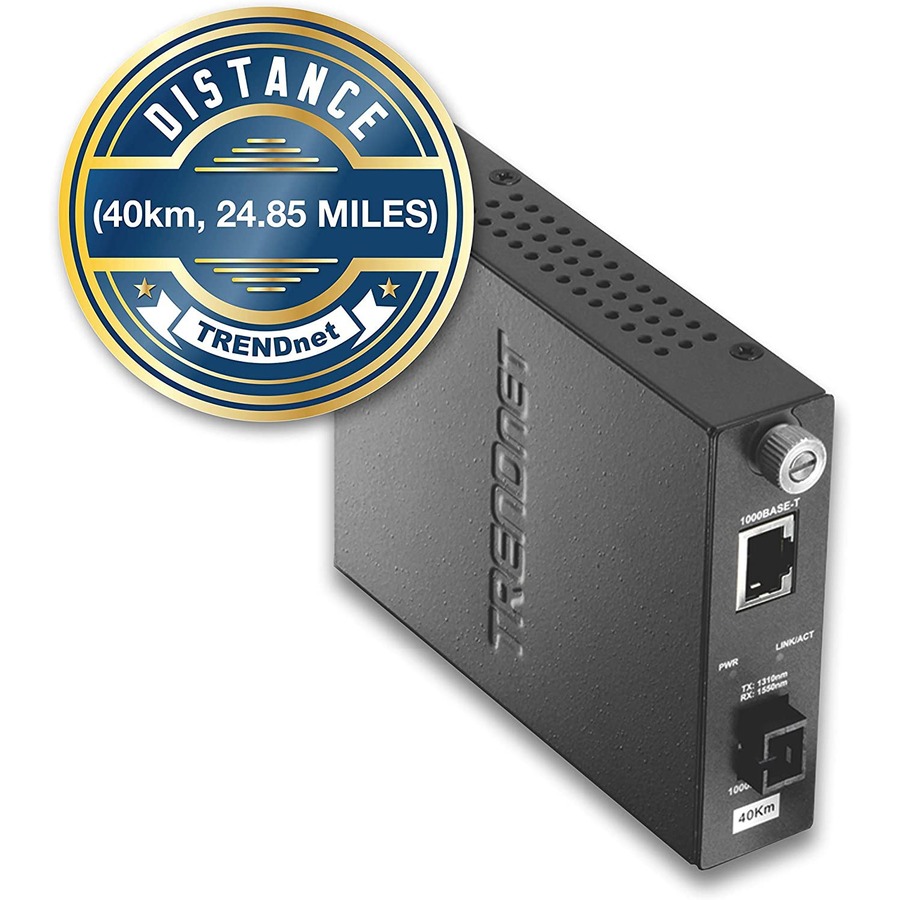

- SC-type dual-wavelength single-mode fiber port connects over distances of up to 40km (24.85 miles)
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Status LED indicators for Power and Link/Activity
- Wall mountable
- Lifetime TRENDnet Manufacturer's Warranty

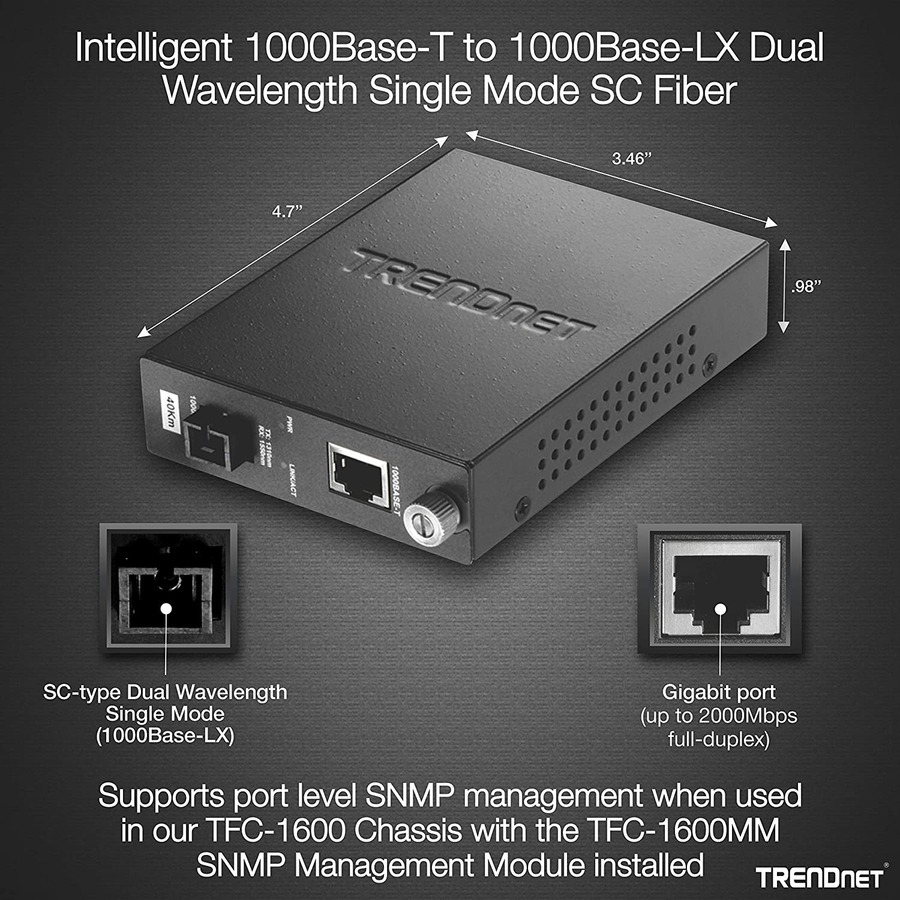

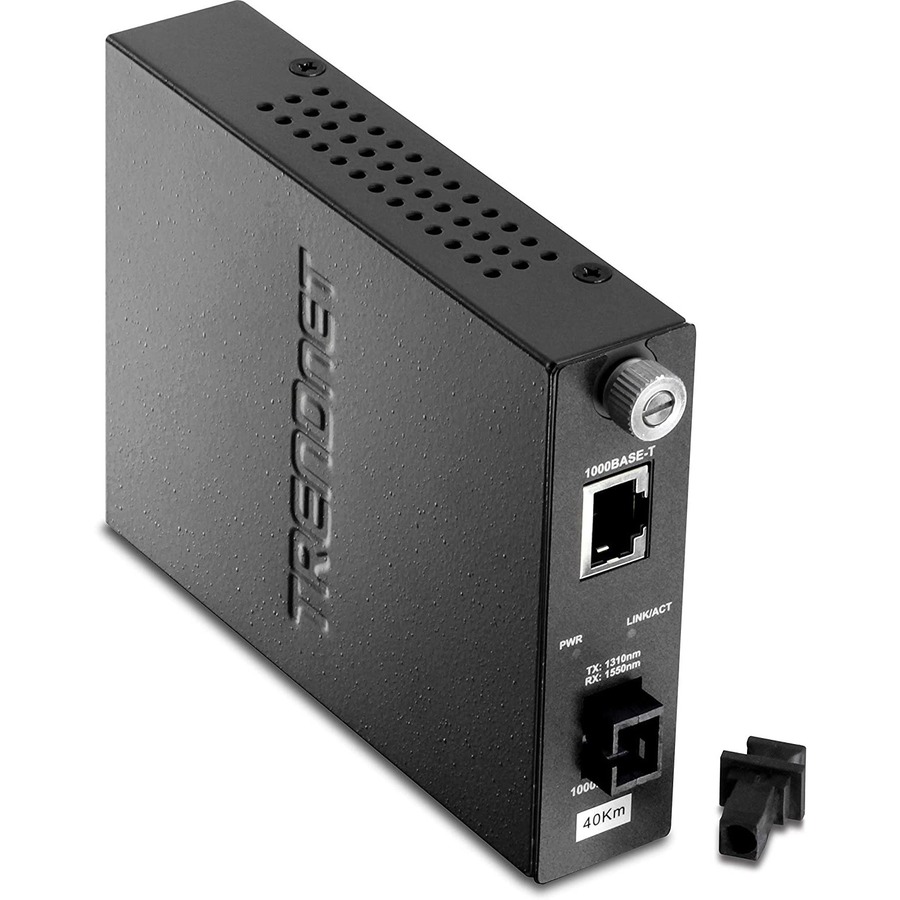

The TFC-1000S40D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 40 km (24.85 miles). This module must be used with the TFC-1000S40D5 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.
Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port
Provides Dip switch to set: Fiber (Forced / Auto-Negotiation), LLR (Enable / Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (Link Loss Return) for FX port
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link / Activity
Wall mountable

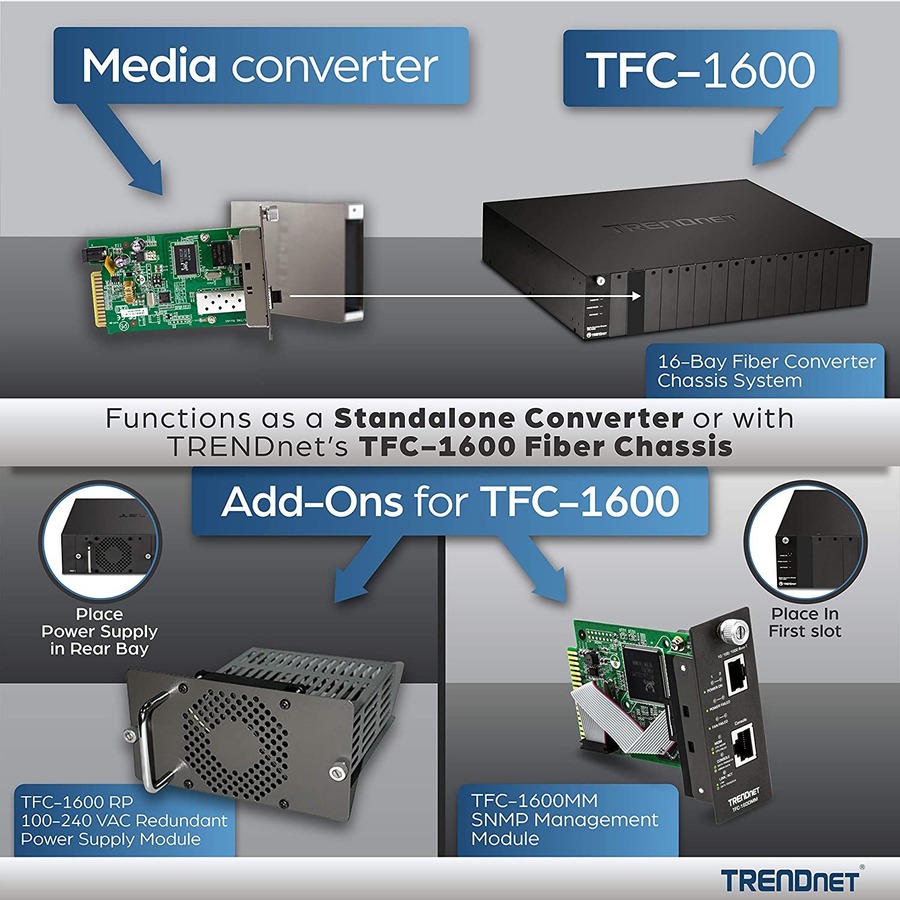

Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

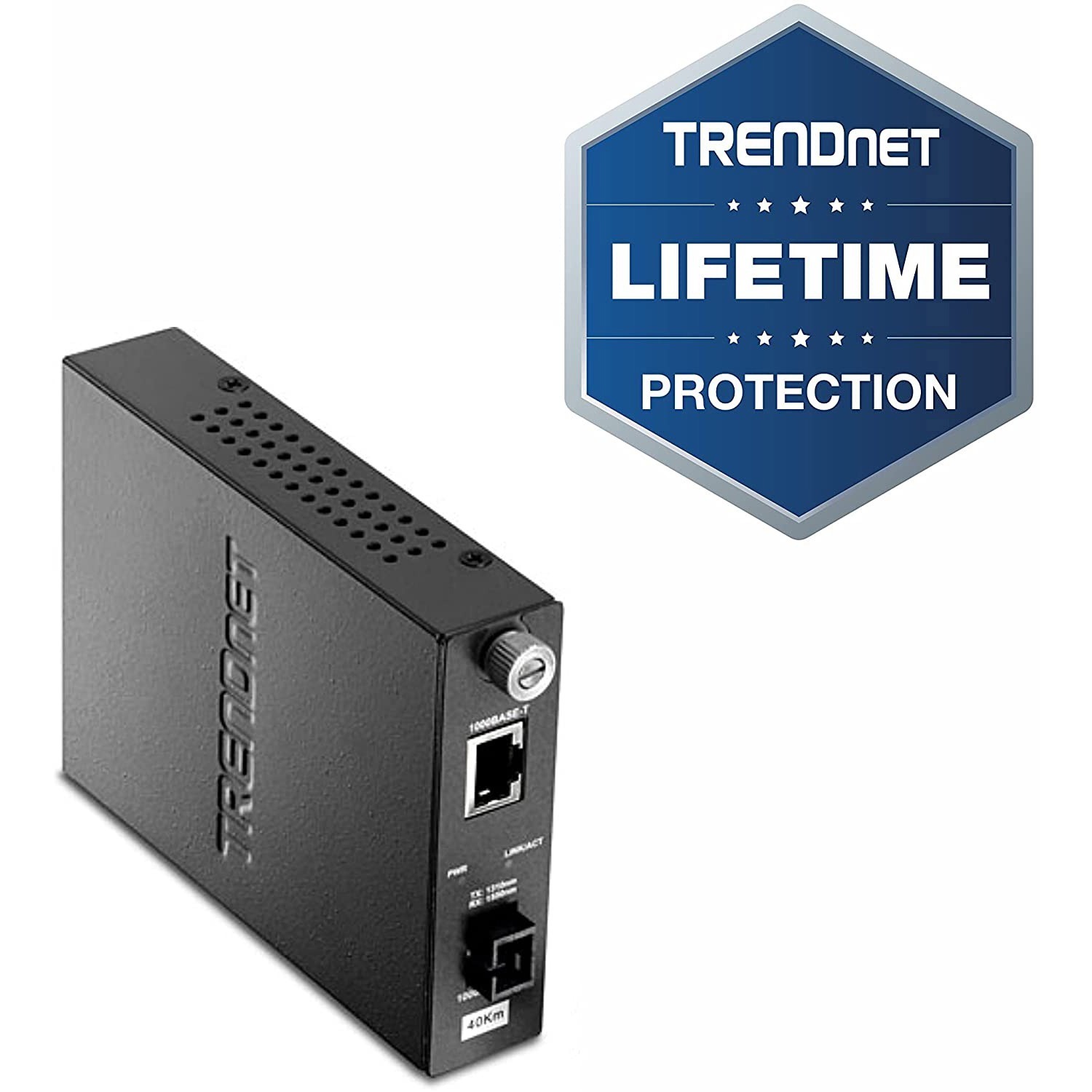

Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-1000S40D3
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A) More from the Manufacturer |
