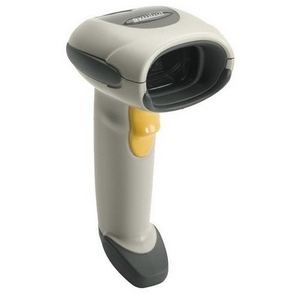

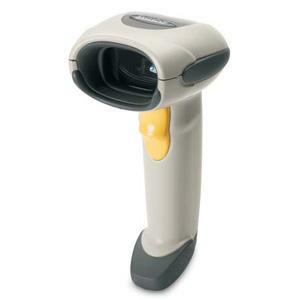

Zebra LS 4208 Bar Code Reader

Part No. LS4208-PR20007ZZR

by Zebra Technologies Corporation

Zebra LS 4208 Bar Code Reader

Wired

Part No. LS4208-PR20007ZZR

by Zebra Technologies Corporation

$512.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberLS4208-PR20007ZZR
Brand NameZebra
Product LineSymbol
Product ModelLS4208
Product NameSymbol LS 4208 Bar Code Reader
Marketing Information

With Symbol's LS4208 handheld laser Bar Code Reader, user is able to effortlessly speed throughput, even with bar codes in poor condition. Wherever need to quickly capture and process data such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments this ergonomically designed scanner helps to increase accuracy, improve productivity, cut maintenance costs and reduce the risk of downtime.

Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyCable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
  • PDF 417
  • Micro PDF
  • Composite Codes
Light SourceLaser
Maximum Scan Resolution5 mil (0.127 mm)
Depth of Field
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 14"@10mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 29"@20mil - Code 39
Scan Pattern2D Raster
Interfaces/Ports
Host InterfaceMulti-interface
Power Description
Input Voltage5 V DC
Physical Characteristics
Form FactorHandheld
Product ColorBlack
Height6.70" (170.18 mm)
Width2.70" (68.58 mm)
Depth3.70" (93.98 mm)
Weight (Approximate)6.40 oz (181.44 g)
Miscellaneous
Additional Information

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Wand Emulation

USB Cable separate

Certifications & Standards

Electrical safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
COOMX
ConditionNo
Warranty
Limited Warranty5 Year
connector cables (13)

Part No. CBA-D02-C09ZAR

Zebra Standard Undecoded Coiled Cable - 2.74m

Part No. CBA-U03-S07ZAR

Zebra Straight Power Plus USB Cable - USB - 2.13m

US#KH2333

Part No. CBA-R09-C09ZAR

Zebra Coiled RS232 Cable - Serial - 2.74m

Part No. CBA-U15-S15ZAR

Zebra Straight Cable - USB - 4.57m

Part No. CBA-R28-C09ZAR

Zebra Coiled Cable - mini-DIN (PS/2) Male Serial - 2.74m

holders (1)

Part No. 20-70774-01R

Zebra Intellistand - White

GRAY/WHITE

power cords (1)

Part No. 23844-00-00R

Zebra US 7.5' AC Line Cord - 7.5 ft (2.29 m) Cord Length - United States

PWRS1400148R/14000241R/NEW PWR SUPL

stands & equipment cabinets (1)

Part No. 20-70774-02R

Zebra IntelliStand Scanner Stand - Black

BLACK
