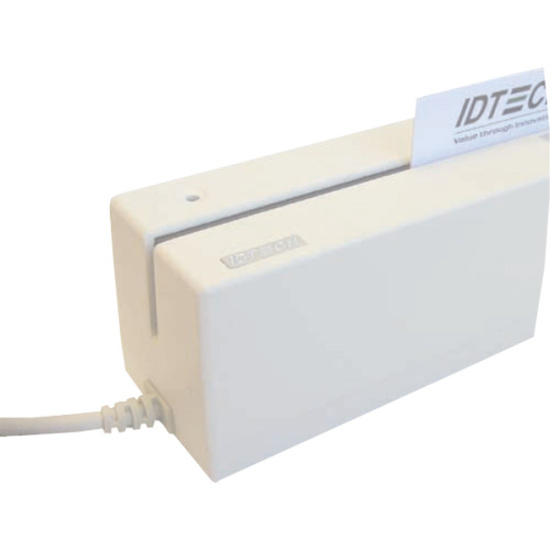

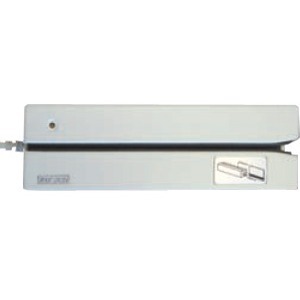

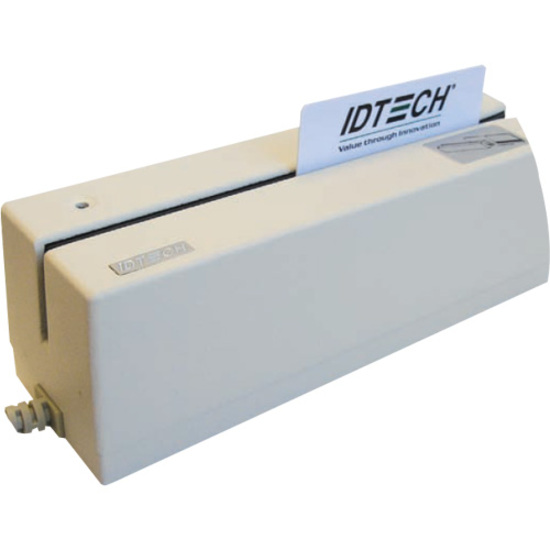

ID TECH EzWriter Magnetic Stripe Reader

Part No. IDWA-336333

$569.99

ID TECH EzWriter Magnetic Stripe Reader

High Coercivity (HiCo), Low Coercivity (LoCo) - Triple Track - White

Part No. IDWA-336333

$569.99

Specifications

General Information

Manufacturer	ID TECH
Manufacturer Part Number	IDWA-336333
Brand Name	ID TECH
Product Line	EzWriter
Product Name	EzWriter Magnetic Stripe Reader
Marketing Information	Precision Writing on MagStripe Cards ID TECH EzWriterTM encodes, reads, & verifies three tracks of MagStripe data in a single swipe. A high resolution tachometer precisely locates encoding; the encoding quality exceeds ISO 7811 standards for new cards. Data density is selectable to 75 or 210 BPI for any track. High or low coercivity is software selectable. An LED provides operation status. Heavy Duty and Long Life Full-length guides & a deep card slot ensure accurate card alignment and registration. The low force design of EzWriter ensures a smooth and easy card swipe which provides an operating life for more than 1,000,000 card swipes. The die cast housing gives durability and maximum stability during reading and writing operations. WorkShop TM PC Software WorkshopTM is ID TECH's Windows based PC software utility. It includes all standard and many custom options for reading & writing to a MagStripe card. A single window shows the reading & writing format selections for each track. Default selections are available for simple & correct set-ups when encoding ISO, AAMVA or other formats. Database and file operations are supported. Convenient features such as track erasing, card data comparisons, and sequential data writing are included. The EzWriter communicates via an RS-232 or a USBRS232 serial COM port interface. Features and Benefits Reads and writes MagStripe cards, tickets, badges, and passbooks in a single swipe Reads & writes up to 3 tracks of information and any combination of 210 or 75 bpi densities EzWriter provides 1 million read & write operations minimum for heads, tachometer, & electronics WorkshopTM software is easy to use & guides the user quickly through the reading & writing processes Easily configures the unit to Hi or Low coercivity by changing a software setting only Die cast housing provides durability, stability and maximum life
Product Type	Magnetic Stripe Reader

Technical Information

Magnetic Stripe Coercivity	High Coercivity (HiCo) Low Coercivity (LoCo)
Magnetic Stripe Track Configuration	Triple Track
Magnetic Stripe Track Number	Track 1 Track 2 Track 3

Interfaces/Ports

USB	Yes

Power Description

Input Voltage	24 V DC

Physical Characteristics

Product Color	White
Height	2.64" (67 mm)
Width	2.52" (64 mm)
Length	8.03" (204 mm)
Weight (Approximate)	1.36 kg

Miscellaneous

Certifications & Standards	UL CE Class A FCC Class A
TAA Compliant	Yes
COO	US
Condition	No

Warranty

Limited Warranty	1 Year
