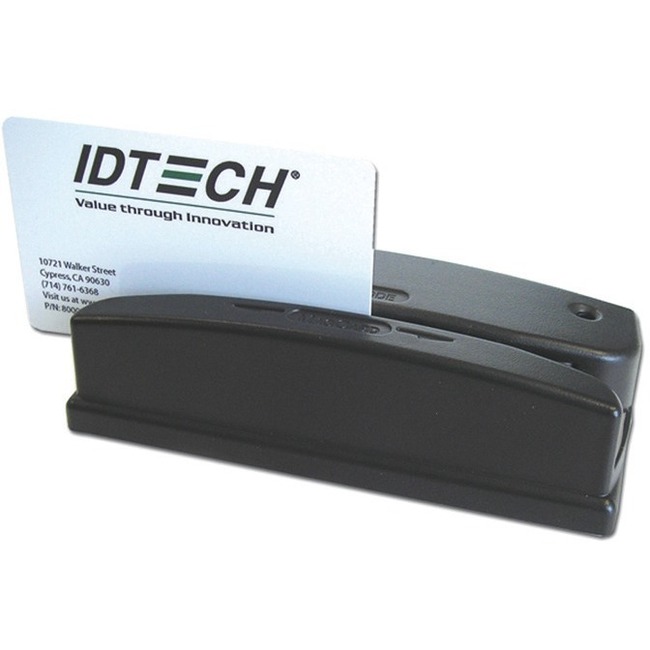

ID TECH Omni Barcode & MagStripe Reader (WCR32xx series)

Part No. WCR3237-700US

by ID TECH

ID TECH Omni Barcode & MagStripe Reader (WCR32xx series)

Triple Track - 1524 mm/s - Black

Part No. WCR3237-700US

by ID TECH

$131.99
General Information
ManufacturerID TECH
Manufacturer Part NumberWCR3237-700US
Brand NameID TECH
Product LineOmni
Product SeriesWCR32
Product NameOmni Barcode & MagStripe Reader (WCR32xx series)
Marketing Information

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three (varies by model) tracks of magnetic information with a single swipe in either direction.

Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Features:

  • Reads most linear bar codes symbologies and/or MagStripe Data
  • Available in three versions: MagStripe only, bar code only, or a combination of MagStripe and bar code
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions available
  • Red or infrared bar code reader option
Packaged Quantity1
Product TypeMagnetic Stripe Reader
Technical Information
Magnetic Stripe Track ConfigurationTriple Track
Magnetic Stripe Track Number
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed76.20 mm/s
Maximum Swipe Speed1524 mm/s
Magnetic Stripe Format
  • ISO 7811
  • AAMVA
Bi-directional ReadingYes
Interfaces/Ports
USBYes
Power Description
Input Voltage5 V DC
Physical Characteristics
Product ColorBlack
Height1.38" (35.05 mm)
Width2.05" (52.07 mm)
Length5" (127 mm)
Weight (Approximate)635 g
Warranty
Limited Warranty1 Year
