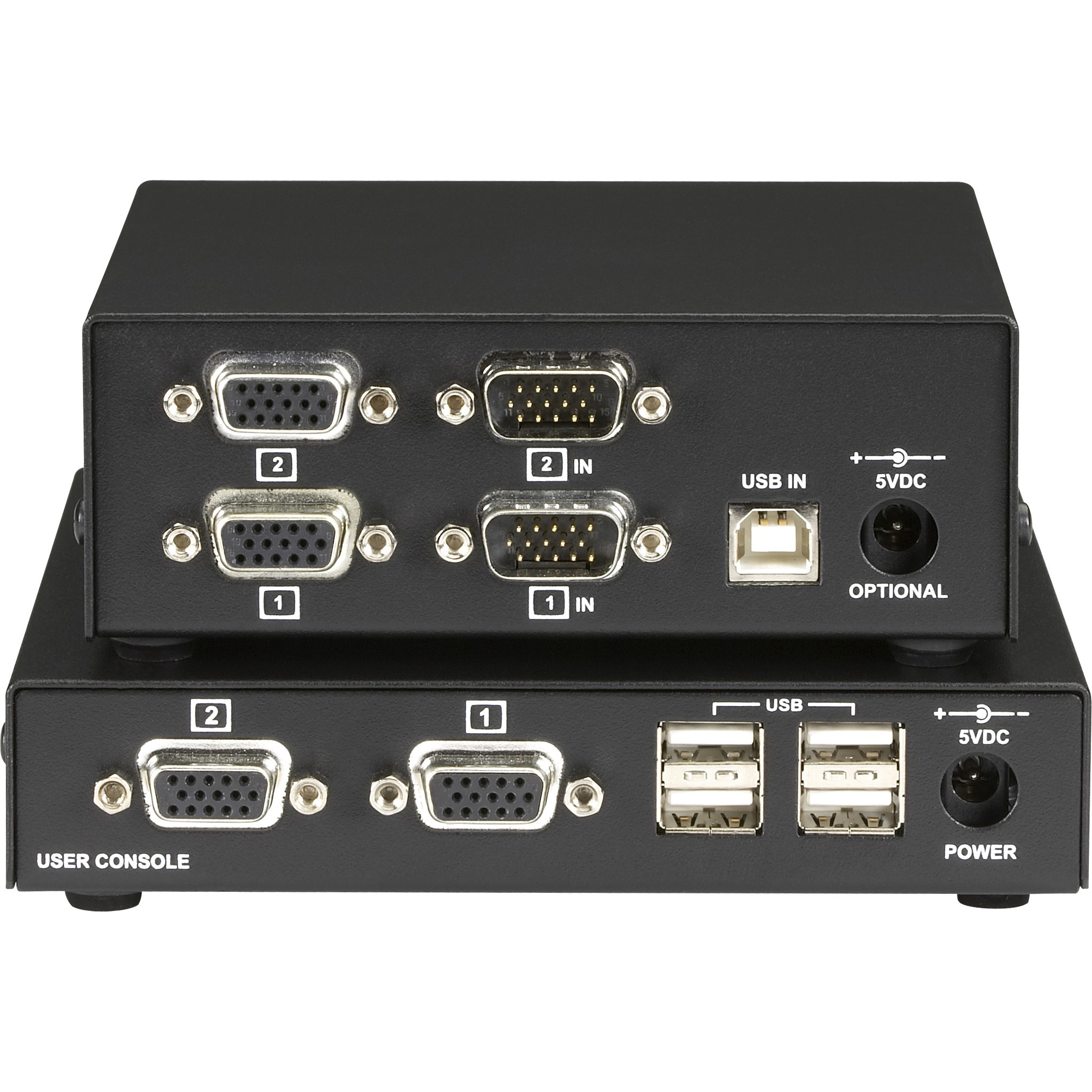

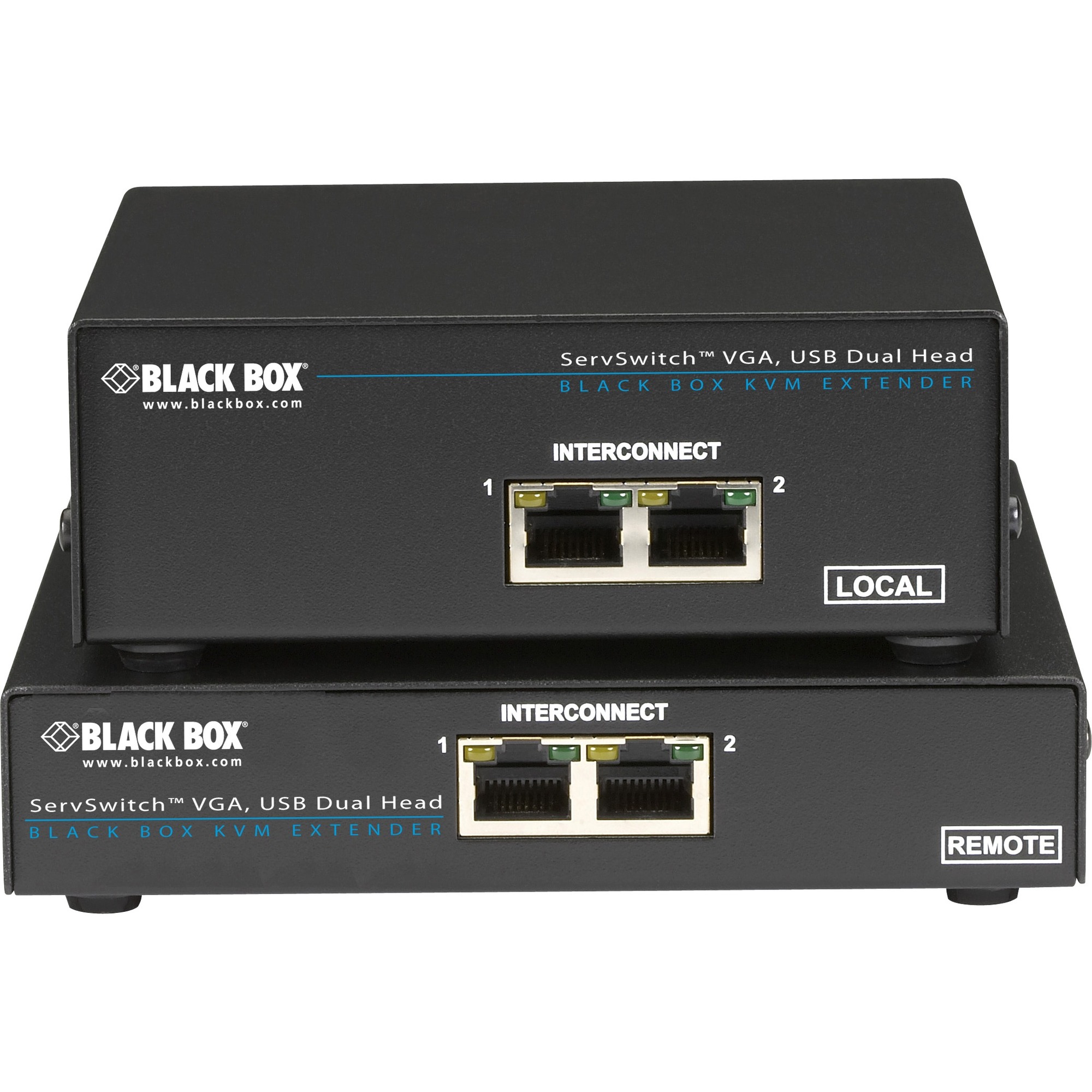

Black Box ServSwitch ACU6201A KVM Console/Extender
1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft (304800 mm) Range - UXGA - 1600 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 6 x VGA - 9 V DC, 9 V DC Input Voltage - Rack-mountable, Desktop - 1U
$1837.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU6201A |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Model | ACU6201A |
| Product Name | ServSwitch ACU6201A KVM Console/Extender |
| Marketing Information | SServSwitch ACU6201A KVM Console/Extender send VGA video and signals for USB keyboards, mice, and other human interface devices (HID) up to 1000 feet (300 m) over ordinary CAT5, CAT5e, or CAT6 cable. ServSwitch ACU6201A Console/Extender delivers crystal-clear video and features emulated DDC on the local unit to ensure compatibility with multihead graphics cards. The remote unit features transparent DDC, reading DDC tables from all attached monitors, then transferring and storing data in the local unit to support non-standard displays. |
| Product Type | KVM Console/Extender |
Technical Information
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 1000 ft (304800 mm) |
Video
| Graphic Mode | UXGA |
| Maximum Video Resolution | 1600 x 1200 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 6 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
Power Description
| Input Voltage | 9 V DC |
Physical Characteristics
| Rack Height | 1U |
| Form Factor |
|
| Transmitter Height | 4.90" (124.46 mm) |
| Transmitter Width | 4.50" (114.30 mm) |
| Transmitter Depth | 1.70" (43.18 mm) |
| Receiver Height | 5.70" (144.78 mm) |
| Receiver Width | 5.90" (149.86 mm) |
| Receiver Depth | 1.70" (43.18 mm) |
Miscellaneous
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| Condition | No |
| UPC | 822088002024 |
Warranty
| Limited Warranty | 1 Year |
