CyberPower PDU20BV32F 100 - 125 VAC 20A Basic

Part No. PDU20BV32F

by CyberPower Systems, Inc

$385.99

CyberPower PDU20BV32F 100 - 125 VAC 20A Basic

32 Outlets, 10 ft, NEMA 5-20P, Vertical, 0U, Lifetime Warranty

Part No. PDU20BV32F

by CyberPower Systems, Inc

$385.99

Specifications

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BV32F
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU20BV32F
Product Name	PDU20BV32F 100 - 125 VAC 20A Basic

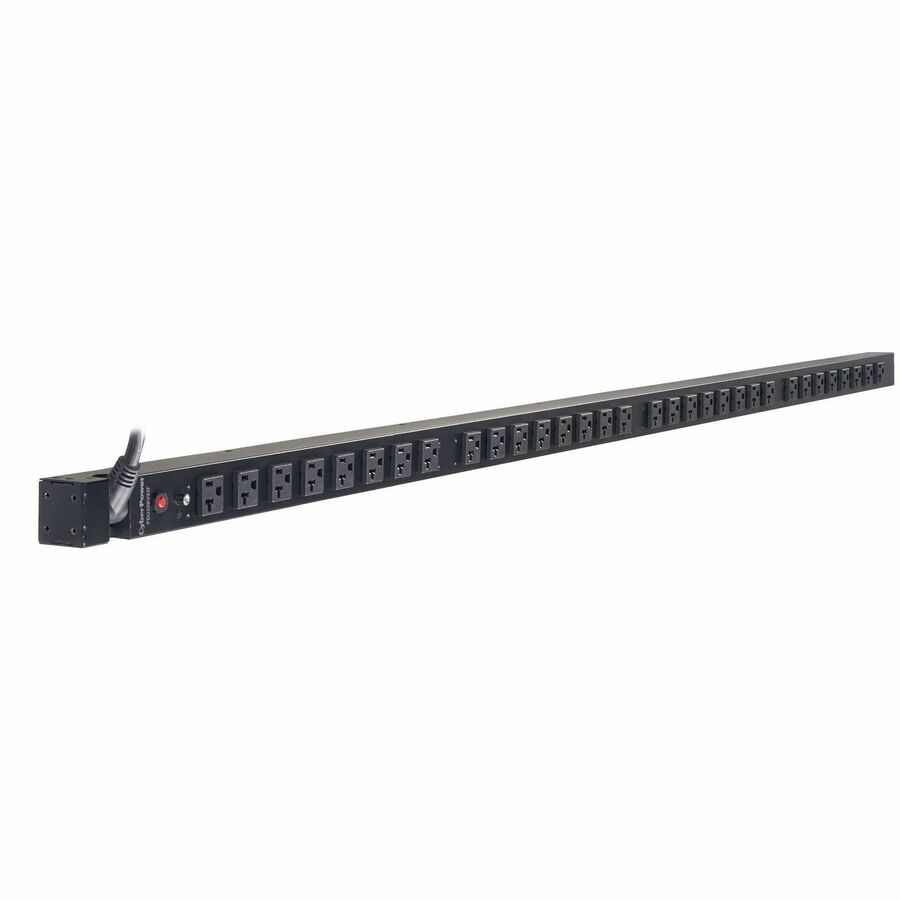

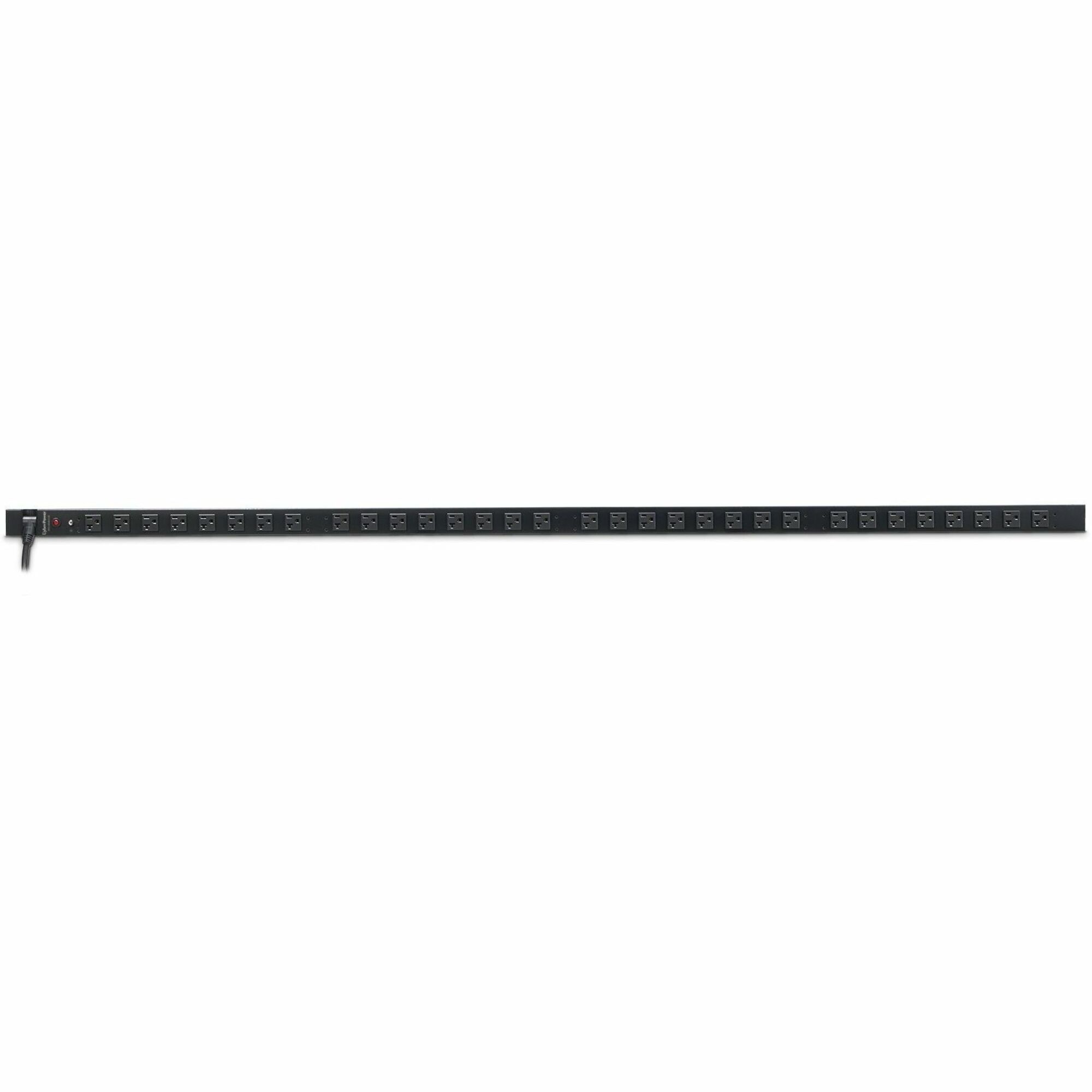

Marketing Information	The CyberPower PDU20BV32F, a 32-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 32 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BV32F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warrantycovers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	32 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 125 V AC
Input Current	20 A

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	70" (1778 mm)
Width	1.75" (44.45 mm)
Depth	1.50" (38.10 mm)
Weight (Approximate)	10 lb (4535.92 g)

Miscellaneous

Package Contents	PDU20BV32F 32-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 177.8 x 3.81 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 70 x 1.5 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 1778 x 38 (mm) Weight (kg) : 4.54 Weight (lb) : 10 Shipping Dimensions - (WxHxD) (cm) : 158.75 x 7.21 x 189.87 (cm) Shipping - Dimensions (WxHxD, in) : 62.5 x 2.84 x 74.75 (in) Shipping - Dimensions (WxHxD, mm) : 1587.5 x 72.14 x 1898.65 (mm) Shipping - Weight (kg) : 33.91 Shipping - Weight (lb) : 74.75 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-20P Maximum Input Current : 20A Plug Style : Straight Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 32 Outlets - Rear : 0 Outlets - Total : 32 Outlet Type COMPUTED : 32 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532902057

Warranty

Limited Warranty	Lifetime
