CyberPower PDU15B6F12R 100 - 125 VAC 15A Basic

Part No. PDU15B6F12R

by CyberPower Systems, Inc

$190.99

CyberPower PDU15B6F12R 100 - 125 VAC 15A Basic

18 Outlets, 15 ft, NEMA 5-15P, Horizontal, 1U, Lifetime Warranty

Part No. PDU15B6F12R

by CyberPower Systems, Inc

$190.99

Specifications

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU15B6F12R
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU15B6F12R
Product Name	PDU15B6F12R 100 - 125 VAC 15A Basic
Marketing Information	The CyberPower PDU15B6F12R, an 18-outlet (6 front, 12 rear) rackmount basic power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 18 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B6F12R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	18 x NEMA 5-15R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 125 V AC
Input Current	15 A

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U

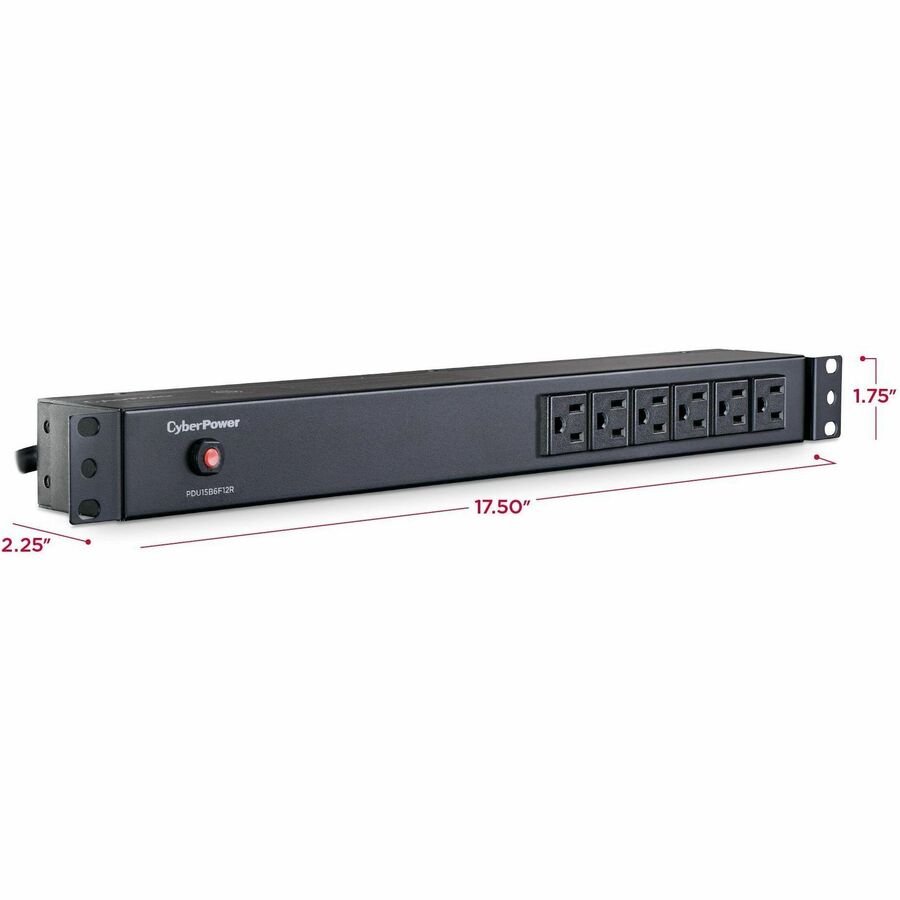

Height	1.75" (44.45 mm)
Width	17.50" (444.50 mm)
Depth	2.25" (57.15 mm)
Weight (Approximate)	3.70 lb (1678.29 g)

Miscellaneous

Package Contents	PDU15B6F12R 18-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Additional Information	Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 1.68 Weight (lb) : 3.7 Shipping Dimensions - (WxHxD) (cm) : 17.93 x 6.35 x 46.99 (cm) Shipping - Dimensions (WxHxD, in) : 7.06 x 2.5 x 18.5 (in) Shipping - Dimensions (WxHxD, mm) : 179.32 x 63.5 x 469.9 (mm) Shipping - Weight (kg) : 9.41 Shipping - Weight (lb) : 20.75 Cord Length : 15 ft (4.6 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Plug Style : Straight Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 6 Outlets - Rear : 12 Outlets - Total : 18 Outlet Type COMPUTED : 18 - NEMA 5-15R Overload Protection : 15A USB Charge Port : No Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Energy Star	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532901548

Warranty

Limited Warranty	Lifetime
