CyberPower PDU15M2F10R 100 - 125 VAC 15A Metered
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU15M2F10R |
| Brand Name | CyberPower |
| Product Series | Metered PDU |
| Product Model | PDU15M2F10R |
| Product Name | PDU15M2F10R 100 - 125 VAC 15A Metered |

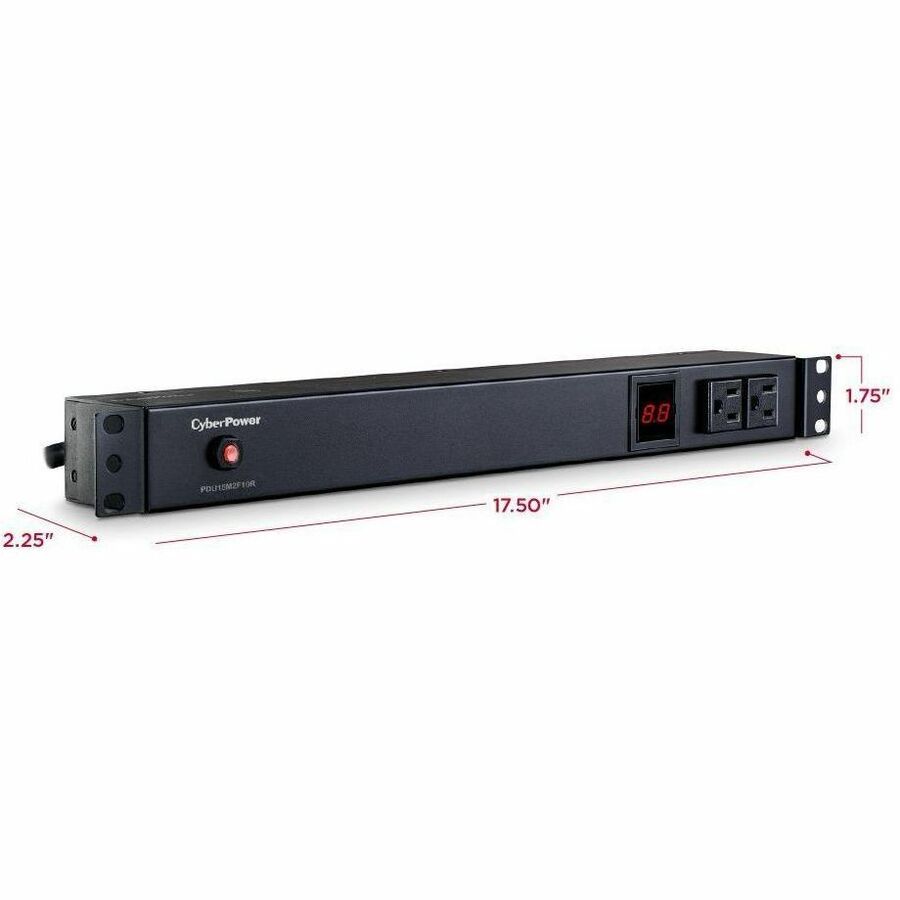

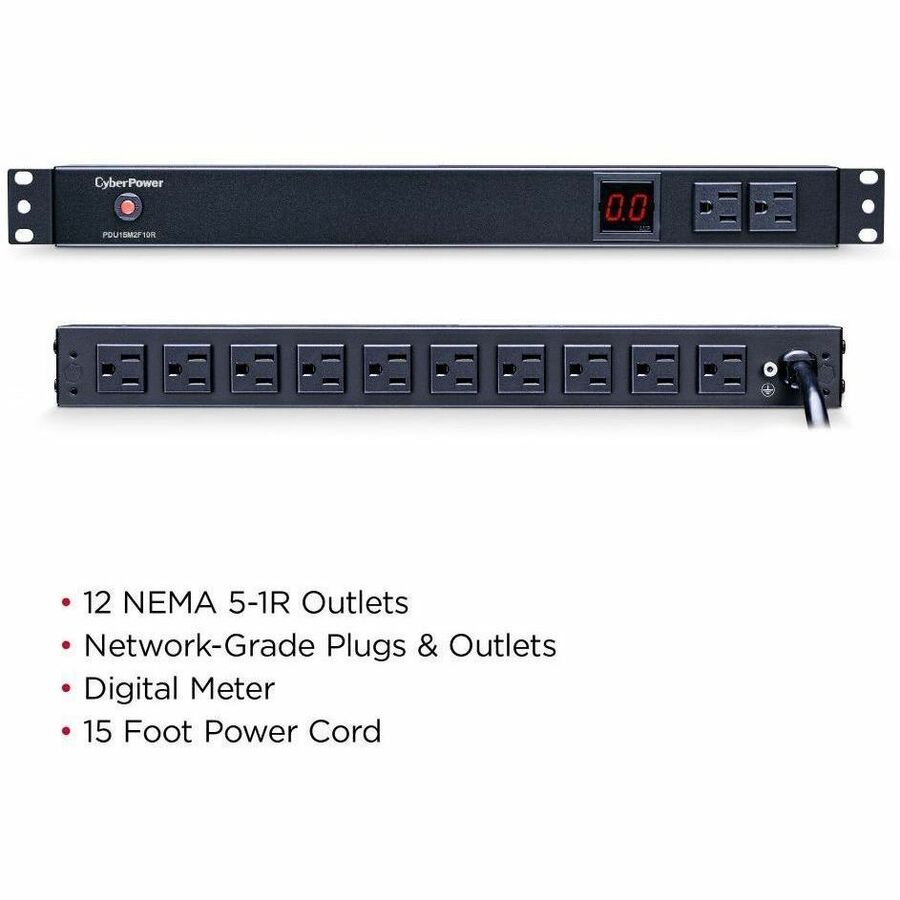

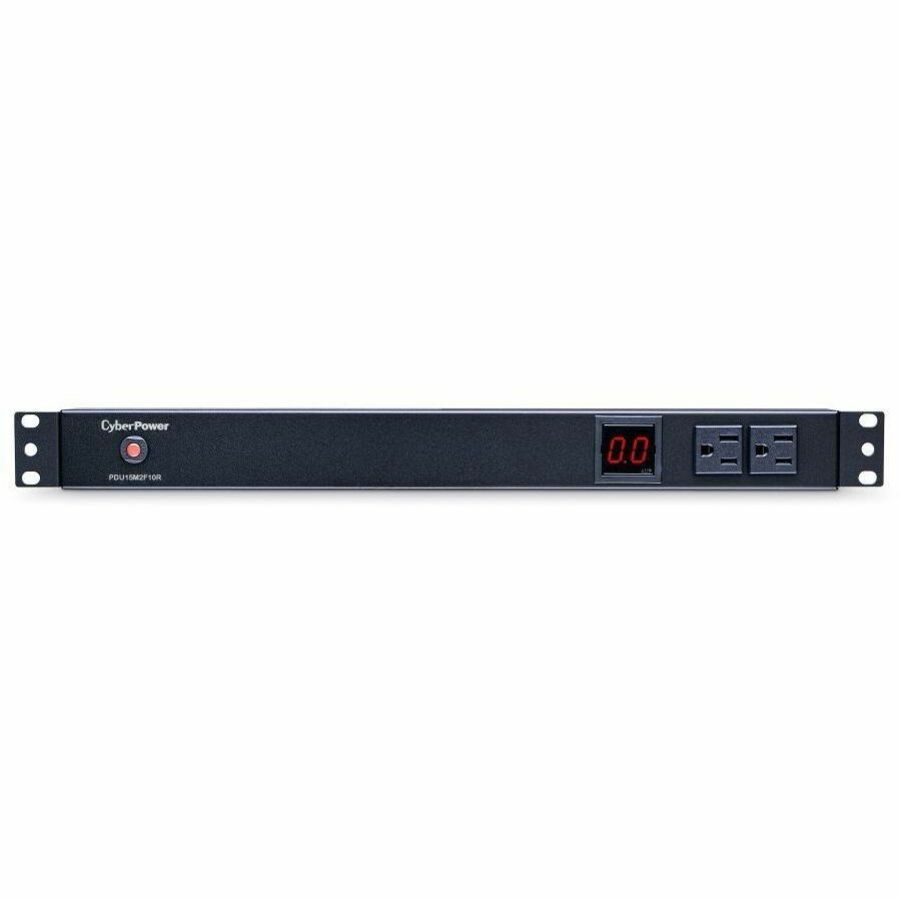

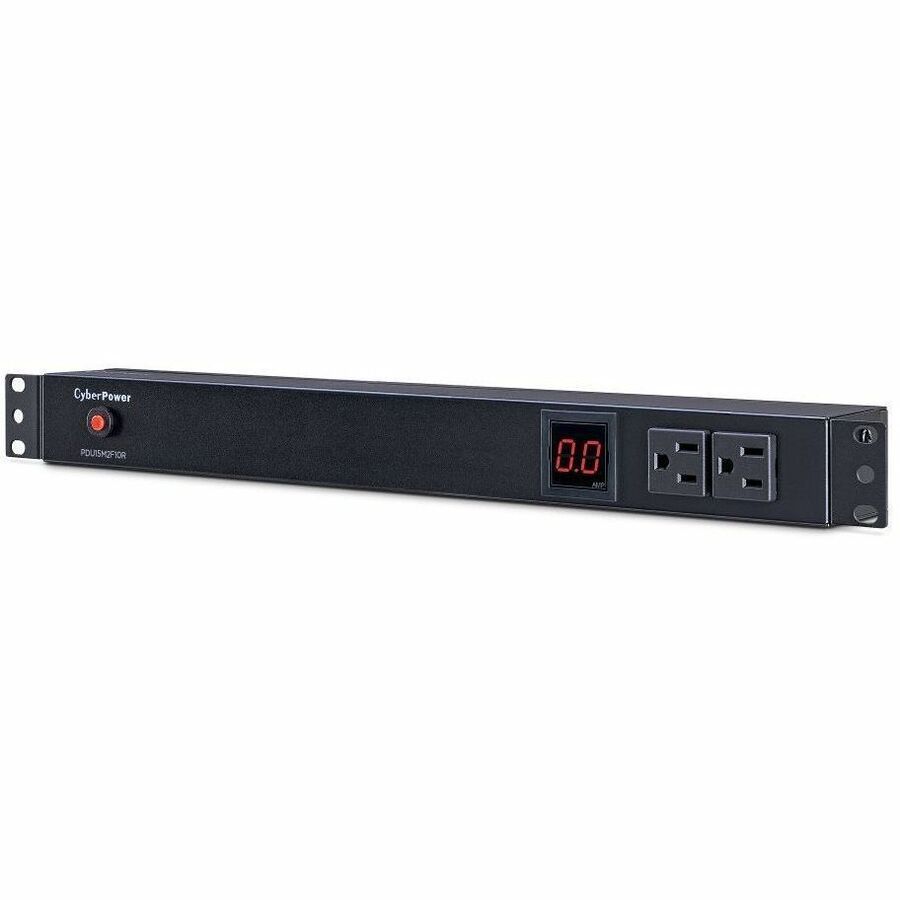

| Marketing Information | The CyberPower PDU15M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, the PDU15M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 15 A |
| Input Frequency | 60 Hz |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 15 ft (4.57 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 4 lb (1814.37 g) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL62368 |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532901050 |
| Limited Warranty | Lifetime |
