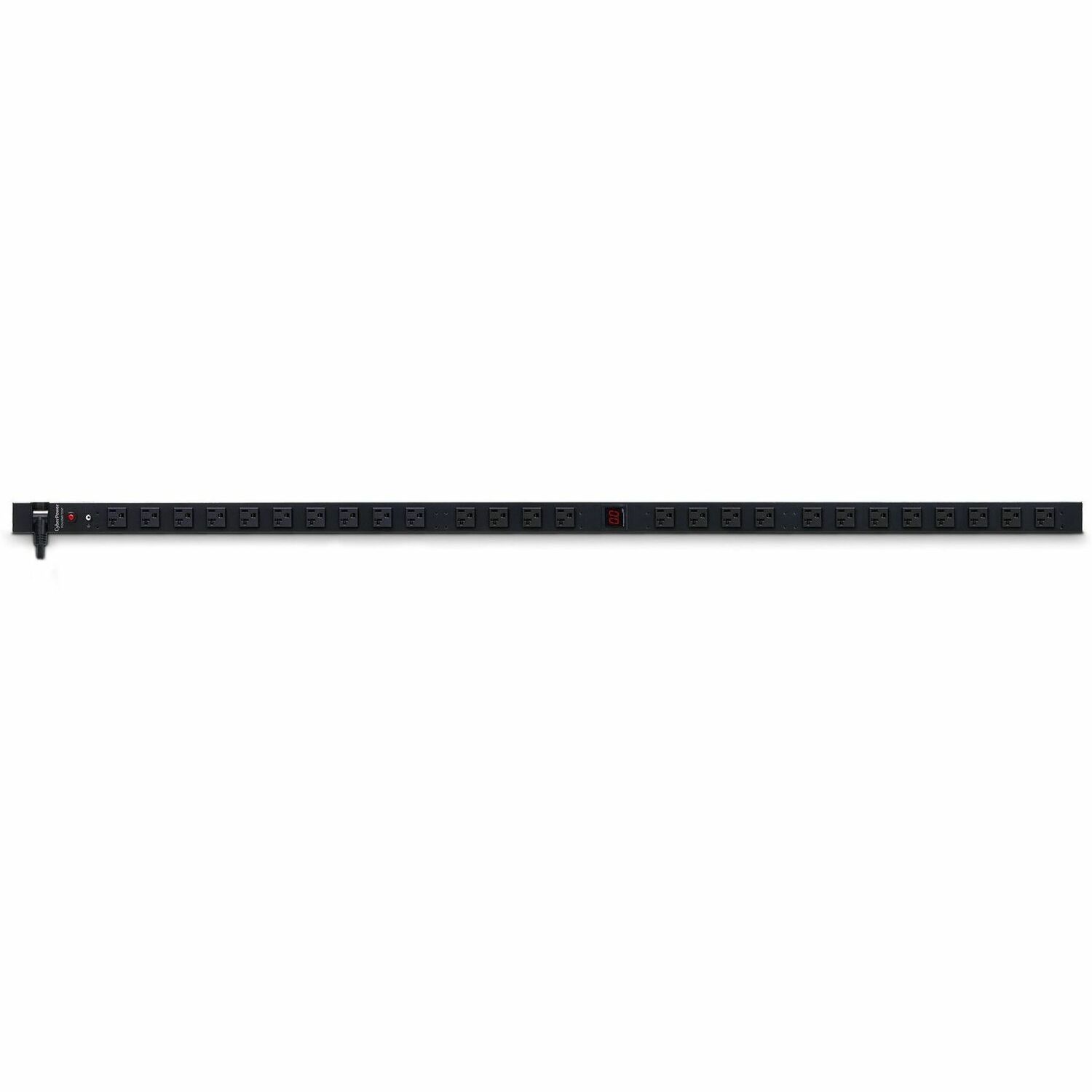

CyberPower Metered PDU20MVT26F 26-Outlets PDU
NEMA L5-20P - 26 x NEMA 5-20R - 120 V AC - Vertical - Rack-mountable
$262.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20MVT26F |
| Brand Name | CyberPower |
| Product Model | PDU20MVT26F |
| Product Name | Metered PDU20MVT26F 26-Outlets PDU |
| Marketing Information | The CyberPower Metered PDU20MVT26F 26-Outlets PDU provides 120V 20A output. It distributes power to 26 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship. |
| Product Type | PDU |
Technical Information
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 26 x NEMA 5-20R |
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 60" (1524 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 10.26 lb (4653.86 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532901241 |
Warranty
| Limited Warranty | Lifetime |
