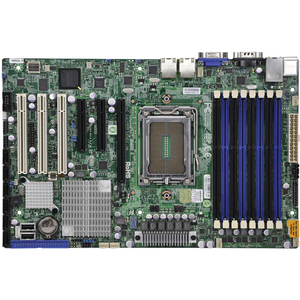

Supermicro H8SGL Server Motherboard - AMD SR5650 Chipset - Socket G34 LGA-1944 - ATX
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-H8SGL-O |
| Brand Name | Supermicro |
| Product Model | H8SGL |
| Product Name | H8SGL Server Motherboard |
| Marketing Information | The H8SGL(-F) serverboard is based on the AMD SR5650/SP5100 chipset and supports one AMD Socket G34 type processor with up to 128 GB of DDR3- 1333/1066/800 registered ECC SDRAM or 32 GB of DDR3-1333/1066/800 MHz unbuffered ECC/non-ECC SDRAM. The H8SGL serverboard does not have IPMI capability, whereas the H8SGL-F serverboard does. |
| Package Type | Retail |
| Product Type | Server Motherboard |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Model | SR5650 |
| Total Processor Supported | 1 |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Supported |
|
Memory
| Number of Memory Slots | 8 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported |
|
| Memory Standard |
|
| Memory Technology | DDR3 SDRAM |
I/O Controller
| Controller Type |
|
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | G200 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| VGA | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 2 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 8" (203.20 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
