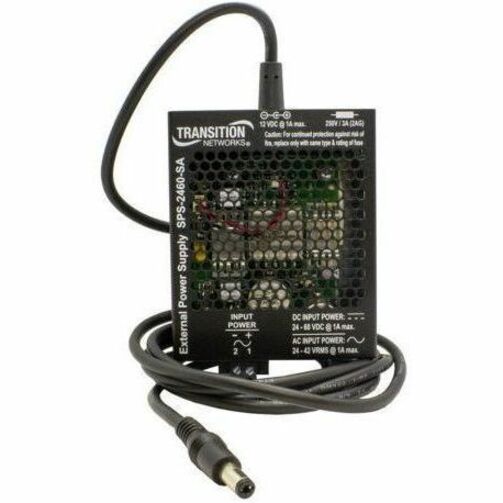

Transition Networks SPS-2460-SA Proprietary Power Supply
Standalone - 12.25 V DC Output - 12 W - 80% Efficiency
$276.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SPS2460SA |
| Brand Name | Transition Networks |
| Product Model | SPS-2460-SA |
| Product Name | SPS-2460-SA Proprietary Power Supply |
| Marketing Information | Multiple form factors allow flexibility to meet your application. The stand-alone form factor can be used with all Lantronix' stand-alone media converters. The piggy back form factor allows the power supply to attach directly to the converter and eliminate the power cable commonly found between the power supply and the converter. Once the piggy back supply is attached to the converter, the combined assembly is much easier to wall mount or attach to DIN Rail environments than using a separate supply. NDAA Compliant, TAA Compliant |
| Product Type | Proprietary Power Supply |
Technical Information
| Efficiency | 80% |
| Protection Type |
|
Reliability
| MTBF | 250000 Hour |
Power Description
| Input Voltage Type | DC |
| Input Voltage Range | 24 V DC - 60 V DC |
| Output Voltage | 12.25 V DC |
| Output Current | 1 A |
| Output Power | 12 W |
Environmental Conditions
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 149°F (65°C) |
Physical Characteristics
| Form Factor | Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.75" (95.25 mm) |
| Depth | 3.10" (78.74 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
Miscellaneous
| Compatibility | Transition Networks Stand-alone Media Converters |
| Certifications & Standards | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 0648177028931 |
Warranty
| Limited Warranty | Lifetime |
