CyberPower PDU30BVT28F 100 - 125 VAC 30A Basic
28 Outlets, 10 ft, NEMA L5-30P, Vertical, 0U, Lifetime Warranty
$502.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BVT28F |
| Brand Name | CyberPower |
| Product Model | PDU30BVT28F |
| Product Name | PDU30BVT28F 100 - 125 VAC 30A Basic |

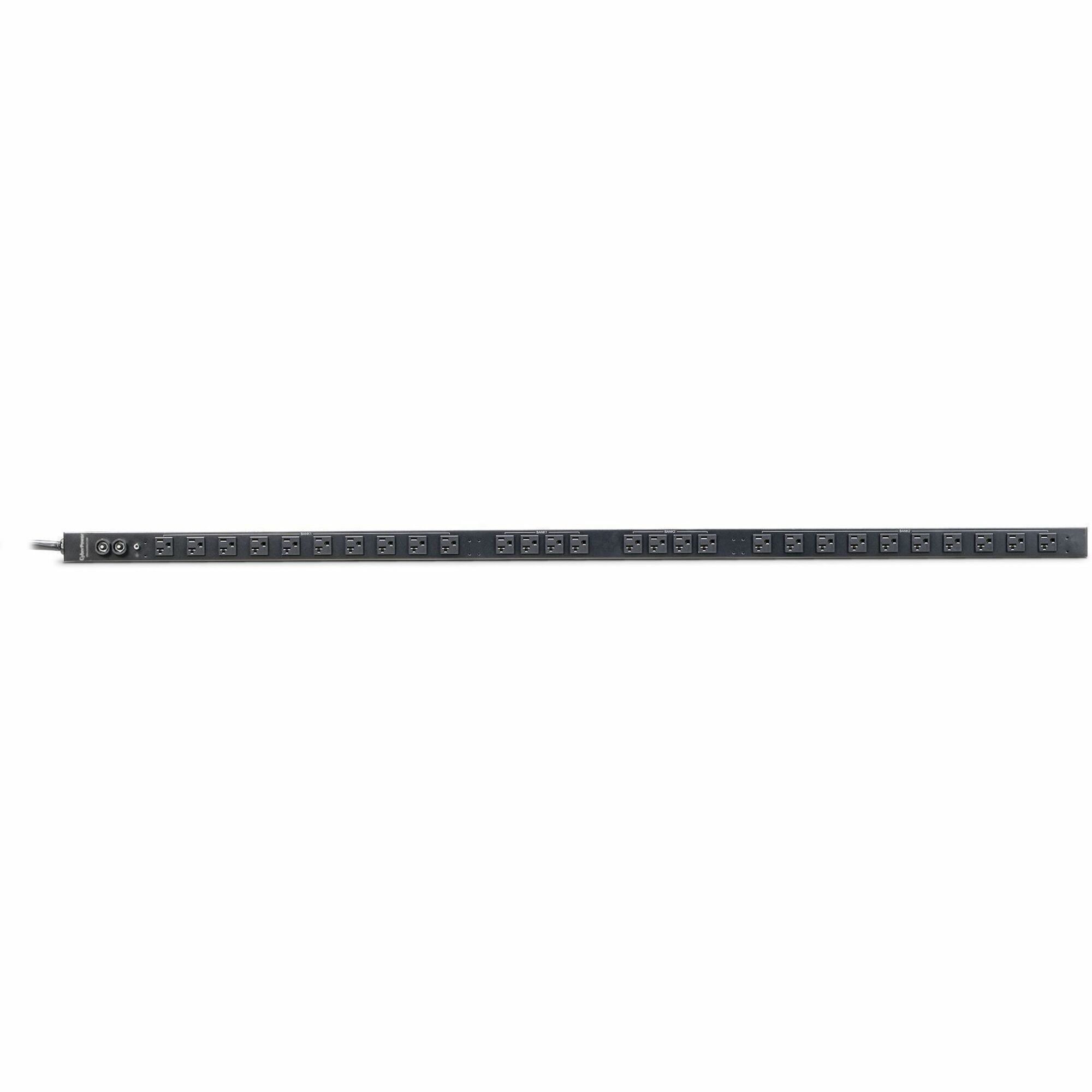

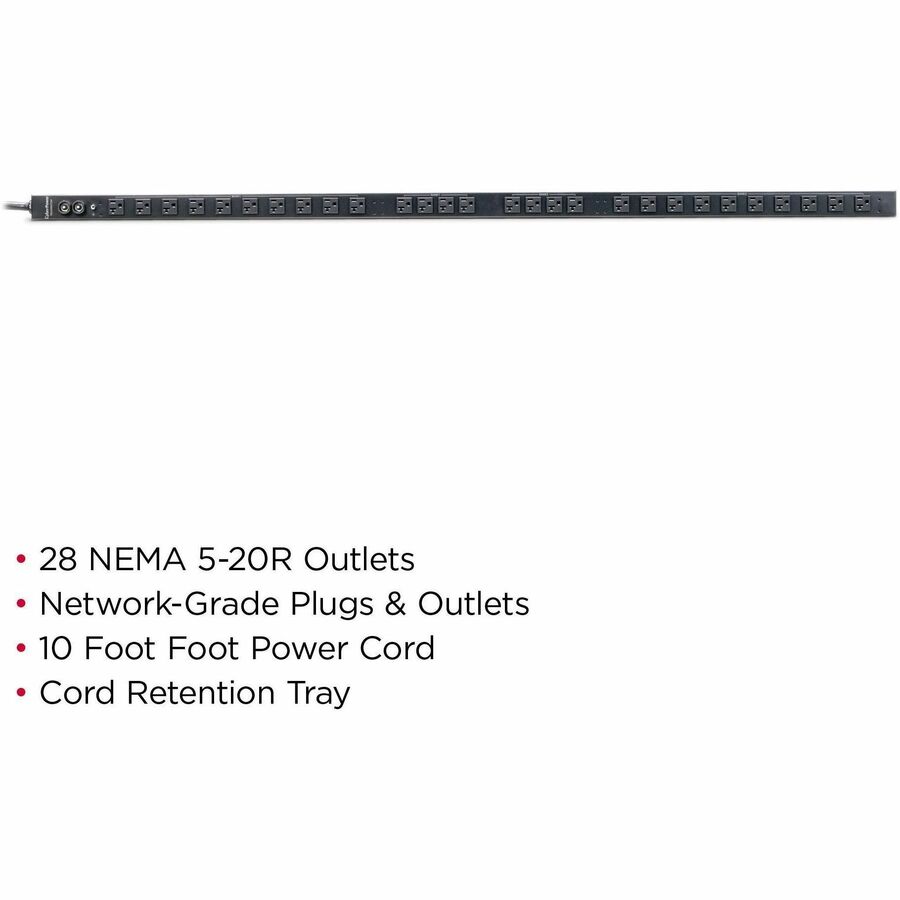

| Marketing Information | The CyberPower PDU30BVT28F, a 28-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 – 125 V 30A output. It distributes power to 28 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BVT28F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU30BVT28F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
Technical Information
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 28 x NEMA 5-20R |
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
Physical Characteristics
| Mounting Orientation | Horizontal/Vertical |
| Mount Type |
|

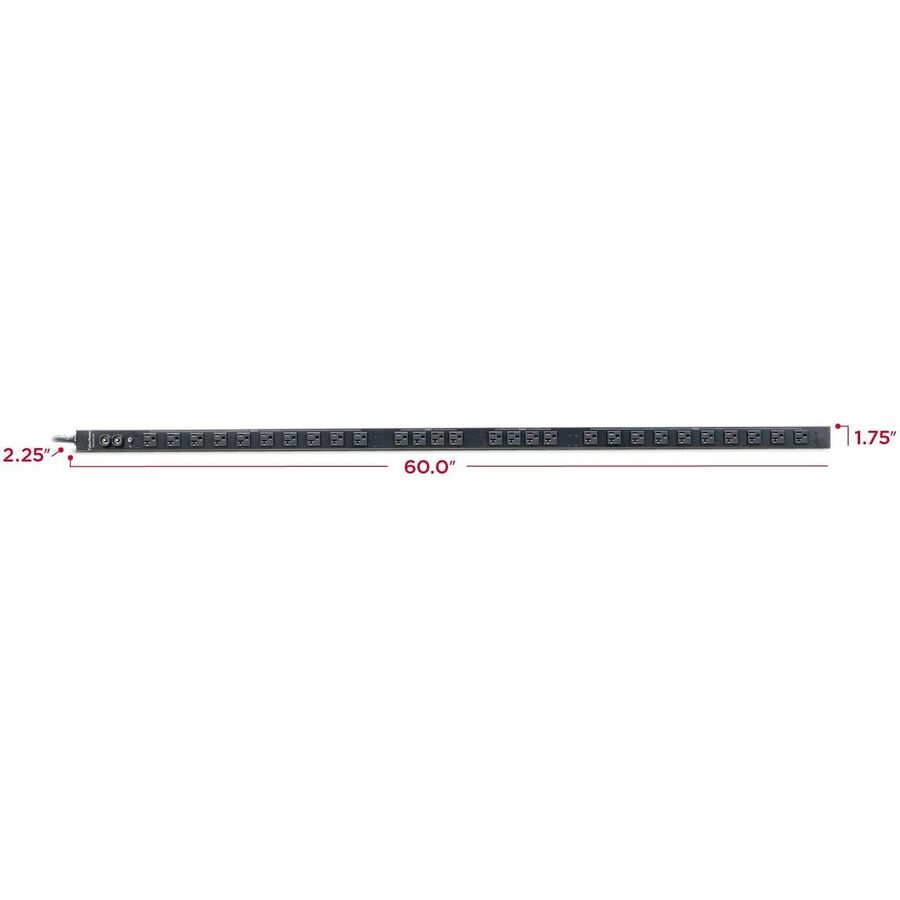

| Height | 60" (1524 mm) |
| Width | 1.75" (44.45 mm) |
| Length | 2.25" (57.15 mm) |
| Weight (Approximate) | 10.70 lb (4853.44 g) |
Miscellaneous
| Package Contents |
|
| Additional Information | |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532901296 |
Warranty
| Limited Warranty | Lifetime |
