CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered
24 Outlets, 10 ft, NEMA L5-30P, Vertical, 0U, Lifetime Warranty
$584.99
On back-order, will ship once in-stock
- All Locations: (0+)
- Vancouver, BC (1+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30MVT24F |
| Brand Name | CyberPower |
| Product Series | Metered PDU |
| Product Model | PDU30MVT24F |
| Product Name | PDU30MVT24F 100 - 125 VAC 30A Metered |
| Marketing Information | The CyberPower PDU30MVT24F, a 24-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 – 125 V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. |
| Product Type | PDU |
Technical Information

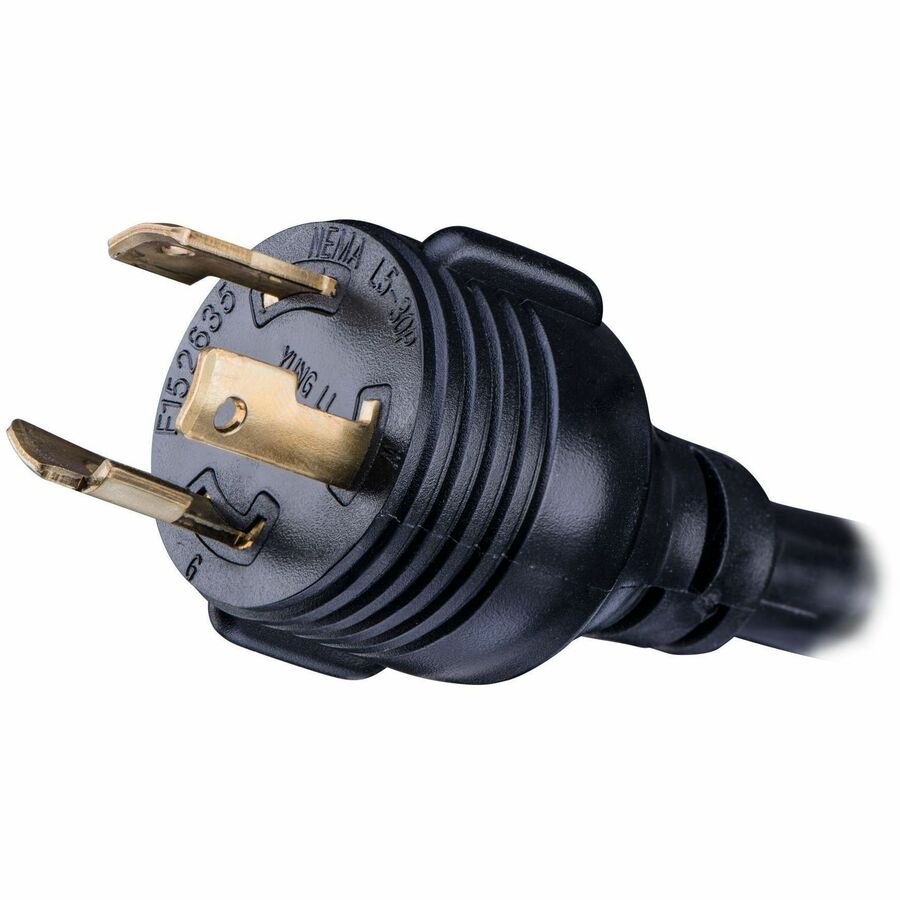

| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Wall-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 60" (1524 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 11.40 lb (5170.95 g) |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
Miscellaneous
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL62368 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532901388 |
Warranty
| Limited Warranty | Lifetime |
