APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 120V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime
In Stock Availability
- All Locations: (14+)
- Mississauga, ON (4+)
- Toronto, ON (9+)
- Vancouver, BC (1+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2200RMLV2U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | X |
| Product Model | SMX2200RMLV2U |
| Product Name | Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS |
| Marketing Information | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail |
|

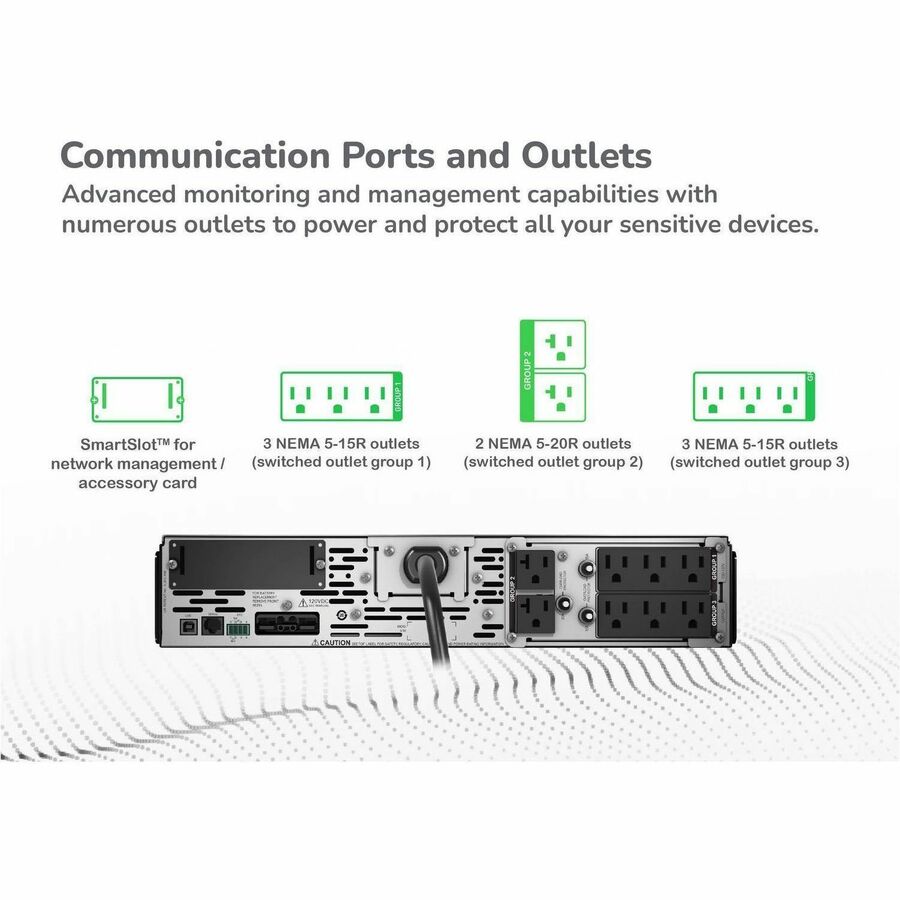

| Number of Battery & Surge Outlets | 8 |
| Emergency Power OFF | Yes |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Serial Port | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |

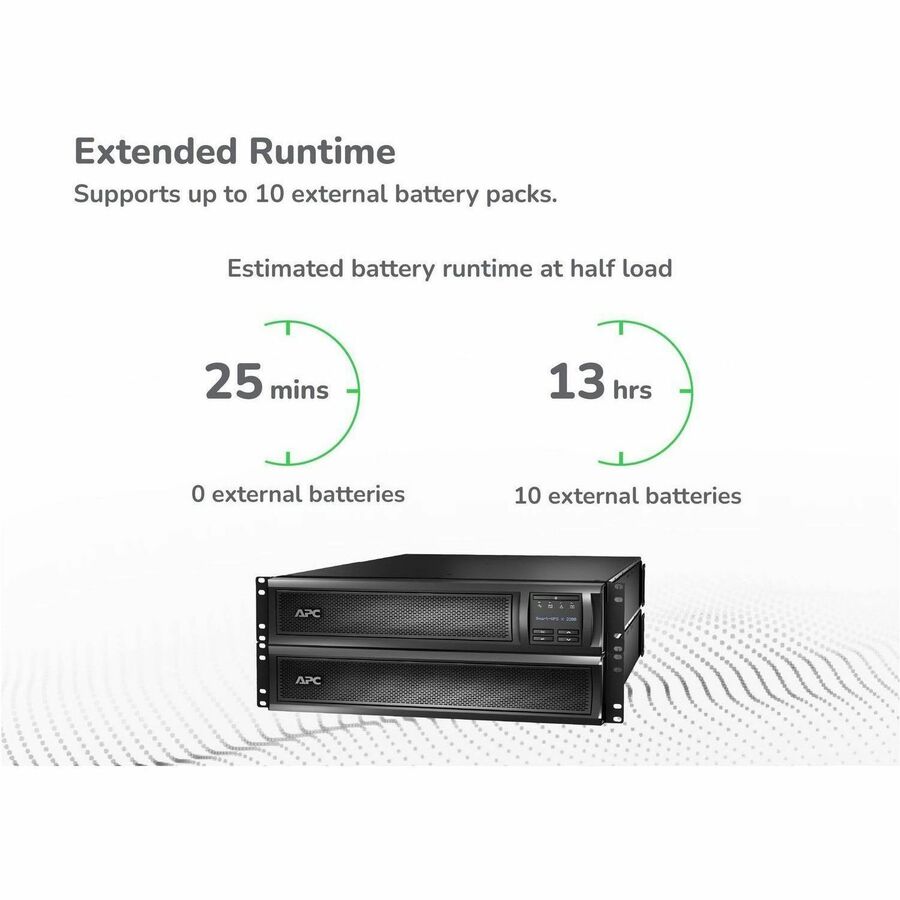

| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 25 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17" (431.80 mm) |
| Depth | 26.26" (667 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 84.77 lb (38451.03 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | BSMI|CSA|NOM|TÜV|VCCI Class A |

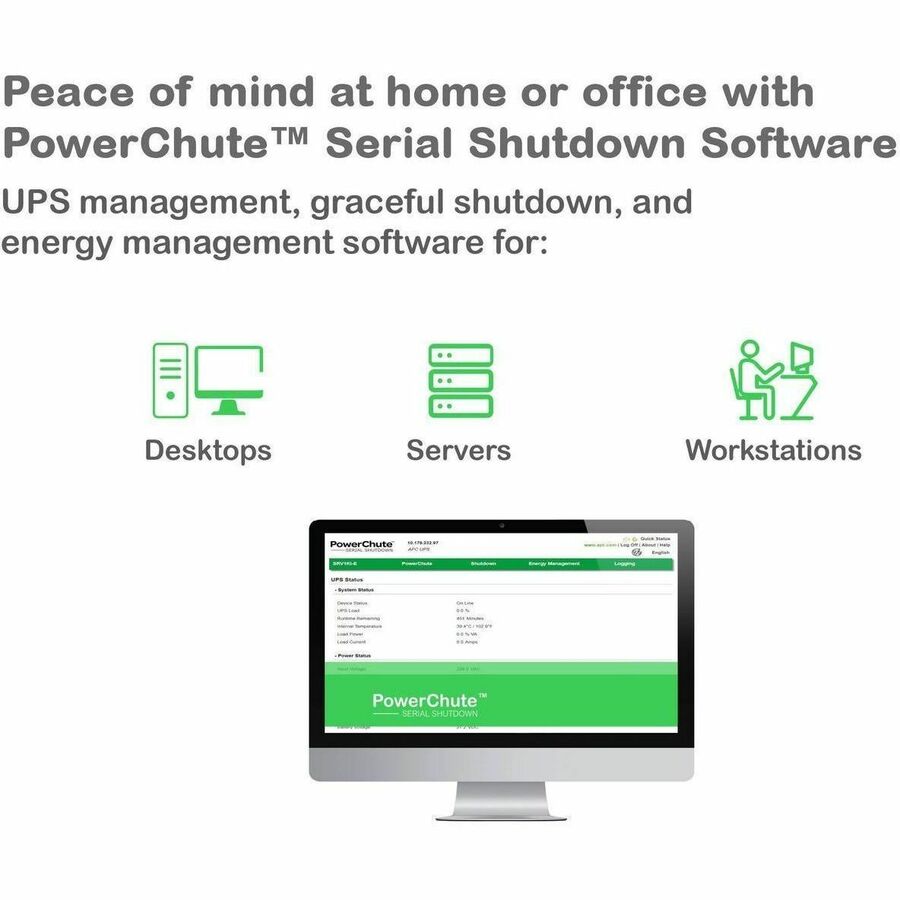

| Software Included | Powerchute Serial Edition |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2200RMLV2U_ROHS_DECLARATION&p_FileName=SMX2200RMLV2UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035424&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035424&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304268567 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
