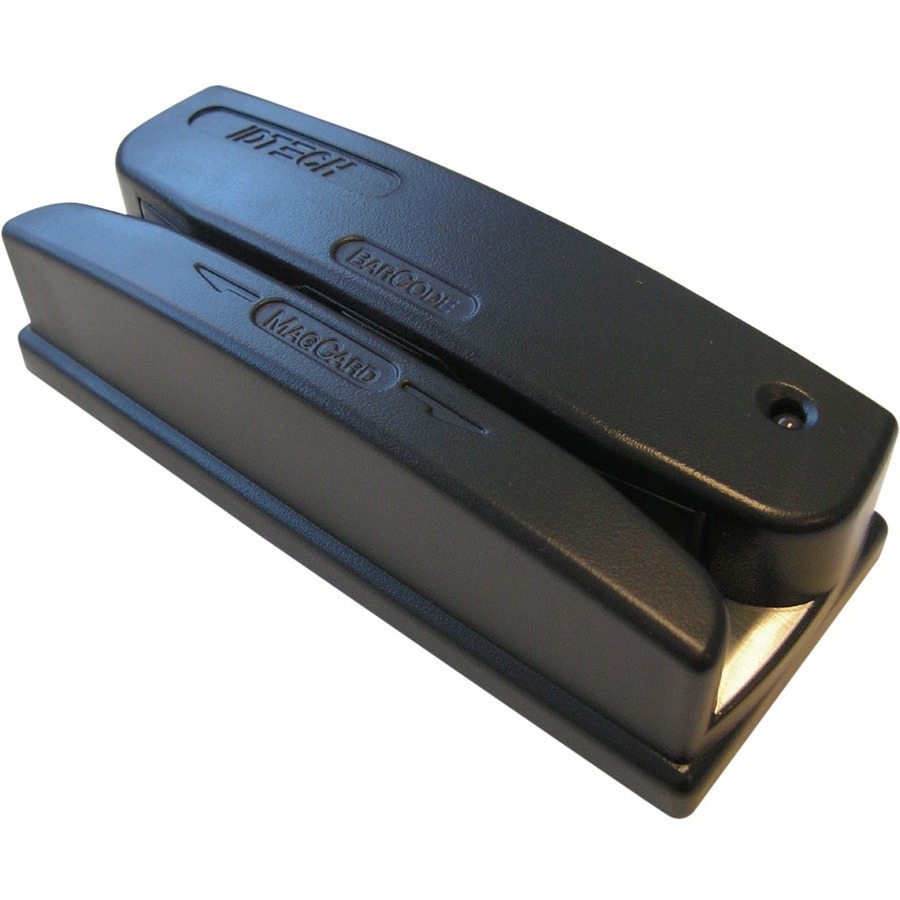

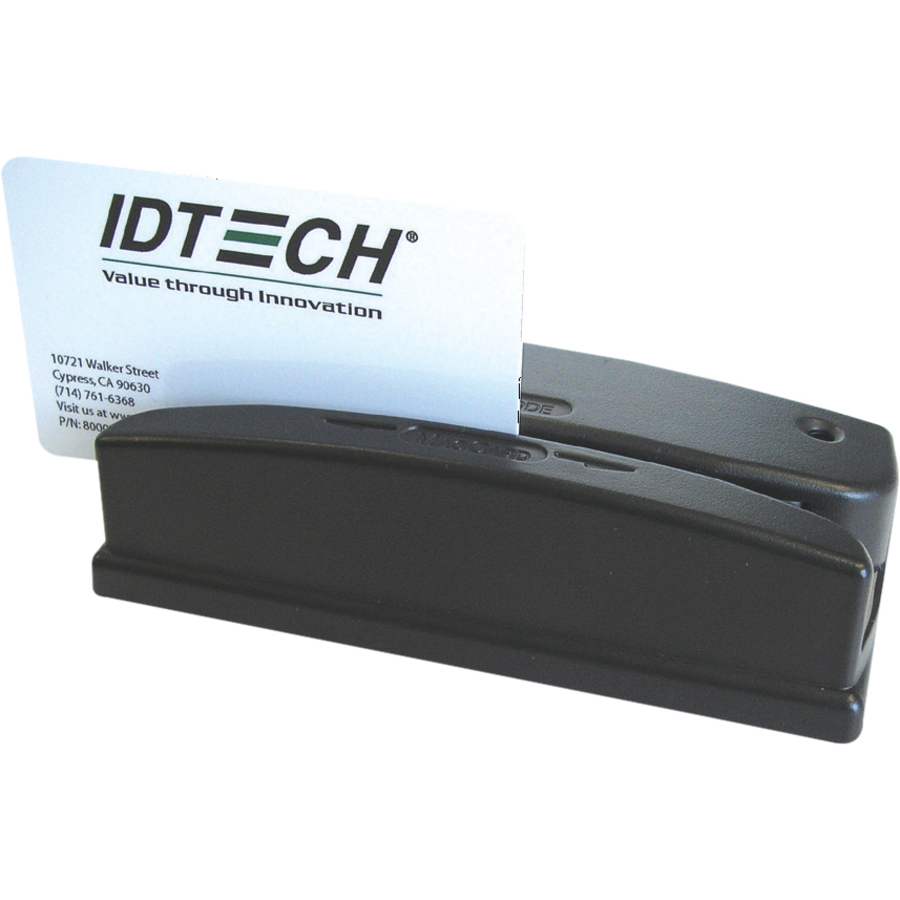

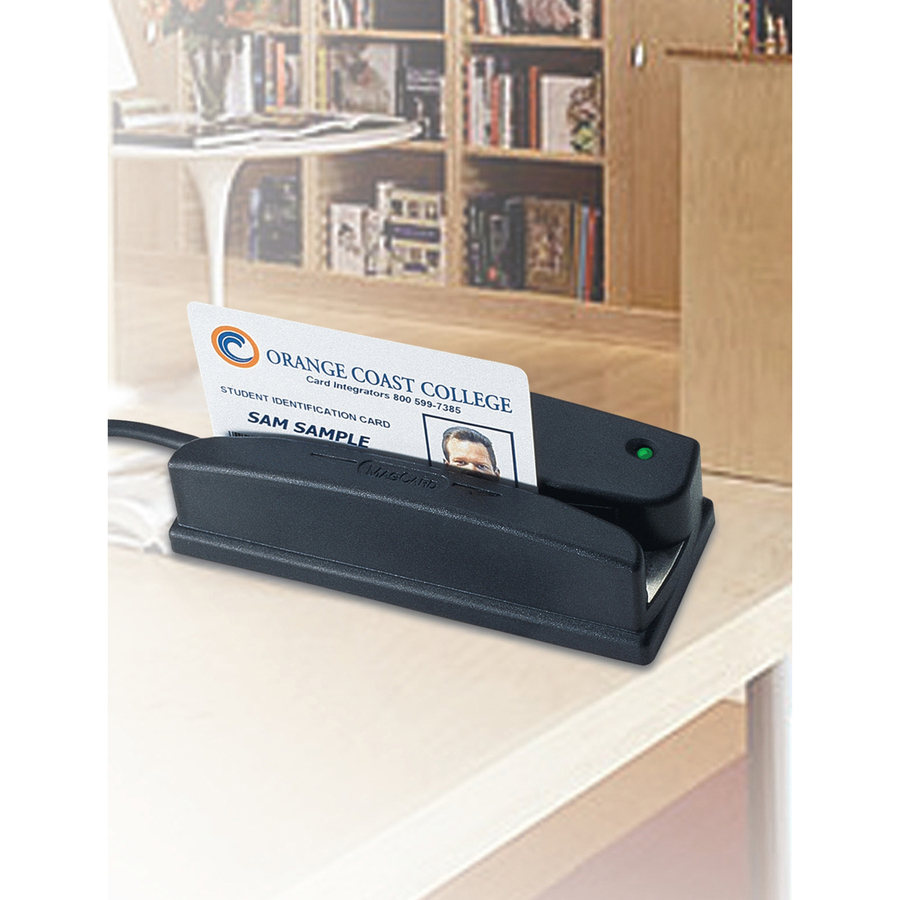

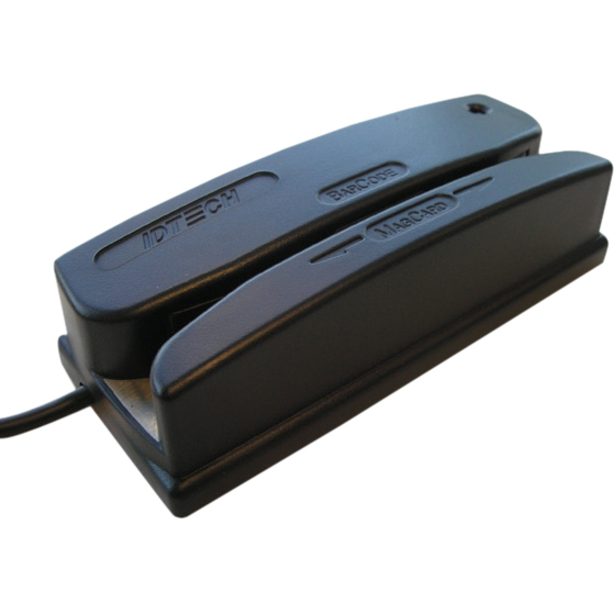

ID TECH Omni WCR32 Magnetic Stripe Reader
Triple Track - 60 in/s (1524 mm/s) - Wiegand - Black
$174.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ID TECH |
| Manufacturer Part Number | WCR3297-700 |
| Brand Name | ID TECH |
| Product Line | Omni |
| Product Series | WCR32 |
| Product Model | WCR3297-700 |
| Product Name | Omni WCR32 Magnetic Stripe Reader |
| Marketing Information | The Omni WCR32 Magnetic Stripe Reader is originally designed for the demanding access control and time and attendance markets. Its die cast metal base, stainless steel wear plate, and impact resistant housing make it ideal for the growing market of self service and unattended applications. It reads up to three tracks of magnetic information with a single swipe in either direction. |
| Product Type | Magnetic Stripe Reader |
Technical Information
| Magnetic Stripe Track Configuration | Triple Track |
| Magnetic Stripe Track Number |
|
| Minimum Swipe Speed | 76.20 mm/s |
| Maximum Swipe Speed | 1524 mm/s |
| Number of Swipes (Head Life) | 1000000 |
Interfaces/Ports
| Wiegand | Yes |
Power Description
| Input Voltage | 5 V DC |
Physical Characteristics
| Product Color | Black |
| Height | 1.38" (35.05 mm) |
| Width | 2.05" (52.07 mm) |
| Length | 5" (127 mm) |
| Weight (Approximate) | 635 g |
Miscellaneous
| Additional Information |
|
| COO | US |
| Condition | No |
