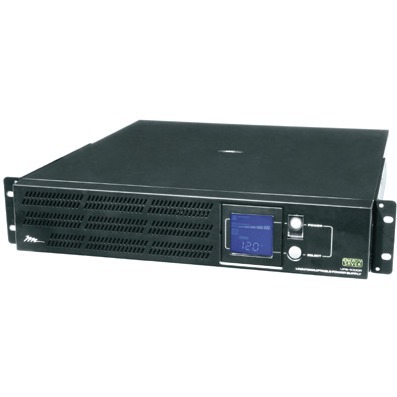

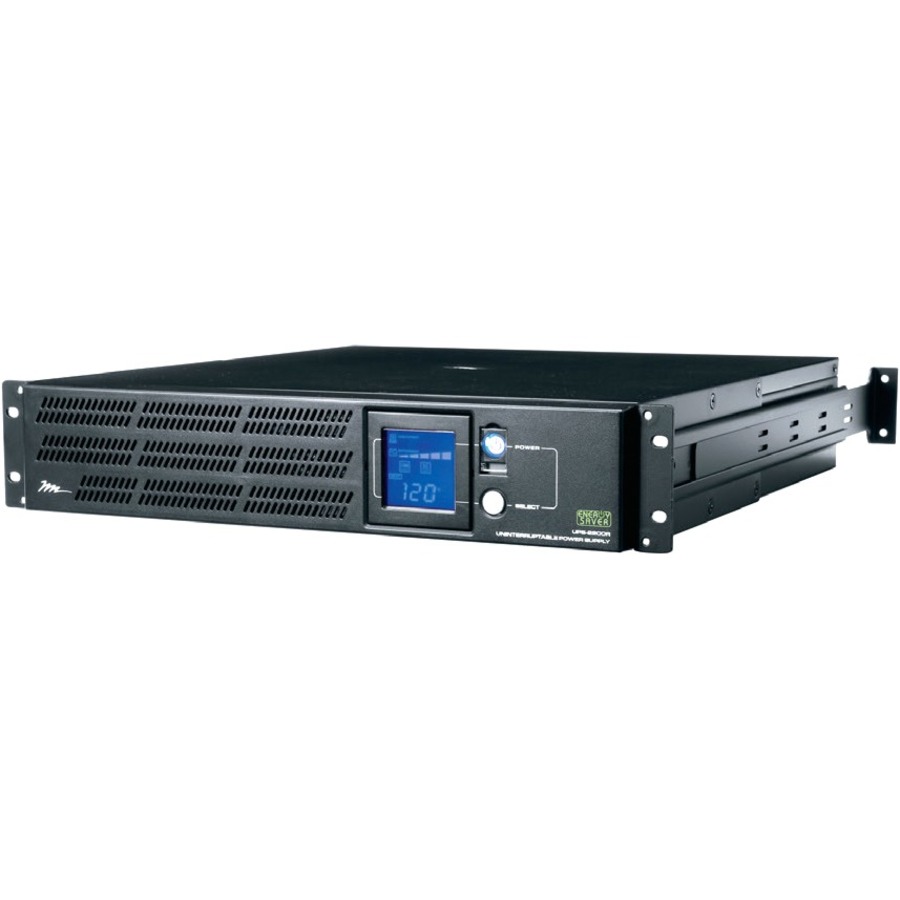

Middle Atlantic Premium UPS-1000R-8IP 1000VA Rack-mountable UPS

Part No. UPS-1000R-8IP

by Legrand Group

Middle Atlantic Premium UPS-1000R-8IP 1000VA Rack-mountable UPS

2U Rack-mountable - AVR - 13 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R

Part No. UPS-1000R-8IP

by Legrand Group

$2260.99
General Information
ManufacturerLegrand Group
Manufacturer Part NumberUPS-1000R-8IP
Brand NameMiddle Atlantic
Product LinePremium
Product ModelUPS-1000R-8IP
Product NamePremium UPS-1000R-8IP 1000VA Rack-mountable UPS
Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Dataline Protection
  • RJ-11
  • RJ-45
Overload ProtectionYes
Transfer Time4 ms
Application/UsageCritical System
Power Description
Load Capacity1 kVA/750 W
Input Voltage120 V AC
Input Voltage Range80 V AC - 145 V AC
Output Voltage120 V AC
Input Frequency60 Hz
Output Frequency63 Hz
Waveform TypePure Sine Wave
Surge Energy Rating381 J
Utility (AC) Mode Overload
  • 100%< Load< 110% warning, 120 sec shutdown
  • 110%< Load< 125% warning, 40 sec shutdown
  • 125%< Load warning, 10 sec shutdown
Management
Network ManagementSNMP/HTTP Remote Monitoring
Alarm
  • On Battery
  • Low Battery
Controls/Indicators
Status IndicatorsLCD Display Indicators:
  • Power On
Interfaces/Ports
Serial PortYes
Network (RJ-45)Yes
USB (HID Compliant) PortYes
Battery Information
DC System Voltage48 V DC
Number of Batteries4
Battery Size12V
Battery Capacity9000 mAh
Backup/Run Time (Full Load)13 Minute
Backup/Run Time (Half Load)26 Minute
Hot SwappableYes
Replaceable BatteryYes
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Physical Characteristics
Height3.50" (88.90 mm)
Width19" (482.60 mm)
Depth19.29" (489.97 mm)
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)30.84 kg
Miscellaneous
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • GREENGUARD
ConditionNo
UPC656747134579
Warranty
Limited Warranty3 Year
