CyberPower Monitored PDU RM 2U PDU30MT16FNET 30A 16-Outlet

Part No. PDU30MT16FNET

by CyberPower Systems, Inc

This Product is currently not in offering

CyberPower Monitored PDU RM 2U PDU30MT16FNET 30A 16-Outlet

Part No. PDU30MT16FNET

by CyberPower Systems, Inc

This Product is currently not in offering

General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberPDU30MT16FNET
Brand NameCyberPower
Product SeriesMonitored
Product ModelPDU30MT16FNET
Product NameMonitored PDU RM 2U PDU30MT16FNET 30A 16-Outlet
Marketing Information

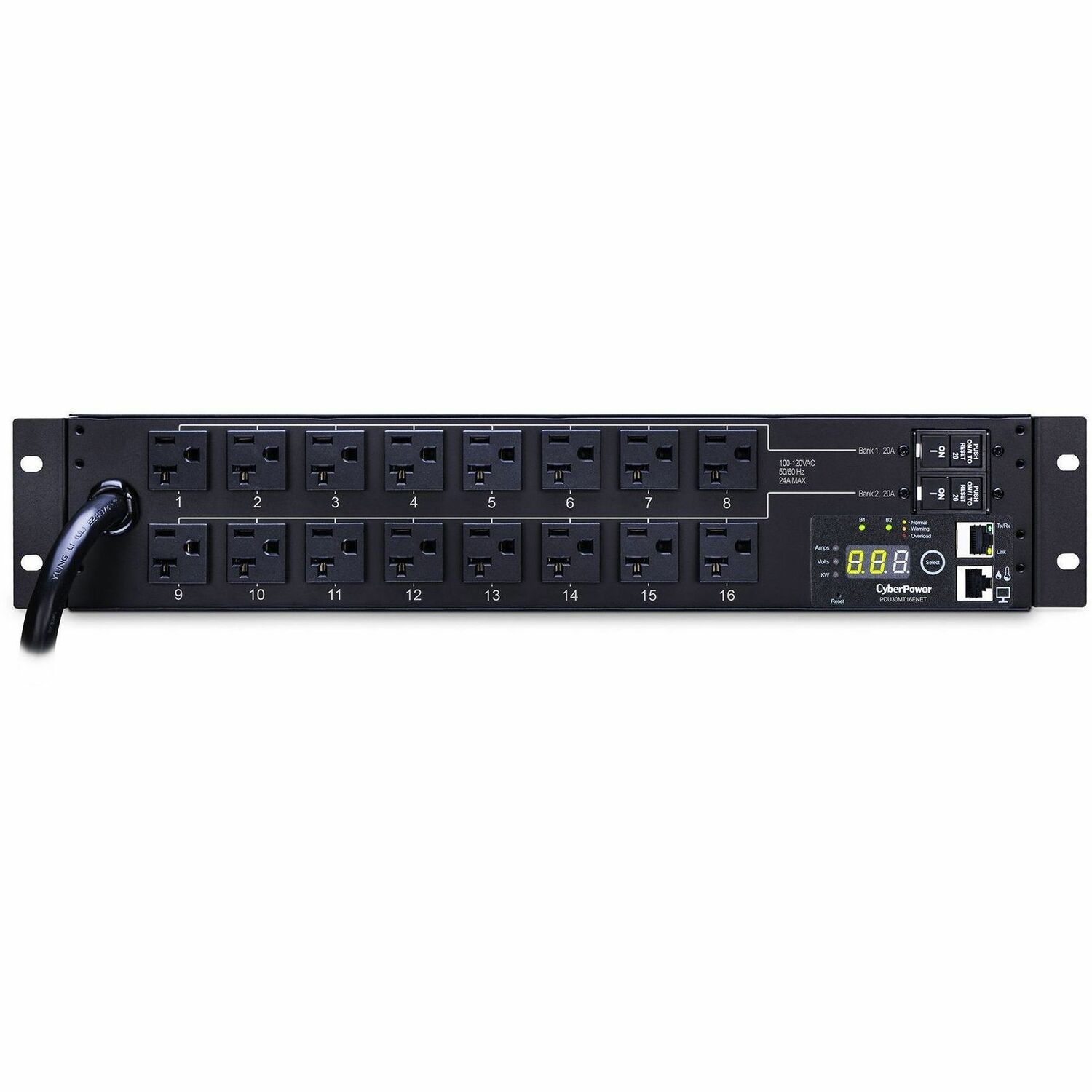

The CyberPower (PDU30MT16FNET) 16-outlet 2U rack mount monitored power distribution unit (PDU) provides 120V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The front LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the network interface.

The unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Product TypePDU
Technical Information
PDU TypeMonitored
Plug/Connector TypeNEMA L5-30P
Receptacle TypeNEMA 5-20R
Receptacle Detail16 x NEMA 5-20R
Power Description
Input Voltage120 V AC
Output Voltage120 V AC
Interfaces/Ports
Network (RJ-45)Yes
Physical Characteristics
Product ColorBlack
Mount TypeRack-mountable
Rack Height2U
Height3.50" (88.90 mm)
Width17.05" (433.07 mm)
Length4.41" (112.01 mm)
Weight (Approximate)3.90 kg
Miscellaneous
Package Contents
  • Monitored PDU RM 2U PDU30MT16FNET 30A 16-Outlet
  • Mounting Brackets (1 Set)
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Energy StarNo
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty3 Year
