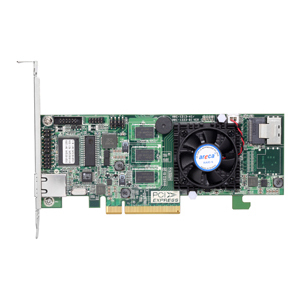

Areca 4-Port PCIe 2.0 Internal SAS/SATA RAID Controllers
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | Areca Technology Corp. |
| Manufacturer Part Number | ARC-1213-4I |
| Brand Name | Areca |
| Product Model | ARC-1213-4I |
| Product Name | 4-Port PCIe 2.0 Internal SAS/SATA RAID Controllers |
| Marketing Information | SAS builds on parallel SCSI by providing higher performance, improving data availability, and simplifying system design. The SAS interface supports both SAS disk drives for data-intensive applications and Serial ATA (SATA) drives for low-cost bulk storage of reference data. The ARC-12x3-4i/-8i support directly attach 4/8 SAS ports via 1/2 internal SFF-8087 connector. The ARC-12x3-4i/8i RAID controllers are low-profile PCIe cards, ideal for 1U and 2U rack-mount systems without needing the expansion capability. These controllers utilize the same RAID kernel that has been field-proven in existing external RAID controller products, allowing Areca to quickly bring stable and reliable RAID controllers to the market. |
| Product Type | SAS Controller |
| Host Interface | PCI Express 2.0 x8 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Data Backup Type | Battery Backup |
| Maximum Data Transfer Rate | 600 |
| Total Number of SAS Ports | 4 |
| Number of SAS Ports (Internal) | 4 |
| SAS Connector Details | 4 x SFF-8087 |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 2.44" (62 mm) |
| Width | 6.61" (168 mm) |
| Platform Supported |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
