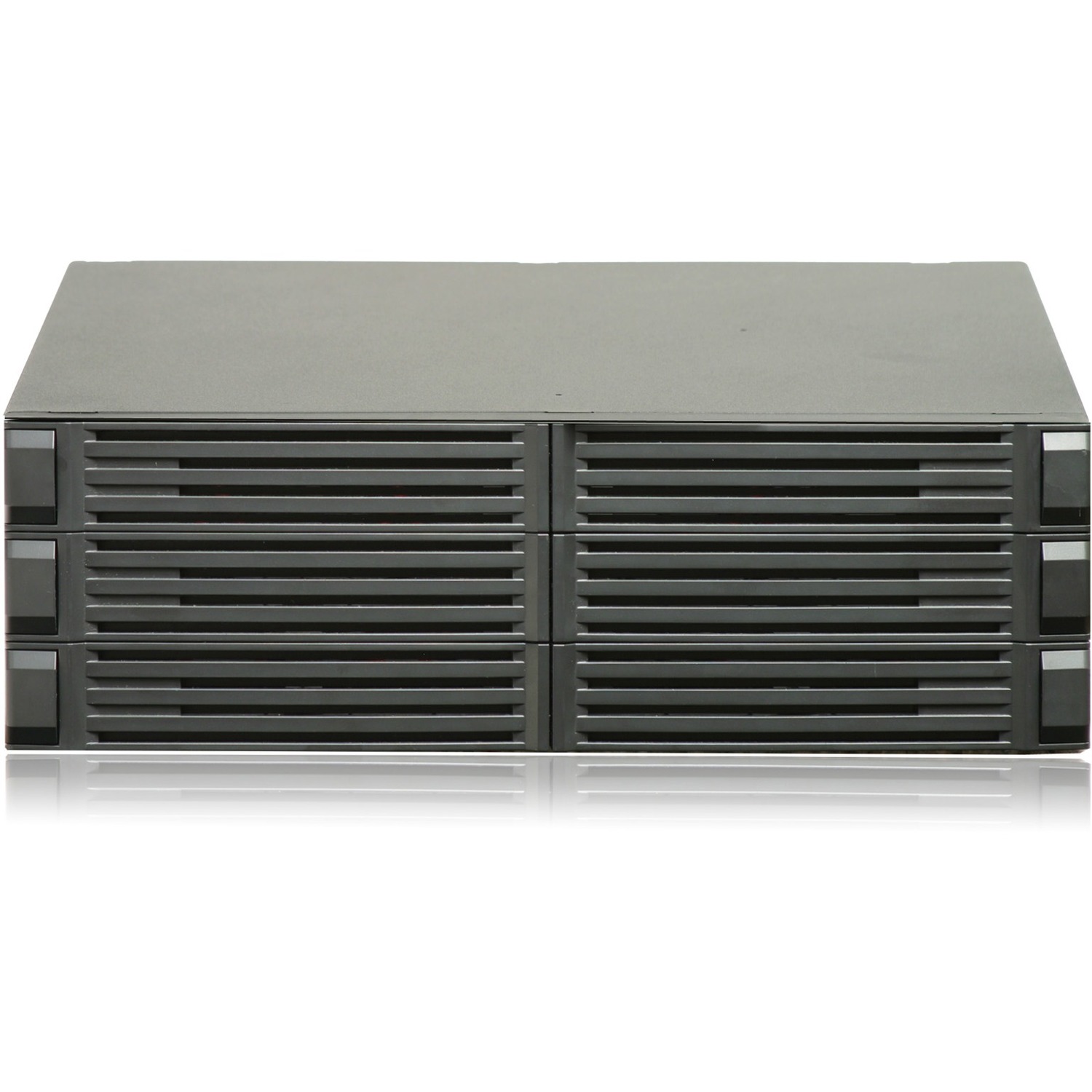

Minuteman BP36RTEXL Battery Pack

Part No. BP36RTEXL

by Para Systems, Inc

Minuteman BP36RTEXL Battery Pack

Lead Acid

Part No. BP36RTEXL

by Para Systems, Inc

$1023.99
General Information
ManufacturerPara Systems, Inc
Manufacturer Part NumberBP36RTEXL
Brand NameMinuteman
Product SeriesEXL
Product ModelBP36RTEXL
Product NameBP36RTEXL Battery Pack
Marketing Information

The EXL Series of battery packs provide longer runtimes than the standard XL battery packs due to their higher VAh ratings. The EXL series does not have internal chargers in the connected UPS. However you can use a combination of XL and EXL battery packs to reduce the recharge time of the EXL battery packs while providing a more flexible runtime solution. (Example: your application requires 2 hours of runtime and the EXL battery pack selected only provides 1.5 hours of runtime.

Instead of using two EXL battery packs, which will provide three hours of runtime, you can use the EXL along with an XL battery pack to provide the other 0.5 hours of runtime. This flexible solution not only saves you money, but also speeds up the recharge time of the EXL battery packs.

Product TypeBattery Unit
Technical Information
Battery ChemistryLead Acid
Battery Energy1836 VAh
Physical Characteristics
Form FactorRack-mountable
Rack Height3U
Height5.20" (132.08 mm)
Width26.70" (678.18 mm)
Depth17.30" (439.42 mm)
Weight (Approximate)58.01 kg
Miscellaneous
Additional Information
  • Standard Warranty: 3 Year Parts & Labor
Compatibility

Minuteman UPS:

  • E750RTXL2U(NC)
  • E1000RTXL2U(NC)
  • E1500RTXL2U(NC)
  • E1500RTXLT2U(NC)
ConditionNo
UPC784755158437
Warranty
Limited Warranty3 Year
