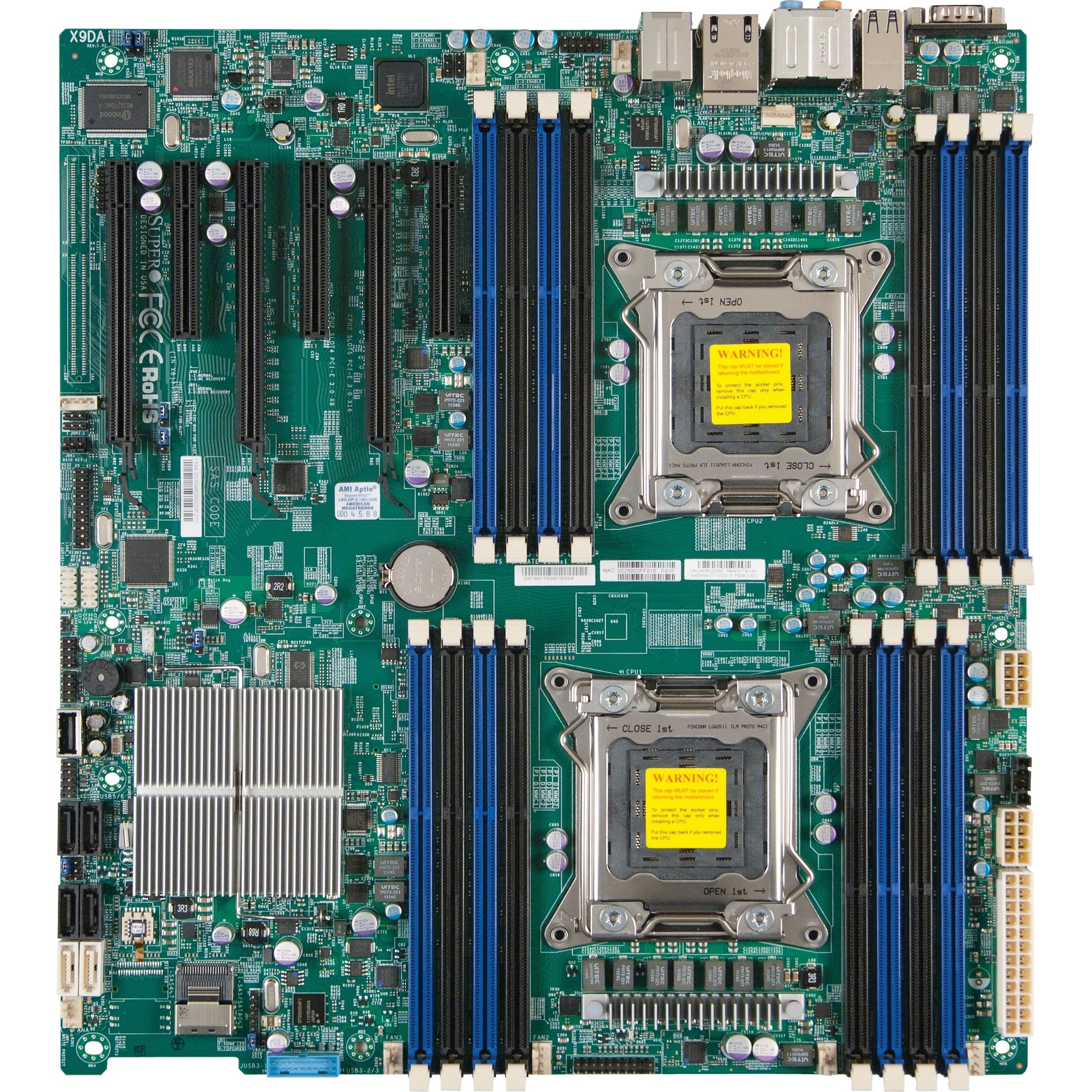

Supermicro X9DAi Server Motherboard - Intel C602 Chipset - Socket R LGA-2011 - Extended ATX
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X9DAI-O |
| Brand Name | Supermicro |
| Product Model | X9DAi |
| Product Name | X9DAi Server Motherboard |
| Marketing Information | Major Benefits from Supermicro's in-house Design Superiority Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction. |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Server Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Total Processor Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon Octa-core |
Memory
| Number of Memory Slots | 16 |
| Memory Form Factor |
|
| Maximum Memory Supported | 512 GB |
| Memory Speed Supported |
|
| Memory Standard |
|
| Memory Technology | DDR3 SDRAM |
I/O Controller
| Controller Type |
|
| RAID Supported | Yes |
| RAID Levels |
|
Audio
| Audio Channels | 7.1 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |

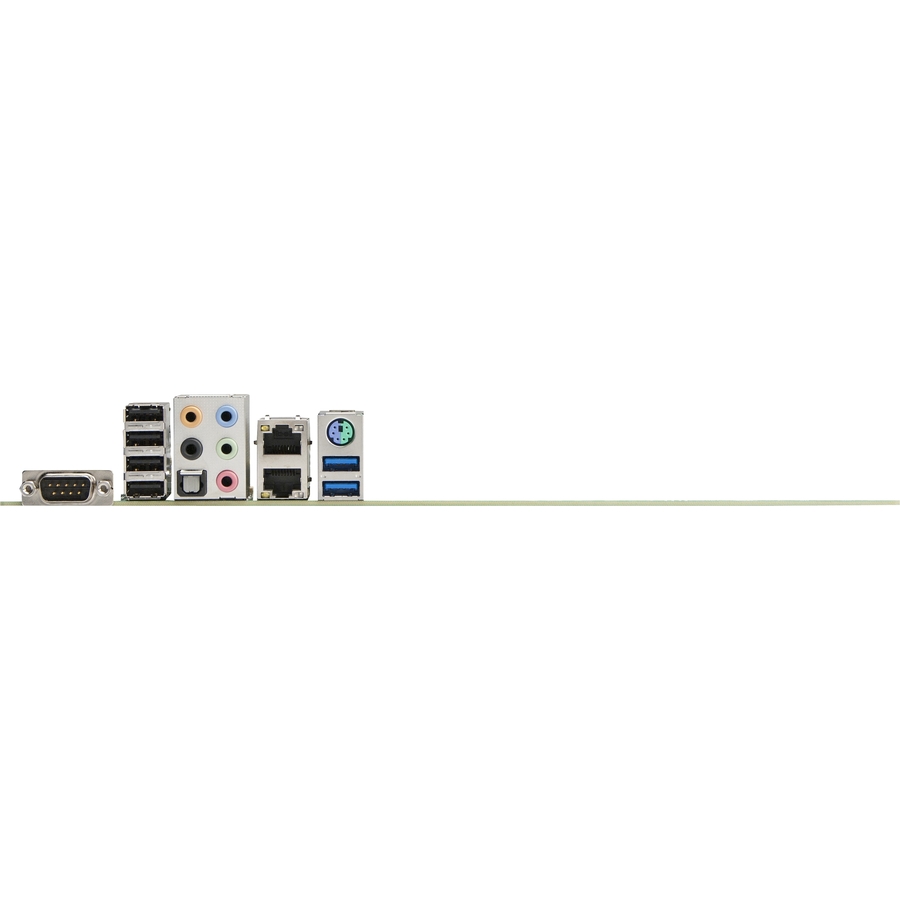

Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
Onboard Interfaces
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of Onboard USB 3.0 Ports | 2 |
Physical Characteristics
| Form Factor | Extended ATX |
| Width | 13" (330.20 mm) |
| Depth | 12" (304.80 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 3 Year |
