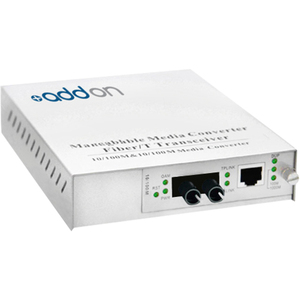

AddOn 100Base-TX To 100Base-BXU ST BiDi 20km SMF Media Converter
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MFMC-BX-UST |
| Brand Name | AddOn |
| Product Name | 100Base-TX To 100Base-BXU ST BiDi 20km SMF Media Converter |
| Marketing Information | ADD-MFMC-BX-UST is a One to One Managed Media Converter that converts a 100Base-TX(RJ45) to 100Base-BXU(ST) via a 1310nm/1550nm bi-directional (BiDi) single-mode fiber (SMF) ST connector, which allows distance reach up to 20km. ADD-MFMC-BX-UST provides a cost effective conversion from 100Base Copper to 100Base-BXU fiber, while extending the network reach beyond the 100m reach limitation of copper. AddOn's One to One type manageable media converters are independent standalone systems that do not require a centralized, or unified platform management system. One to One manageable media converters can supervise the real time situation of remote manageable fiber media converters, and allow end users to set the functions remotely. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure is reduced, and the service quality is enhanced. Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 20 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
Physical Characteristics
| Form Factor | External |
| Height | 1.50" (38.10 mm) |
| Width | 5" (127 mm) |
| Depth | 6" (152.40 mm) |
| Weight (Approximate) | 635 g |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
Warranty
| Limited Warranty | 3 Year |
