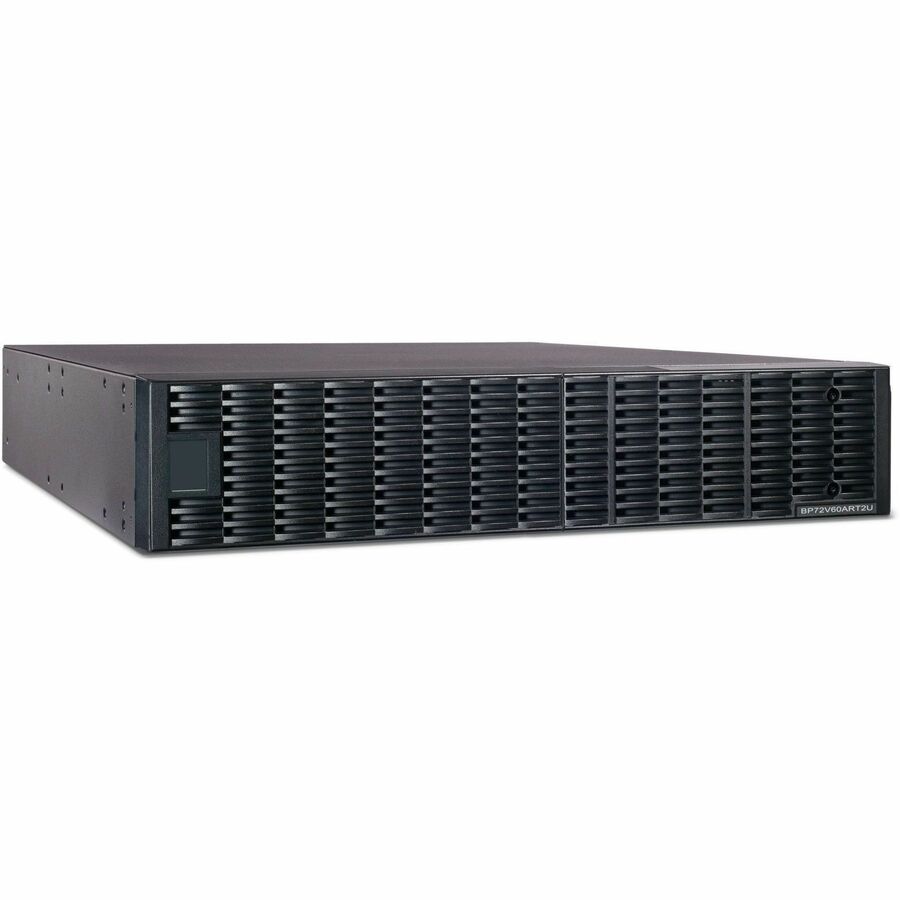

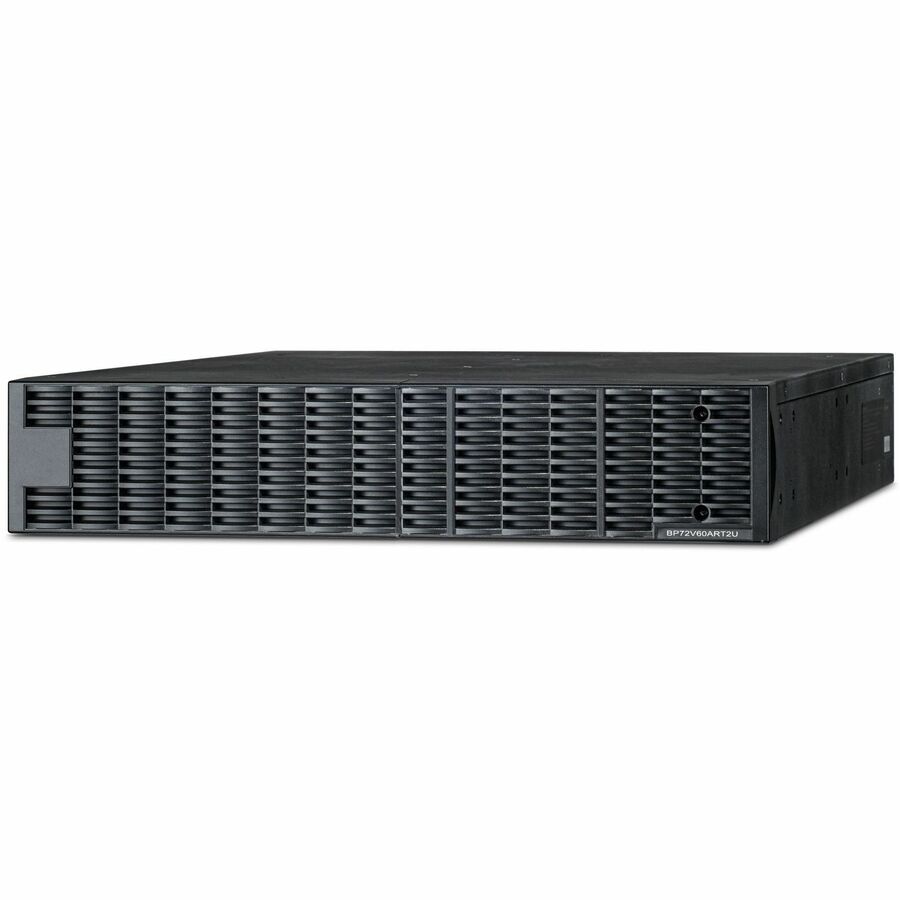

CyberPower BP72V60ART2U Extended Battery Modules

72 VDC / 60 A - 12 V / 9 Ah Sealed Lead-Acid Battery, 3YR Warranty

Part No. BP72V60ART2U

by CyberPower Systems, Inc

$1439.99

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP72V60ART2U
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP72V60ART2U
Product Name	BP72V60ART2U Extended Battery Modules

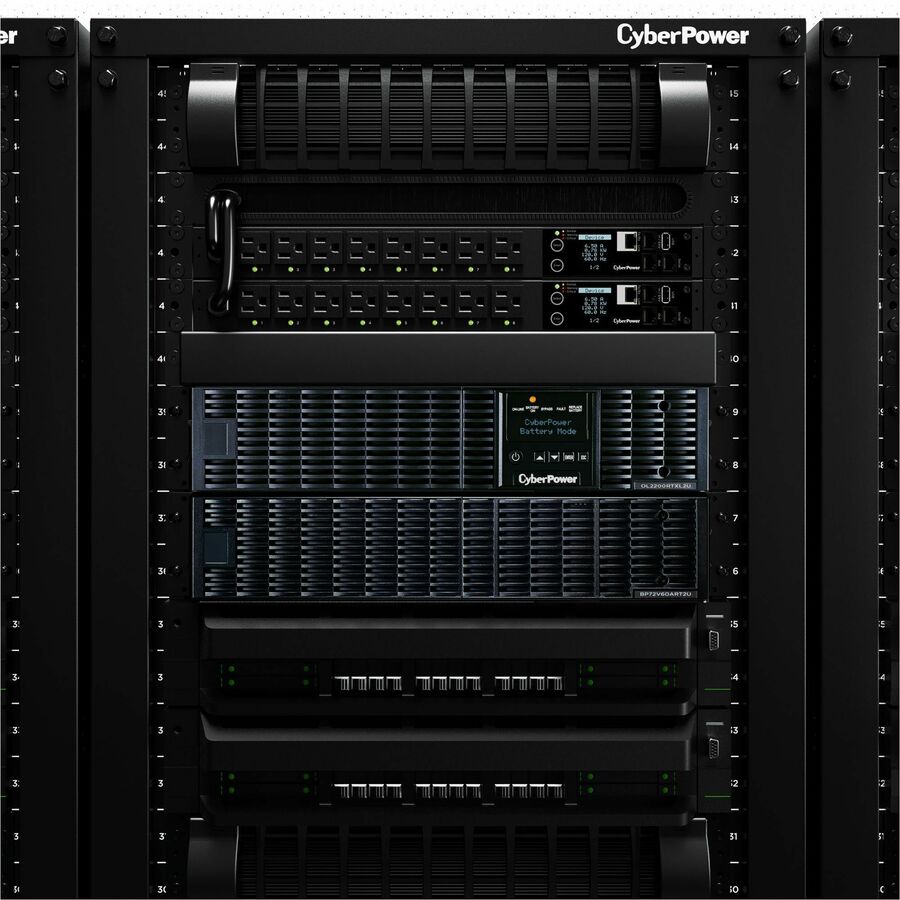

Marketing Information	The CyberPower BP72V60ART2U rack/tower convertible Extended Battery Module (EBM) for Smart App Online UPS systems OL2200RTXL2U, O22000RTXL2UN, OL3000RTXL2U, OL3000RTXL2UN and OL3000RTXL2UHVN extends battery runtimes during power outages. This EBM takes 2U of rack space and can be installed as a tower to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
Product Type	Battery Unit

Technical Information

Battery Characteristics	User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	9000 mAh
Output Voltage	72 V DC

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Tower/Rack Mountable
Rack Height	2U
Height	3.50" (88.90 mm)
Width	17" (431.80 mm)
Depth	23.60" (599.44 mm)
Weight (Approximate)	96.80 lb (43907.74 g)

Miscellaneous

Package Contents	Smart App Online BP72V60ART2U 2200 and 3000VA UPS External Battery Module Mounting Hardware
Additional Information	Amperage : 60 A DC Voltage : 72 VDC Battery Quantity : 12 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Expansion Ready (Daisy-Chain) : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X6B Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 4 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 59.94 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 23.6 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 599 (mm) Weight (kg) : 43.91 Weight (lb) : 96.8 Shipping Dimensions - (WxHxD) (cm) : 57.15 x 24.13 x 87.96 (cm) Shipping - Dimensions (WxHxD, in) : 22.5 x 9.5 x 34.63 (in) Shipping - Dimensions (WxHxD, mm) : 571.5 x 241.3 x 879.6 (mm) Shipping - Weight (kg) : 53.21 Shipping - Weight (lb) : 117.3 Circuit Breaker : 60 A Nominal Input Voltage : 72 VAC USB Charge Port : No Color : Black Material of Construction : Metal Mounting Hardware : Yes Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : OL2200RXL2U, OL2200RTXL2UN, OL3000RTXL2U, OL3000RTXL2UN, OL3000RTXL2UHV, OL3000RTXL2UHVN UPS Models : OL2200RXL2U Environmental : RoHS Compliant Safety : UL1778 Extended Warranty Option : WEXT5YR-BP2 Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS: OL2200RXL2U OL2200RTXL2UN OL3000RTXL2U OL3000RTXL2UN OL3000RTXL2UHV OL3000RTXL2UHVN
Certifications & Standards	UL1778
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532604975

Warranty

Limited Warranty	3 Year
