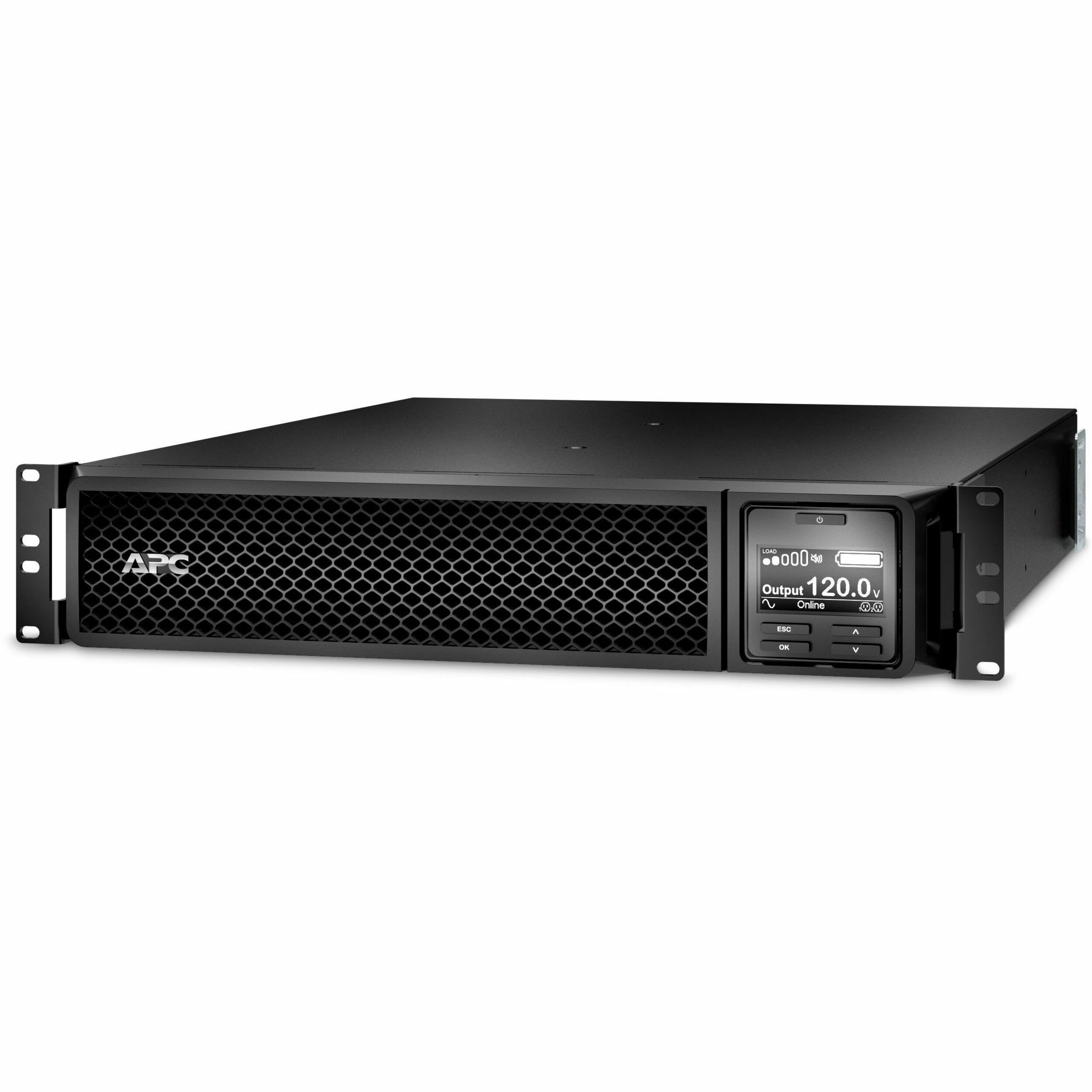

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD, W/L5-20P
In Stock Availability
- All Locations: (1+)
- Toronto, ON (1+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200R2X106 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA LCD RM 2U 120V with L5-20P |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA L5-20P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 8 |
| Emergency Power OFF | Yes |
| Cord Length | 8 ft (2.44 m) |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Serial Port | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Backup/Run Time (Half Load) | 15.20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Color Family | Black |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 18.90" (480 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 93.28 lb (42311.10 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | CSA |
| Software Included | Powerchute Serial Edition |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200R2X106_ROHS_DECLARATION&p_FileName=SMT2200R2X106KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194094&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194094&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304294085 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
