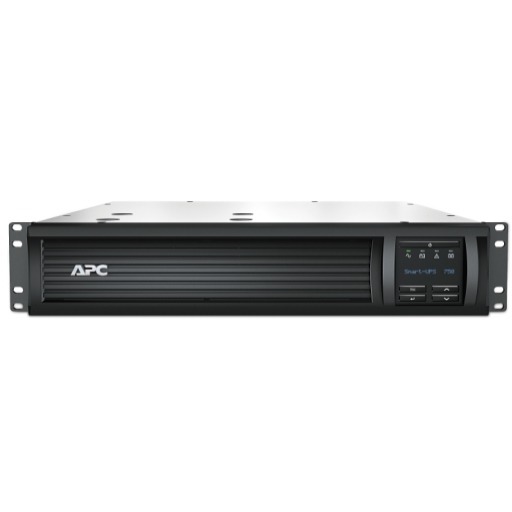

APC by Schneider Electric Smart-UPS 750VA LCD RM 2U 120V with L5-15P

Part No. SMT750R2X122

by Schneider Electric SA

APC by Schneider Electric Smart-UPS 750VA LCD RM 2U 120V with L5-15P

2U Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - Sine Wave - USB - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet

Part No. SMT750R2X122

by Schneider Electric SA

$737.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMT750R2X122
Brand NameAPC by Schneider Electric
Product LineSmart-UPS
Product NameSmart-UPS 750VA LCD RM 2U 120V with L5-15P
Marketing Information

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Packaged Quantity1 Each
Product TypeLine-interactive UPS
Technical Information
Plug/Connector TypeNEMA L5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail6 x NEMA 5-15R
Number of Battery & Surge Outlets6
Emergency Power OFFOptional
Power Description
Load Capacity (VA)750 VA
Load Capacity (Watt)500 W
Input Voltage110 V AC
Output Voltage120 V AC
Waveform TypeSine Wave
Interfaces/Ports
USBYes
Total Number of Expansion Slots1
Battery Information
Battery CharacteristicsMaintenance-free, Sealed
Battery ChemistryLead Acid
Backup/Run Time (Full Load)5 Minute
Backup/Run Time (Half Load)16 Minute
Typical Battery Recharge Time3 Hour
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height3.50" (88.90 mm)
Width17" (431.80 mm)
Depth16" (406.40 mm)
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)38 lb (17236.51 g)
Miscellaneous
Package Contents
  • Smart-UPS 750VA LCD RM 2U 120V with L5-15P
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards
    • CSA
    • FCC Part 15 Class A
    • UL 1449
    • UL 1778
    Country of OriginUnited States
    Environmentally FriendlyYes
    Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    ConditionNo
    UPC0731304294122
    Warranty
    Limited Warranty3 Year
