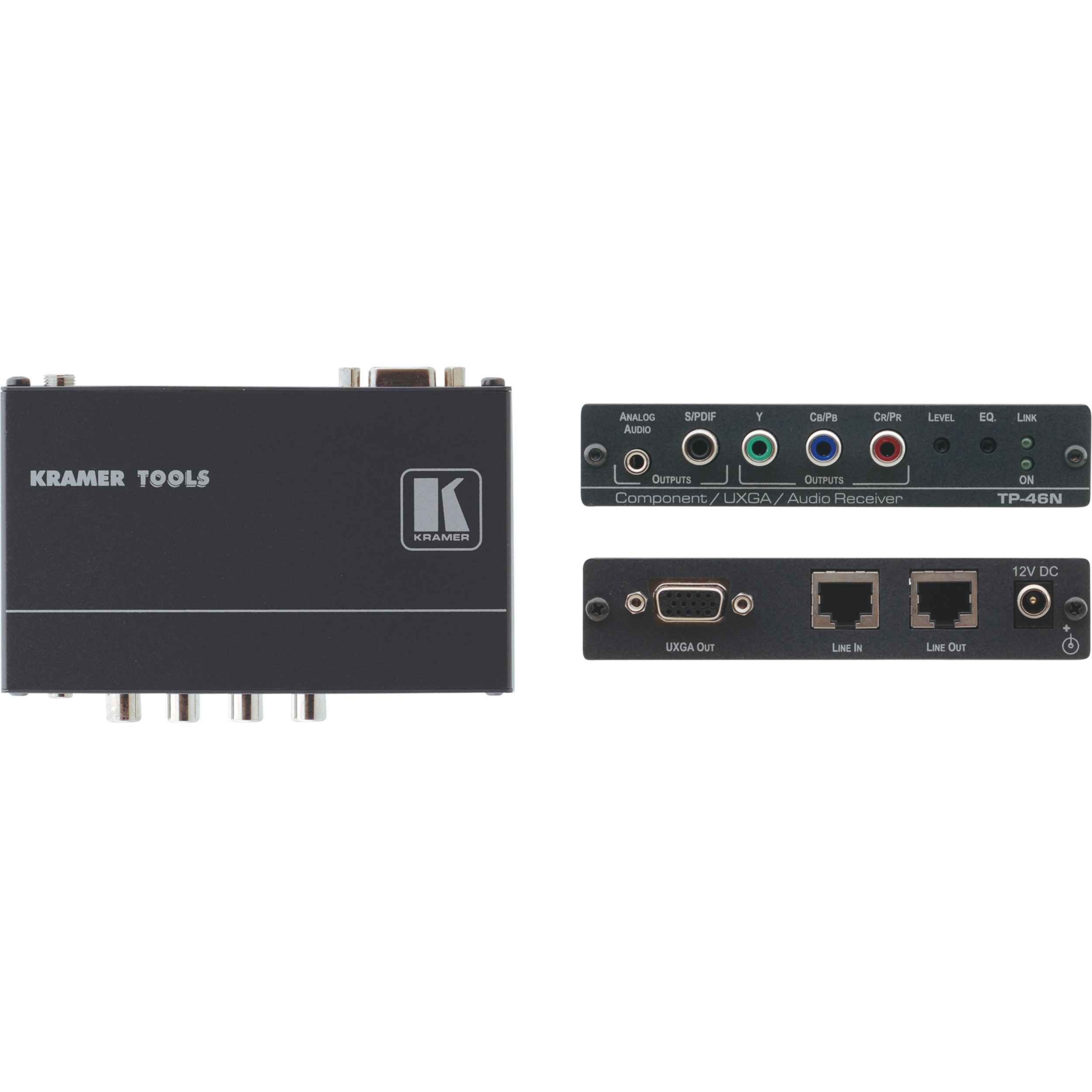

Kramer Component Video or Computer Graphics Video with Audio over Twisted Pair Receiver
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | TP-46N |
| Brand Name | Kramer |
| Product Model | TP?46N |
| Product Name | Component Video or Computer Graphics Video with Audio over Twisted Pair Receiver |
| Marketing Information | The TP-46N is a twisted pair receiver for component video (YUV) or computer graphics video and unbalanced stereo audio or S/PDIF audio signals. The TP-45 transmitter converts an audio and video signal to a twisted pair signal and the TP-46N converts the twisted pair signal back into audio and video signals. |
| Product Type | Video Extender Receiver |
Technical Information
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
Video
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Outputs | 1 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
Physical Characteristics
| Receiver Height | 1.09" (27.60 mm) |
| Receiver Width | 4.72" (120 mm) |
| Receiver Depth | 2.81" (71.50 mm) |
| Form Factor | Rack-mountable |
| Receiver Weight (Approximate) | 300 g |
Miscellaneous
| Package Contents |
|
