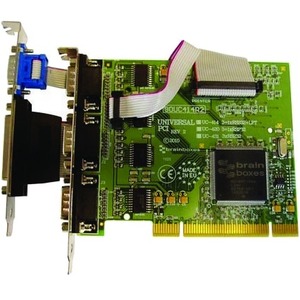

Brainboxes Serial/Parallel Combo Adapter
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | UC-414 |
| Brand Name | Brainboxes |
| Product Name | Serial/Parallel Combo Adapter |
| Marketing Information | Universal PCI providing four RS232 serial ports and one LPT port (3 industry standard 9 pin D RS232 ports on the bracket with a another 9 pin D RS232 port on a flylead. The 25pin D LPT port is also available by a flylead. Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8. |
| Product Type | Serial/Parallel Combo Adapter |
Technical Information
| Host Interface | PCI 3.0 |
| Platform Supported | PC |
| UART Type |
|
Interfaces/Ports
| Number of Serial Ports (Internal) | 1 |
| Number of Serial Ports (External) | 3 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Card Height | Full-height |
| Height | 1.77" (45 mm) |
| Width | 5.31" (135 mm) |
| Depth | 6.30" (160 mm) |
| Weight (Approximate) | 98 g |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
Warranty
| Limited Warranty | Lifetime |
