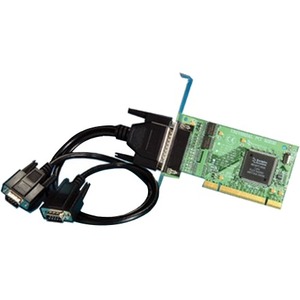

Brainboxes 2 Port RS232 PCI Serial Card DB9
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | UC-734 |
| Brand Name | Brainboxes |
| Product Name | 2 Port RS232 PCI Serial Card DB9 |
| Marketing Information | Universal PCI providing two RS232 serial ports on cable. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8. |
| Product Type | Multiport Serial Adapter |
Technical Information
| Host Interface | PCI |
| Maximum Data Transfer Rate | 921.60 kbit/s |
Interfaces/Ports

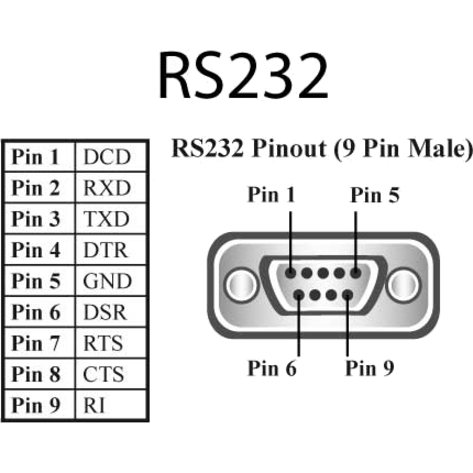

| Ports Expandability | 2 x DB-9 RS-232 - Serial, Via Cable |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.72" (120 mm) |
| Width | 0.71" (18 mm) |
| Thickness | 5.20" (132 mm) |
| Weight (Approximate) | 30.4 g |
Miscellaneous
| Package Contents |
|
| TAA Compliant | Yes |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
Warranty
| Limited Warranty | Lifetime |
