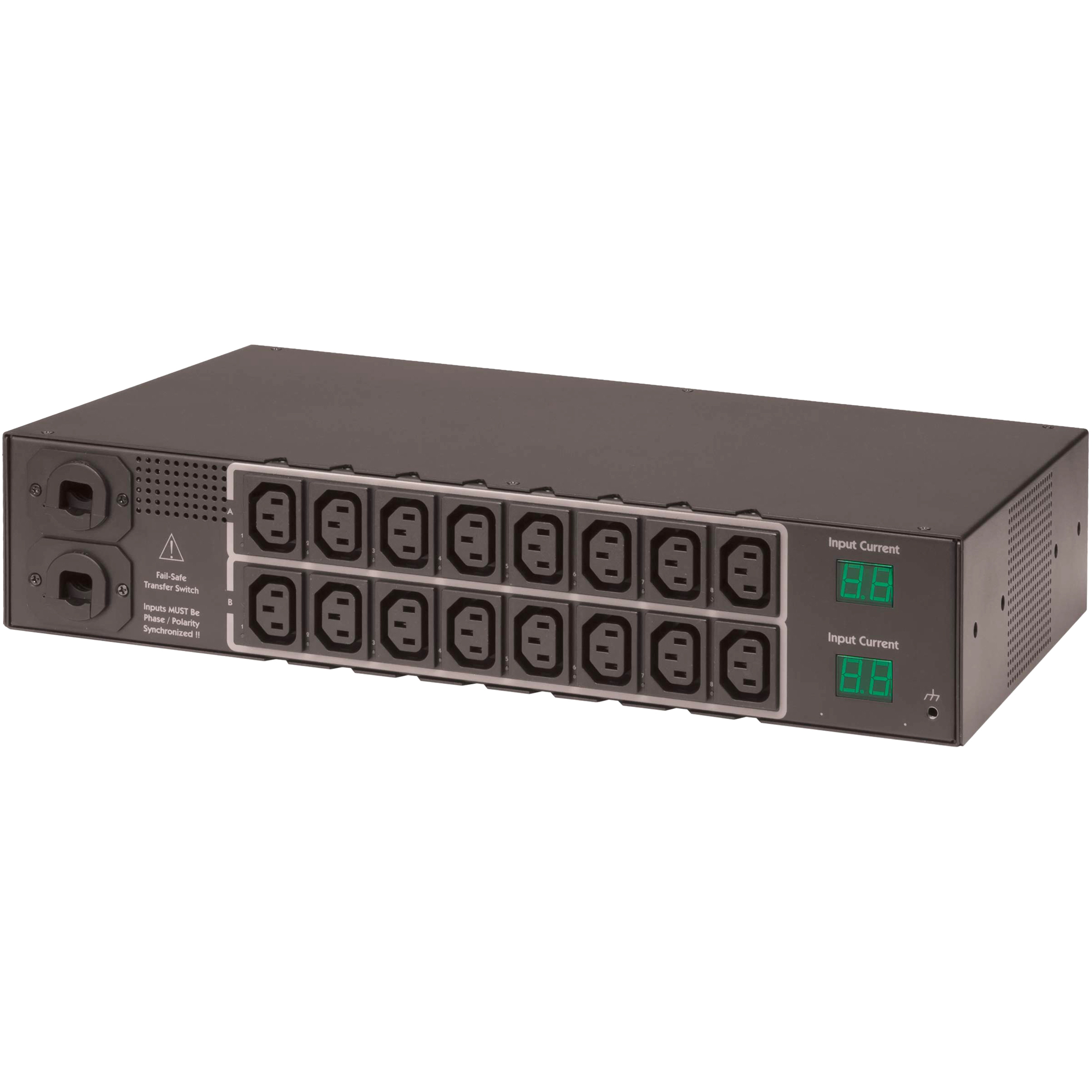

Server Technology Sentry CW-16HF2A452 16-Outlets PDU
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Server Technology, Inc |
| Manufacturer Part Number | CW-16HF2A452 |
| Brand Name | Server Technology |
| Product Line | Sentry |
| Product Model | CW-16HF2A452 |
| Product Name | Sentry CW-16HF2A452 16-Outlets PDU |
| Marketing Information | This new "Fail-Safe" method has several advantages compared to a standard ATS because it does not prohibit load balancing between the two supplied circuits. A standard ATS contains two-in-feeds, but runs all outlets from just one source, with the secondary source only being used once an outage occurs on the capacity. This results in less heat, less resistance, and consequently less of a voltage drop compared to the same load existing on just one source. Only when an outage occurs on one of the two sources will the entire load be applied to a single source. |
| Product Type | PDU |
Technical Information
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 16 x IEC 60320 C13 |
Power Description
| Input Voltage | 230 V AC |
Management
| Management |
|
Physical Characteristics
| Mount Type | Rack-mountable |
| Height | 17.20" (436.88 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 6.80 kg |
