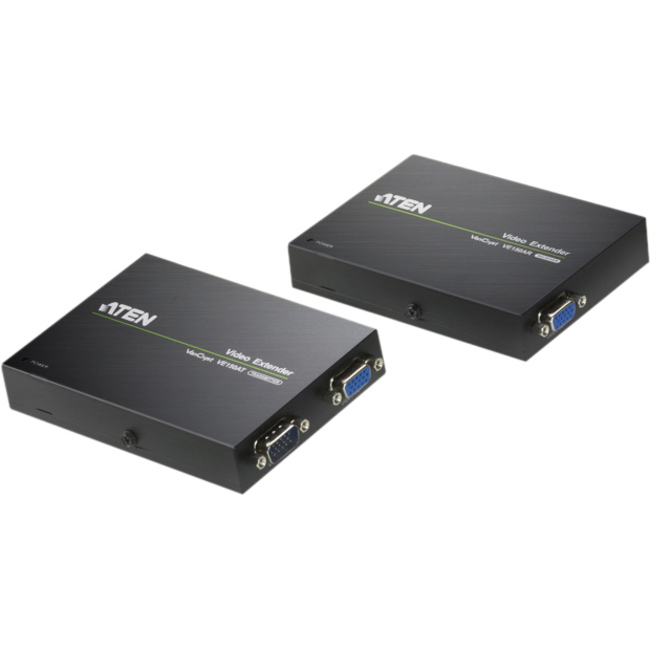

ATEN Video Extender
1 Input Device - 2 Output Device - 492.13 ft (150000 mm) Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - VGA, XGA, SVGA, UXGA, WUXGA - 1920 x 1200 - Twisted Pair - Category 5 - Rack-mountable
$138.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE150A |
| Brand Name | ATEN |
| Product Name | Video Extender |
| Marketing Information | VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location. |
| Product Type | Video Extender Transmitter/Receiver |
Technical Information
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
Video
| Graphics Modes |
|
| Maximum Video Resolution | 1920 x 1200 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 2 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
Power Description
| Input Voltage | 5.3 V DC |
Physical Characteristics
| Product Material | Metal |
| Transmitter Height | 0.89" (22.60 mm) |
| Transmitter Width | 3.56" (90.40 mm) |
| Length | 5.03" (127.70 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 240 g |
Miscellaneous
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 672792003929 |
