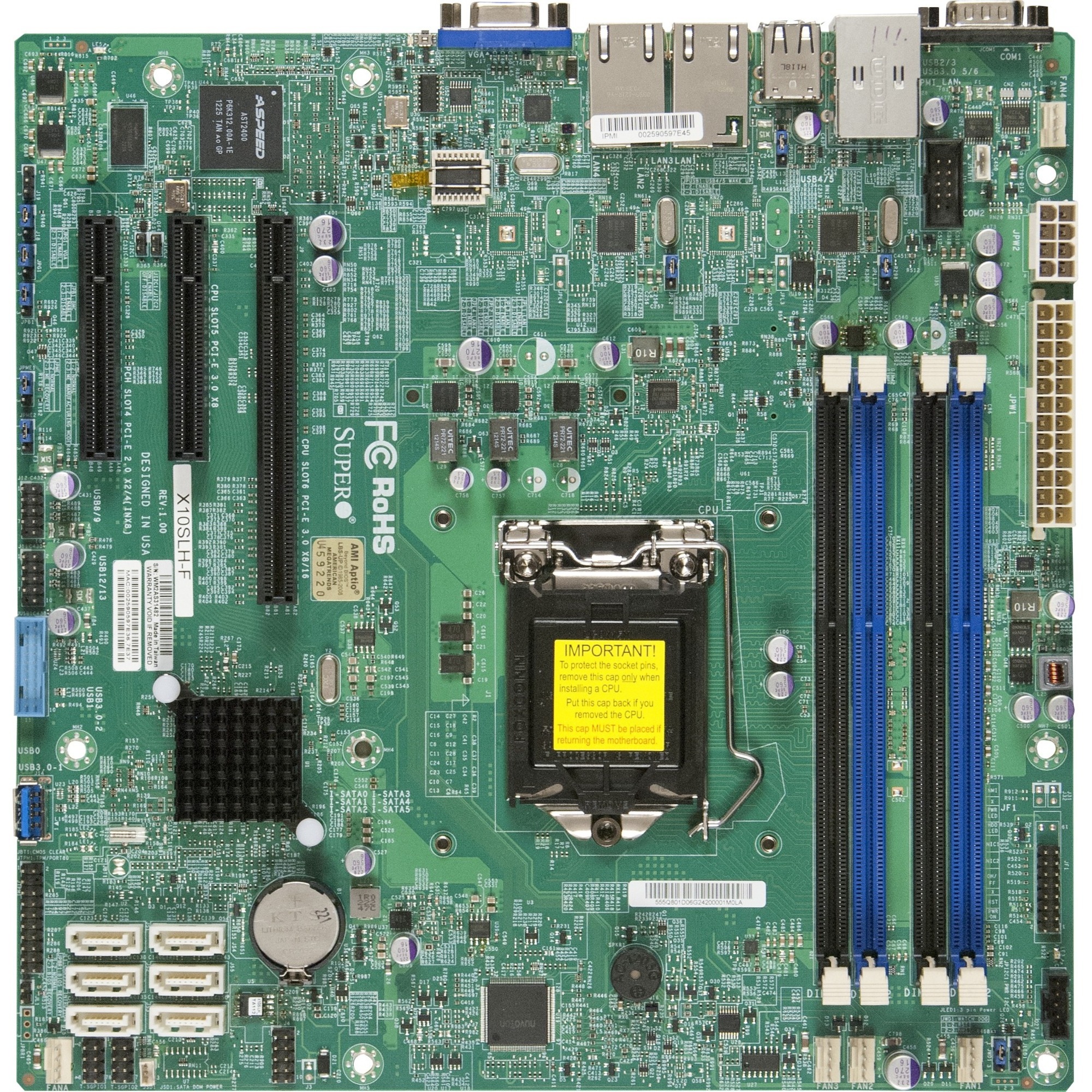

Supermicro X10SLH-F Server Motherboard - Intel C226 Chipset - Socket H3 LGA-1150 - Micro ATX
32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
$426.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10SLH-F-O |
| Brand Name | Supermicro |
| Product Series | X10 |
| Product Model | X10SLH-F |
| Product Name | X10 Series X10SLH-F Server Motherboard |
| Marketing Information | Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling. |
| Product Type | Server Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C226 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported |
|
| 64-bit Processing | Yes |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 32 GB |
| Memory Standard |
|
| Memory Technology | DDR3 SDRAM |
| Memory Speed Supported |
|
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Serial Port | Yes |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard Serial Header | Yes |
| Onboard LEDs Header | Yes |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
Miscellaneous
| Compatibility |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | US |
| Condition | No |
