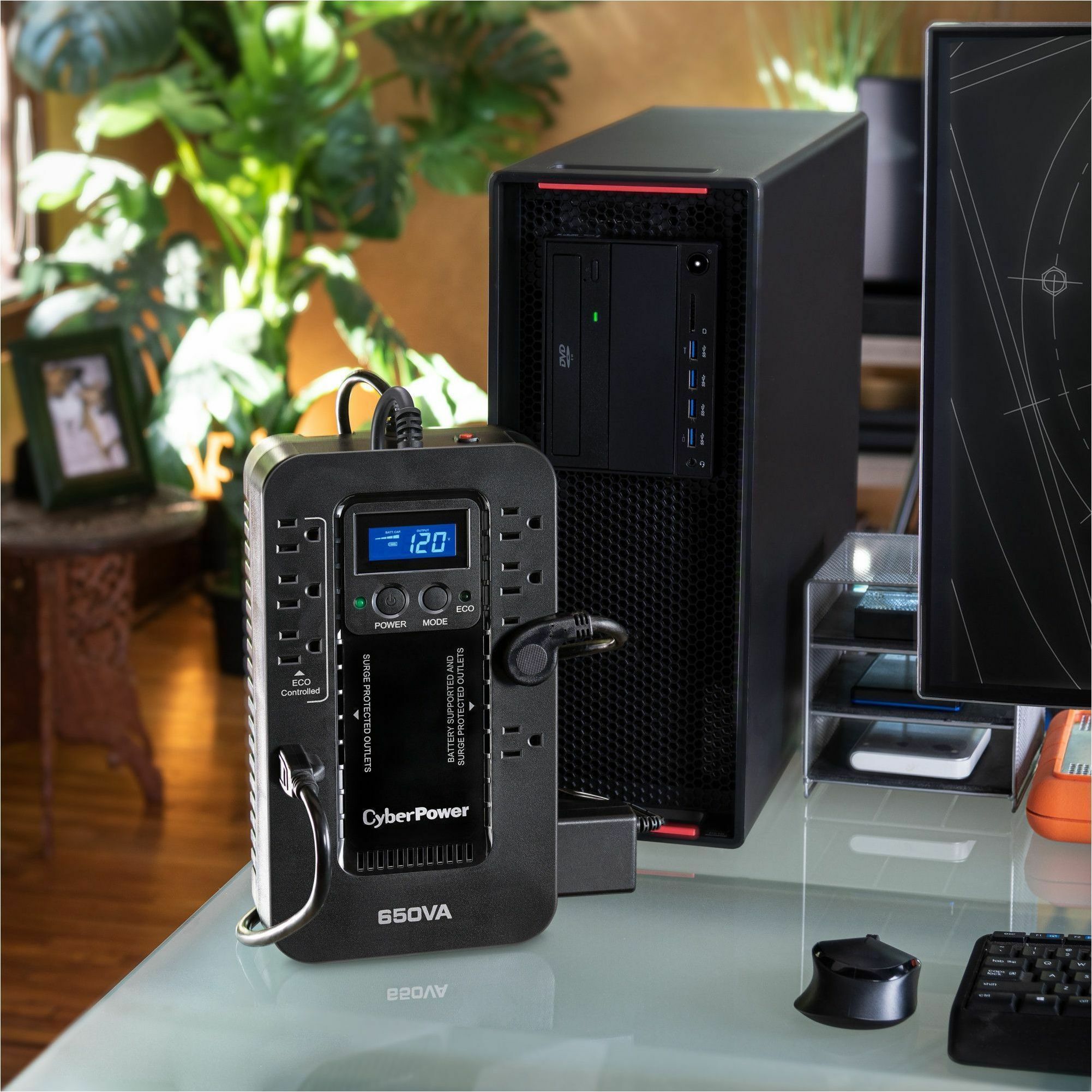

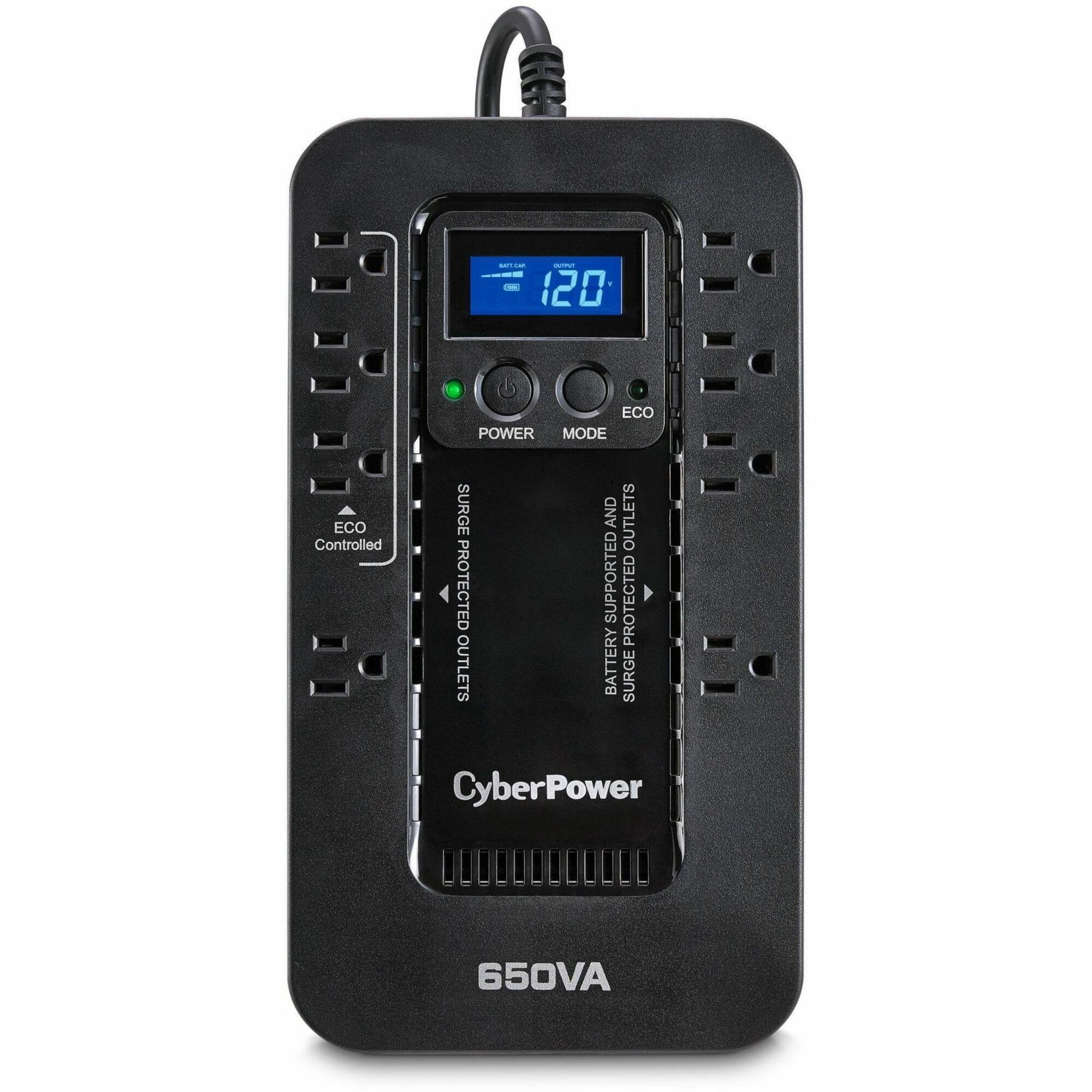

CyberPower EC650LCD Ecologic UPS Systems
650VA/390W, 120 VAC, NEMA 5-15P, Compact, 8 Outlets, LCD, PowerPanel® Personal, $100000 CEG, 3YR Warranty
$119.99
In Stock Availability
- All Locations: (125+)
- Calgary, AB (2+)
- Toronto, ON (127+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | EC650LCD |
| Brand Name | CyberPower |
| Product Series | Ecologic UPS |
| Product Model | EC650LCD |
| Product Name | EC650LCD Ecologic UPS Systems |
| Marketing Information | A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee. |
| Product Type | Standby UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Application/Usage |
|
| Surge Suppression | Yes |
| Features | Audible Alarm |
Power Description
| Load Capacity (VA) | 650 VA |
| Load Capacity (Watt) | 390 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency |
|
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 526 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.6 |
Display & Graphics
| Display | LCD |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | LED Indicators:
|
Interfaces/Ports
| USB | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| Number of Batteries | 1 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 2.80 Minute |
| Backup/Run Time (Half Load) | 8.40 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | No |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 3.11" (79 mm) |
| Width | 10.59" (269 mm) |
| Depth | 5.91" (150 mm) |
| Form Factor | Compact |
| Weight (Approximate) | 6.39 lb (2900 g) |
Miscellaneous
| Additional Information | |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532607594 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Directly Connected Equipment Guarantee | $100000 Lifetime |
