Cisco D9485 DAVIC QPSK Platform
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | D94852DC |
| Brand Name | Cisco |
| Product Model | D9485 |
| Product Name | D9485 DAVIC QPSK Platform |

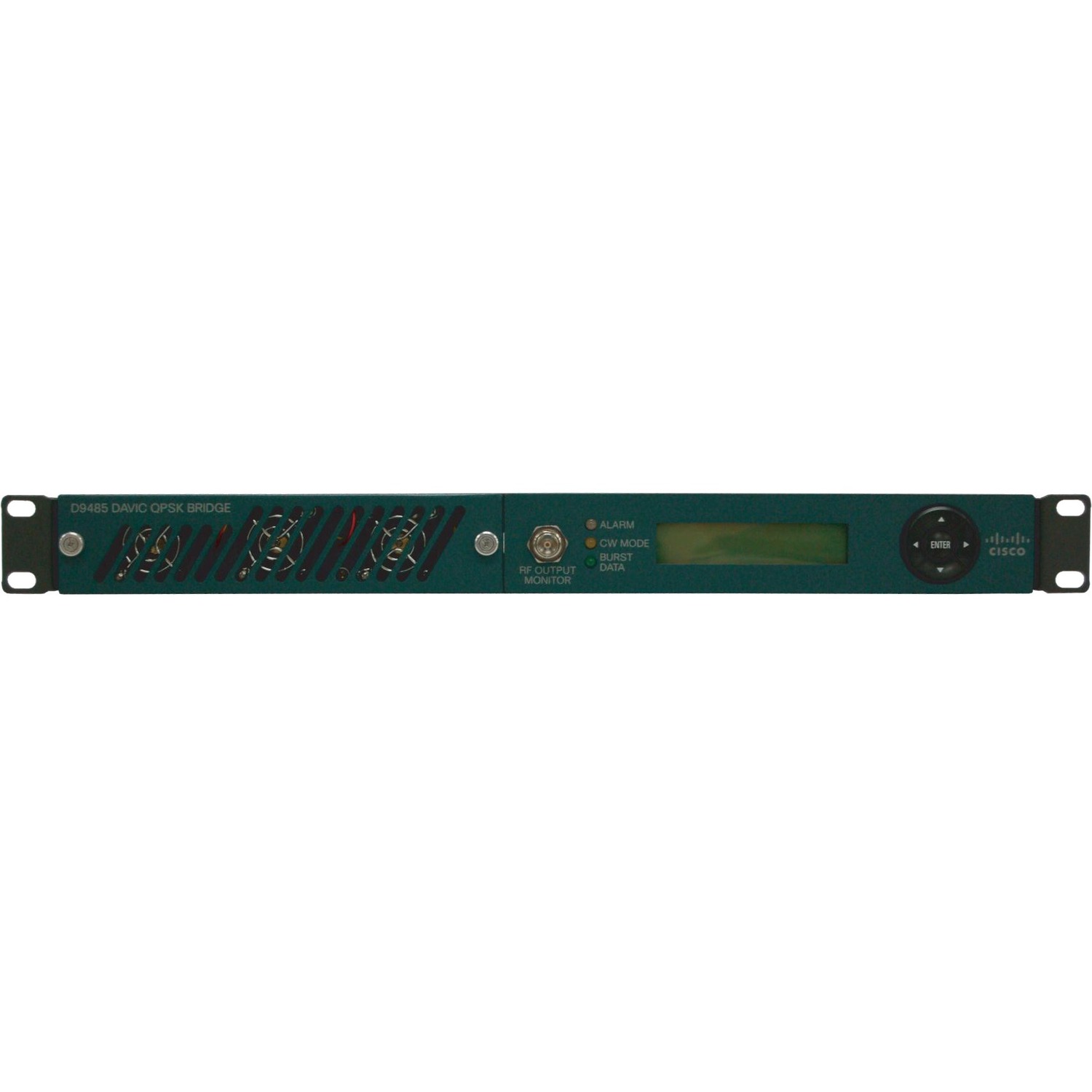

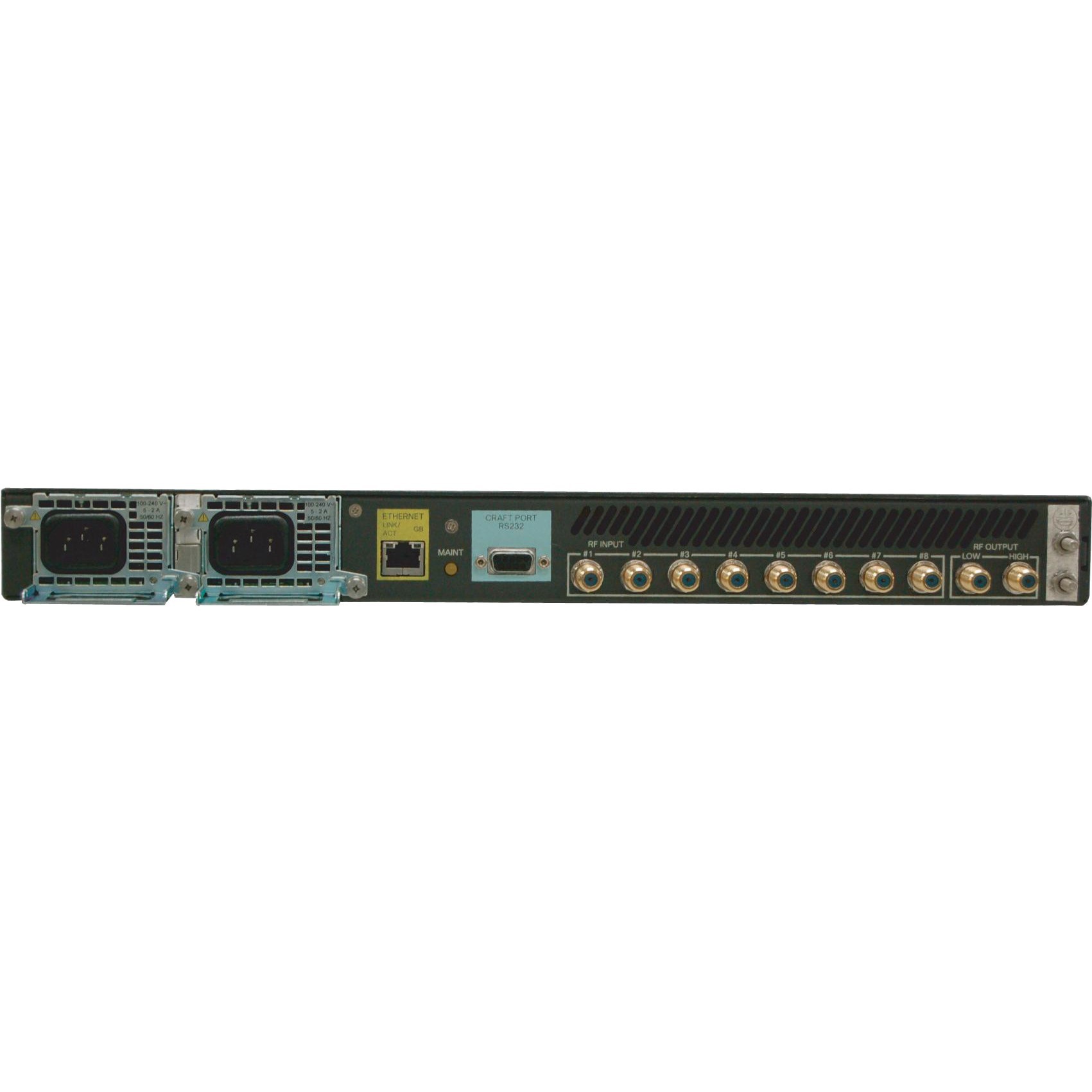

| Marketing Information | The Cisco® Model D9485 DAVIC QPSK Platform provides DAVIC-compliant headend QPSK signaling capability utilizing a robust design and refined operation via the front panel or web-based GUI. The D9485 works in conjunction with digital set-tops, including the Cisco Explorer® f amily of set-tops, to prov ide f orward signaling and rev erse path communications f or interactiv e v ideo and data sy stems over a conv entional two-way CATV plant. In addition to the benef it of dual redundant powering (AC or DC) and state of the art components, a single D9485 DAVIC QPSK Platf orm contains the combined core f unctionality of one D9482 QPSK Modulator and eight D9494 Demodulators in a compact 1RU chassis. Incorporates "Bridge" Concept
|
| Product Type | DAVIC QPSK Platform |
Physical Characteristics
| Height | 1.75" (44.45 mm) |
| Width | 19" (482.60 mm) |
| Depth | 19.50" (495.30 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 1 Year |
