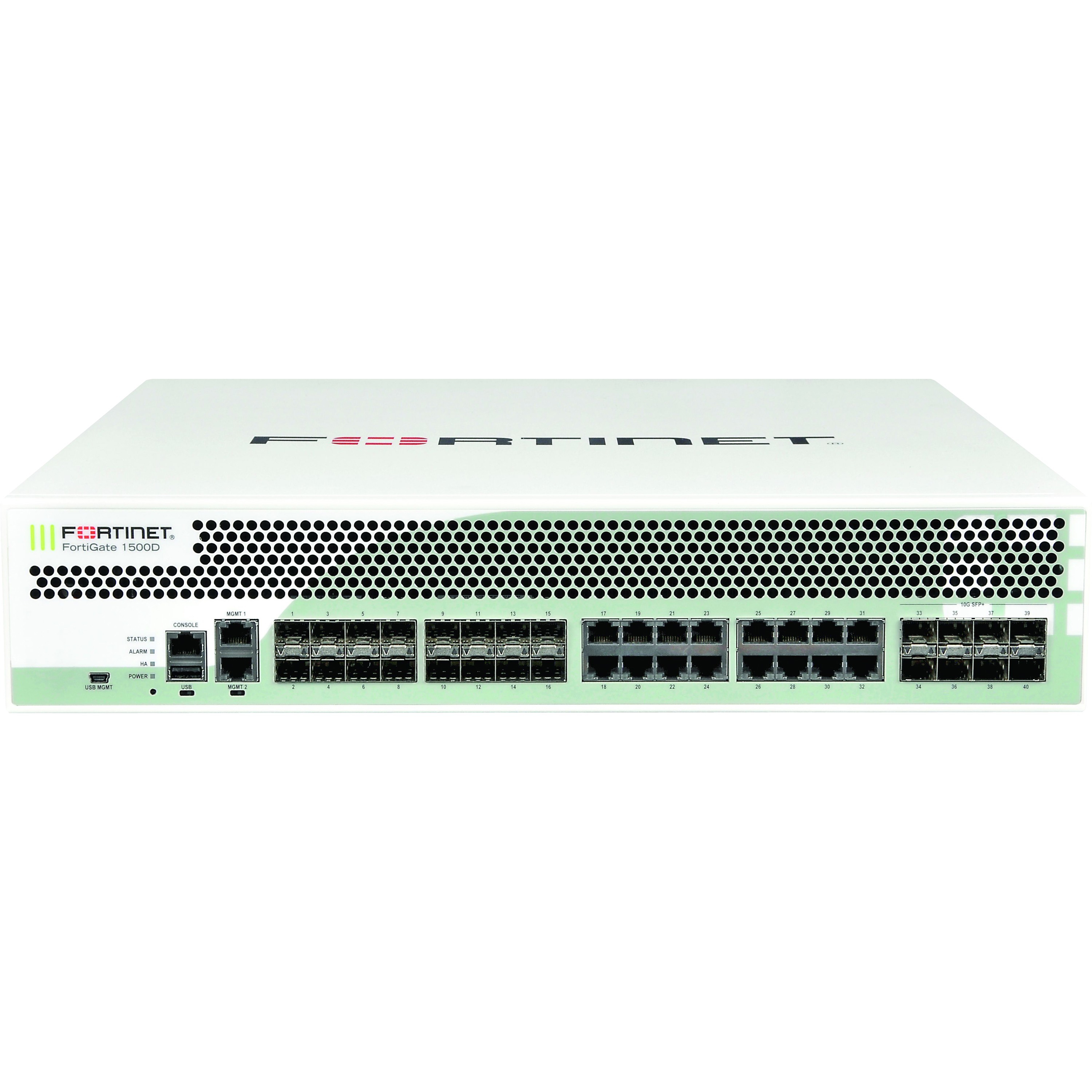

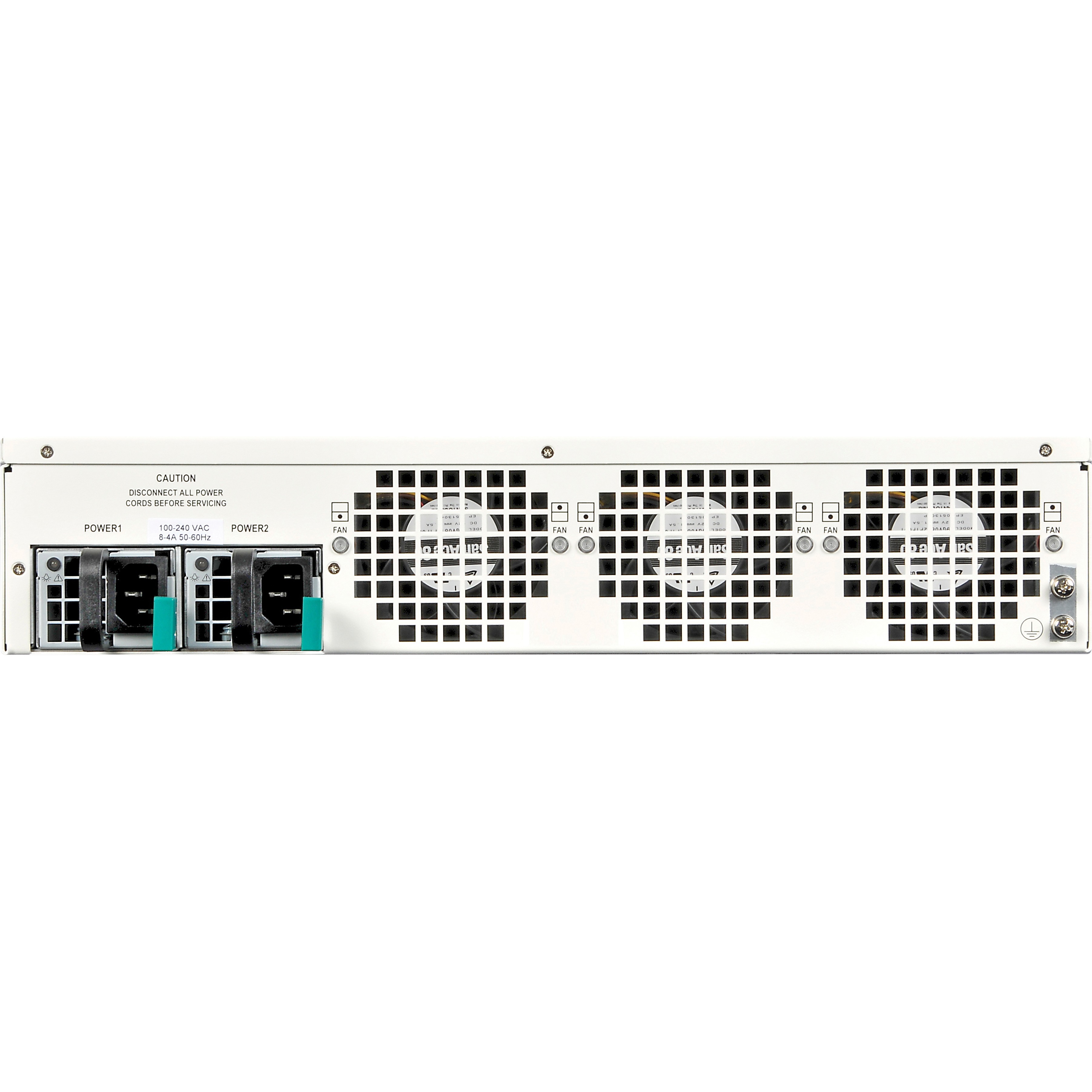

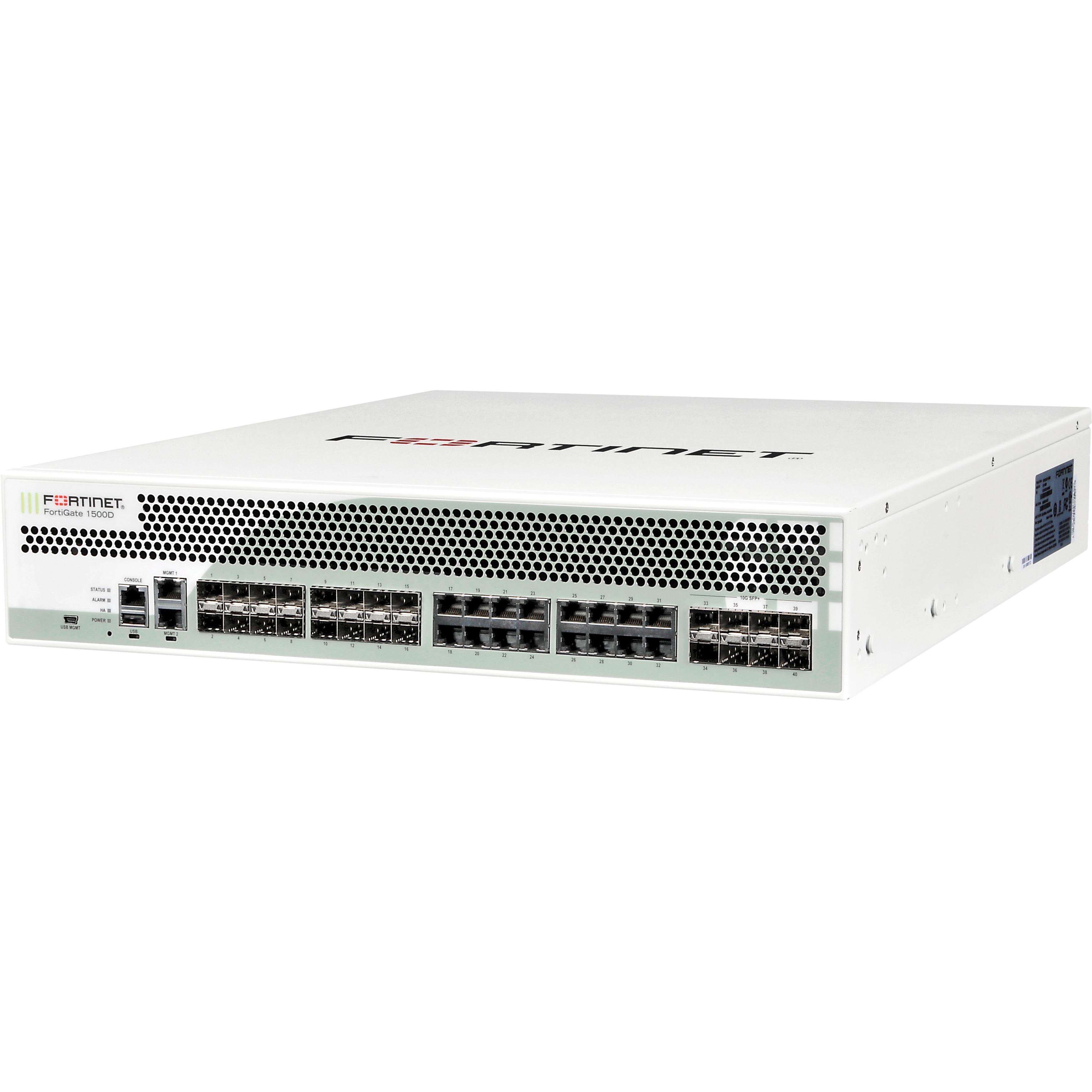

Fortinet FortiGate 1500D Network Security/Firewall Appliance

Part No. FG-1500D-USG

by Fortinet, Inc

This Product is currently not in offering

Fortinet FortiGate 1500D Network Security/Firewall Appliance

Part No. FG-1500D-USG

by Fortinet, Inc

This Product is currently not in offering

General Information
ManufacturerFortinet, Inc
Manufacturer Part NumberFG-1500D-USG
Brand NameFortinet
Product LineFortiGate
Product Series1000
Product Model1500D
Product NameFortiGate 1500D Network Security/Firewall Appliance
Marketing Information

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.

One Enterprise Firewall Solution across the Extended Enterprise

The FortiGate family of network appliances represents the industry's broadest range of enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering industry-leading security effectiveness and consolidation which is routinely validated by independent real-world tests. Targeted for large enterprises, the FortiGate 1500D delivers high NGFW and SSL inspection perfromance along with high port density and dual power supply for maximum flexibility.

Product TypeNetwork Security/Firewall Appliance
Technical Information
Firewall Protection SupportedThreat Protection
Interfaces/Ports
Total Number of Ports16
USBYes
PoE (RJ-45) PortNo
Number of Network (RJ-45) Ports16
Network & Communication
Ethernet Technology10 Gigabit Ethernet
Network Standard
  • 1000Base-T
  • 1000Base-X
Wireless Specifications
Wireless LANNo
I/O Expansions
Total Number of Expansion Slots24
Expansion Slot Type
  • SFP
  • SFP+
Number of SFP Slots16
Number of SFP+ Slots8
Management & Protocols
ManageableYes
Physical Characteristics
Compatible Rack Unit2U
Form FactorRack-mountable
Height3.50" (88.90 mm)
Width21.81" (553.97 mm)
Depth17.24" (437.90 mm)
Weight (Approximate)32.50 lb (14741.75 g)
