Planar PT2245PW 22" Class LCD Touchscreen Monitor - 16:9 - 14 ms
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Leyard |
| Manufacturer Part Number | 997-7416-00 |
| Brand Name | Planar |
| Product Model | PT2245PW |
| Product Name | PT2245PW Touch Monitor |

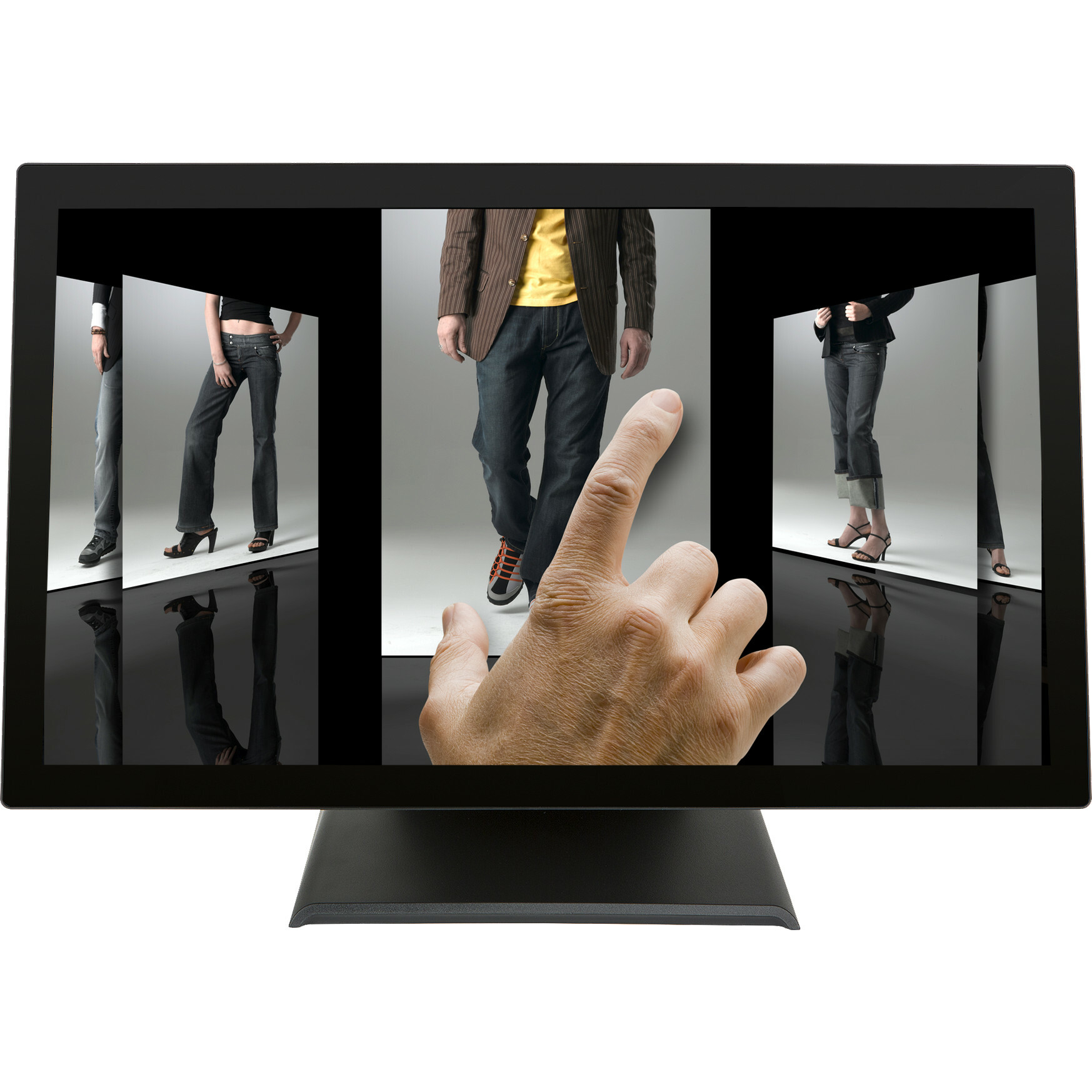

| Marketing Information | For image-conscious retail, hospitality, or healthcare establishments looking for a wide-format touch screen monitor, the Planar PT2245PW 22-inch monitor is optimized with multi-touch interactivity for displaying 16:9 content. With its ultra-thin profile and its sleek,edge-to-edge glass surface, the Planar PT2245PW provides the ultimate end-user experience. |
| Product Type | LCD Touchscreen Monitor |
Technical Information
| Screen Size Class | 22" |
| Viewable Screen Size | 22" |
| Screen Mode | Full HD |
| Response Time | 14 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type |
|
| Backlight Technology | Edge LED |
| Features |
|
| Horizontal Frequency | 67.50 kHz |
Video
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
Interfaces/Ports
| DVI | Yes |
| USB | Yes |
| VGA | Yes |
Power Description
| Operating Power Consumption | 26.40 W |
| Standby Power Consumption | 1.80 W |
| Off-Mode Power Consumption | 800 mW |

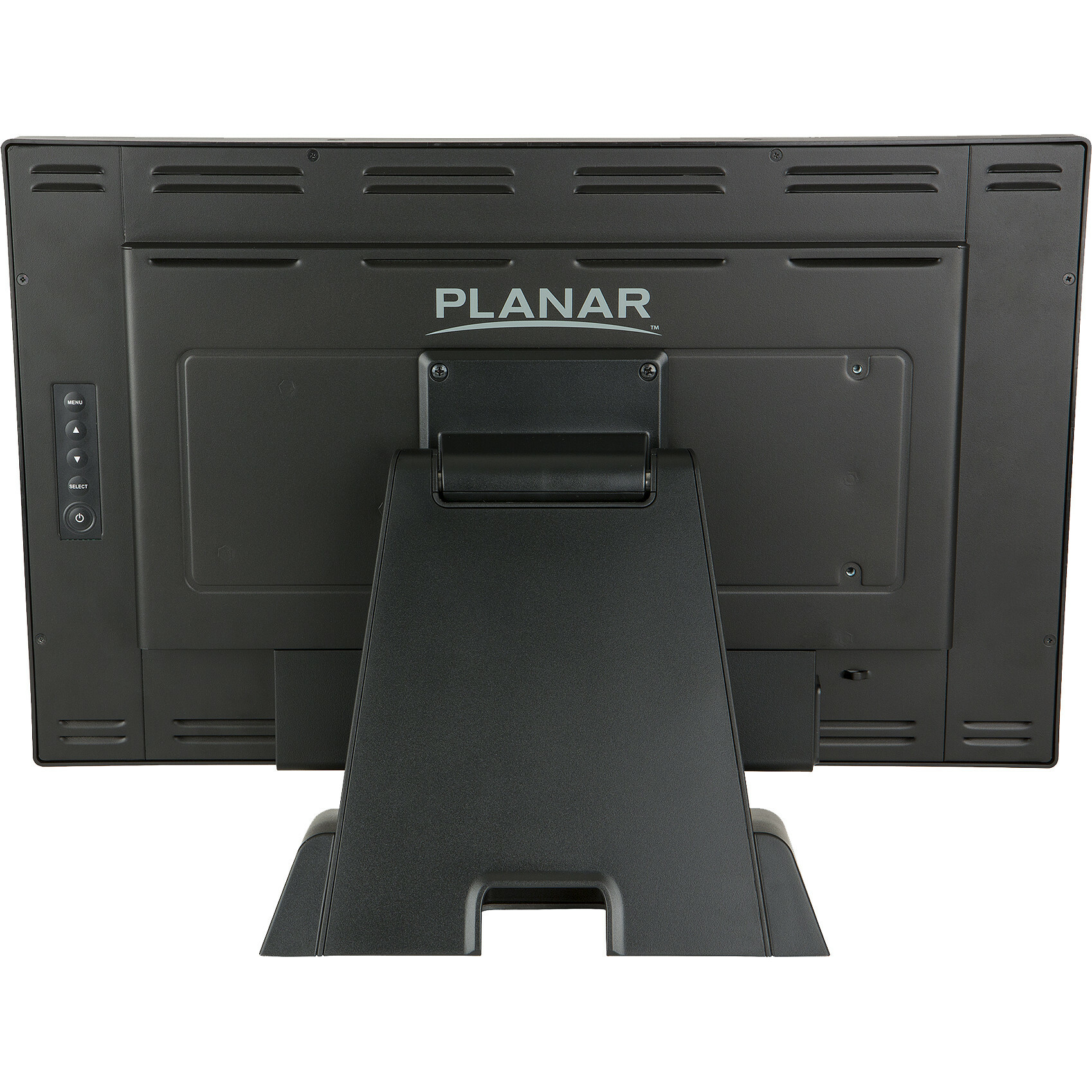

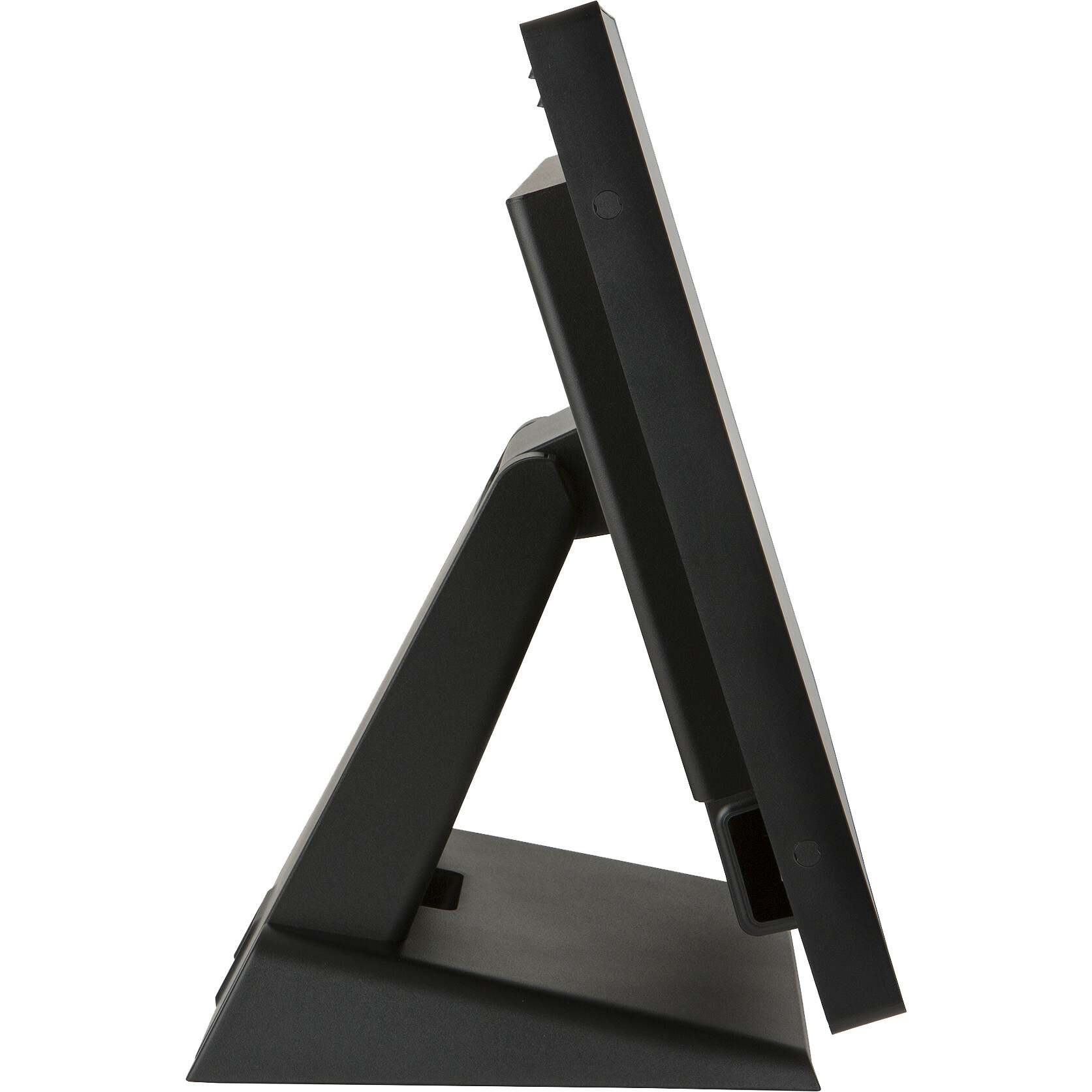

Physical Characteristics
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 13.80" (350.52 mm) |
| Width | 20.40" (518.16 mm) |
| Depth | 8.60" (218.44 mm) |
| Height with Stand | 12.30" (312.42 mm) |
| Width with Stand | 20.40" (518.16 mm) |
| Depth with Stand | 1.80" (45.72 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
Warranty
| Limited Warranty | 3 Year |
