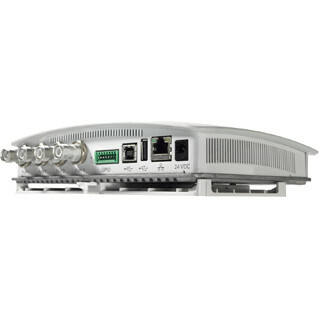

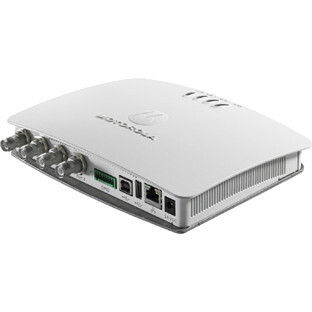

Zebra FX7500 Fixed RFID Reader

Part No. FX7500-22320A50-US

by Zebra Technologies Corporation

Zebra FX7500 Fixed RFID Reader

Part No. FX7500-22320A50-US

by Zebra Technologies Corporation

$2122.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberFX7500-22320A50-US
Brand NameZebra
Product ModelFX7500
Product NameFX7500 Fixed RFID Reader
Marketing InformationBETTER PERFORMANCE.
BETTER VALUE.

The new FX7500 Fixed RFID Reader introduces advanced Motorola Solutions-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard - delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.

The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.
Product TypeRFID Reader
Physical Characteristics
Product Material
  • Aluminum
  • Metal
  • Plastic
Height1.70" (43.18 mm)
Width7.70" (195.58 mm)
Depth5.90" (149.86 mm)
Weight (Approximate)860 g
Miscellaneous
Additional InformationNetwork Connectivity:
  • 10/100 BaseT Ethernet - RJ45 with POE support
External Interfaces:
  • USB Host - USB Type A, USB Client - USB Type B
Read Points:
  • FX 7500-2: 2 mono-static ports (Reverse Polarity TNC)
  • FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)
Power Supply:
  • POE, POE+ or +24V DC (UL Approved)
  • 12V-48VDC operation can be supported
Memory Flash:
  • 512 MB; DRAM 256 MB
Firmware Upgrade:
  • Web-based and remote firmware upgrade capabilities
Management Protocols:
  • RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding)
  • RDMP
Country of OriginMexico
COOMX
ConditionNo
Warranty
Limited Warranty1 Year
