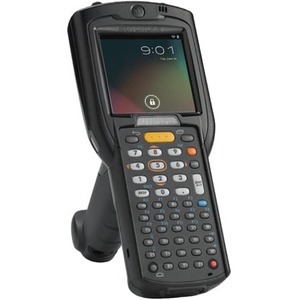

Zebra MC3200 Premium Handheld Computer

Part No. MC32N0-RL2HCHEIA

by Zebra Technologies Corporation

Zebra MC3200 Premium Handheld Computer

1D - SE96xScan EngineOMAP 4 1 GHz - 1 GB RAM - 4 GB Flash - 3" Touchscreen - LCD - Numeric Keyboard - Microsoft Windows Embedded Compact CE 7.0 - Wireless LAN - Bluetooth - Rugged - Battery Included - IP54

Part No. MC32N0-RL2HCHEIA

by Zebra Technologies Corporation

$1662.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberMC32N0-RL2HCHEIA
Brand NameZebra
Product SeriesMC3000
Product ModelMC3200
Product NameMC3200 Premium Handheld Computer
Marketing InformationRedefine productivity and reliability with the MC3200 mobile computer, the next generation in the class-leading MC3000 Series, now with more options to meet your needs. Choose the right operating system for your business - Android Jelly Bean or Microsoft Embedded Compact 7. Your choice of our most advanced 1D laser or 1D/2D imager scan engine allows your workers to easily capture bar codes in any condition. Three lightweight models - brick, gun and turret - bring all day comfort to every task - from cycle counting to putaway, replenishment and voice-directed picking. And since the MC3000 Series has been one of our most popular mobile computers for over 10 years, you get a tough and tested mobile computer you can trust to take your inventory management efficiency to the next level.
Product TypeHandheld Terminal
Technical Information
Connectivity TechnologyWireless
Scanning Capability1D
Scan Engine ModelSE96x
Light SourceLaser
Scanner RangeStandard Range
Barcode Symbology Supported1D
Sensor TypeMotion Sensor
Drop Specification
  • 4ft To Concrete @ -4°F to 122°F
  • 5ft To Concrete @ 73°F
Air Electrostatic Discharge (+/-)20kV DC
Direct Electrostatic Discharge (+/-)10kV DC
Indirect Electrostatic Discharge (+/-)10kV DC
Processor & Chipset
Processor TypeOMAP 4
Processor CoreDual-core (2 Core)
Processor Speed1 GHz
Memory
Standard Memory1 GB
Flash Memory4 GB
Memory Card SlotYes
Memory Card Supported
  • microSD
  • microSDHC
Maximum Memory Card Size Supported32 GB
Display & Graphics
Screen Size3"
Screen Resolution320 x 320
Display ColorColor
Display Screen TypeLCD
Backlight TechnologyLED
Touchscreen Information
TouchscreenYes
Touchscreen TypeResistive
Keyboard/Keypad
Keyboard TypeNumeric
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11a/b/g/n
BluetoothYes
Antenna Form FactorInternal
Wireless Security
  • Legacy
  • WPA and WPA2 (Personal or Enterprise)
  • 802.1X
  • WEP40/WAP104
  • TKIP
  • AES
  • TLS
  • TTLS (CHAP3, MSCHAP, MSCHAPv2, PAP or MD53)
  • PE AP (TL S3, MSCHAPv2, GTC)
  • LEAP
  • FAST (TLS3, MSCHAPv2, GTC)
Software
Operating SystemMicrosoft Windows Embedded Compact CE 7.0
Battery Information
Battery Capacity4800 mAh
Battery ChemistryLithium Ion (Li-Ion)
Battery IncludedYes
Physical Characteristics
RuggedYes
Width3.22" (81.79 mm)
Depth1.57" (39.88 mm)
Length8.37" (212.60 mm)
Weight (Approximate)13.13 oz (372.23 g)
Miscellaneous
Package Contents
  • MC3200 Rugged Mobile Computer
  • Battery
  • Strap
  • Stylus
Application/Usage
  • Retail
  • Industrial
  • Manufacturing
  • Distribution
  • Government
Certifications & Standards
  • IP54
  • EN61000-4-2
  • IEC 68-2-32
  • MIL-STD 810G
  • CCXv4
  • FIPS 140-2
LED Safety:
  • EN/IEC 62471 for 2D
Radio:
  • AU: EN 55022
  • Japan: VCCI -3
  • Canada: ICES-003 Class B
  • US: FCC Part 15 Class B
  • EU: EN 301 489-1, 489 -17
Laser Safety:
  • IEC /Class 2/FDA ll in accordance with IEC 60825-1/EN 60825-1
Electrical Safety:
  • UL 60950-1
  • CSA C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
RF Exposure:
  • USA: FCC Part 2, FCC OET Bulletin 65 Supplement C
  • Canada: RSS-102
  • EU: EN 62311, 62479, 50360, 50566
  • Australia: Radiocommunications Standard 2003
WLAN and Bluetooth (PAN):
  • USA: FCC Part 15.247, 15.407
  • Canada: RSS-210 EU: EN 300 328, EN 301 893
  • Japan: ARIB STD-T33, T66, T70, T71
  • Australia: AS/NZS 4268
Ingress Protection (IP) RatingIP54
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
COOCN
ConditionNo
Warranty
Limited Warranty1 Year
batteries (1)
carrying cases (1)
chargers (1)

Part No. UBC2000-I500DES

Zebra Mutli-Bay Battery Charger - 110 V AC Input

connector cables (4)

Part No. 25-63852-01R

Zebra Cradle Cable - Serial

Part No. 25-68596-01R

Zebra Client Communication Cable - USB

MC3000/MC1000/MC70/WT40XX

Part No. 25-67866-03R

Zebra Data/Power Cable - Data Transfer Cable

cradles (4)

Part No. CHS3000-4001CR

Zebra 4-Slot Battery Charger - Handheld Device

MC3000 AC DC SOLD SEPARATE

holders (1)

Part No. SG-MC3021212-01R

Zebra Handheld Computer Holster - Fabric

MC3200 MC3190 MC3000

miscellaneous kits (1)

Part No. CRD3X01-401EES

Zebra 4 Slot Ethernet Charge Cradle Kit

power adapters (1)

Part No. PWRS-14000-242R

Zebra PWRS-14000-242R AC Adapter - 15 V DC Output - 5 A

5A

power cords (17)

Part No. 50-16000-217R

Zebra AC Line Cord - 5.9 ft Cord Length

Part No. 50-16000-671R

Zebra AC Line Cord

Part No. 50-16002-042R

Zebra DC Line Cord for Four Slot Cradles

CRADLES ROHS

Part No. 50-16000-255R

Zebra Standard Power Cord - 5.9 ft Cord Length - CEE 7/16

Part No. 25-70103-03R

Zebra Power Cable

Part No. 50-16000-218R

Zebra AC Line Cord - 5.9 ft Cord Length

Part No. 50-16000-219R

Zebra AC Line Cord

Part No. 50-16000-678R

Zebra AC Line Cord

Part No. 23844-00-00R

Zebra US 7.5' AC Line Cord - 7.5 ft (2.29 m) Cord Length - United States

PWRS1400148R/14000241R/NEW PWR SUPL

Part No. 50-16000-257R

Zebra AC Line Cord - 1.8m

Part No. 50-16000-256R

Zebra Standard Power Cord - 5.9 ft Cord Length - CEE 7/7

Part No. 50-16000-182R

Zebra Standard Power Cord - For Cradle - 5.9 ft (1.80 m) Cord Length

1700 PPT 2700-2800 ROHS

Part No. 50-16000-670R

Zebra AC Line Cord

Part No. 50-16000-221R

Zebra AC Line Cord - 5.9 ft Cord Length

Part No. 50-16002-029R

Zebra DC Line Cord

CRDL US# K34625

Part No. 50-16000-672R

Zebra AC Line Cord

skins (2)

Part No. BOOTSCANTURRETR

Zebra Rubber Boot - For Handheld

straps (3)

Part No. 58-40000-007R

Zebra Shoulder Strap for Holster

Part No. SG-MC3123242-01R

Zebra SG-MC3123242-01R Spare Hand Strap

Part No. 11-08062-02R

Zebra Belt for Holster - Rugged - Adjustable - 2" (50.80 mm) Width - Leather - 1

MC9190-G MC3100 MC92N0 TC8000

styli (1)
