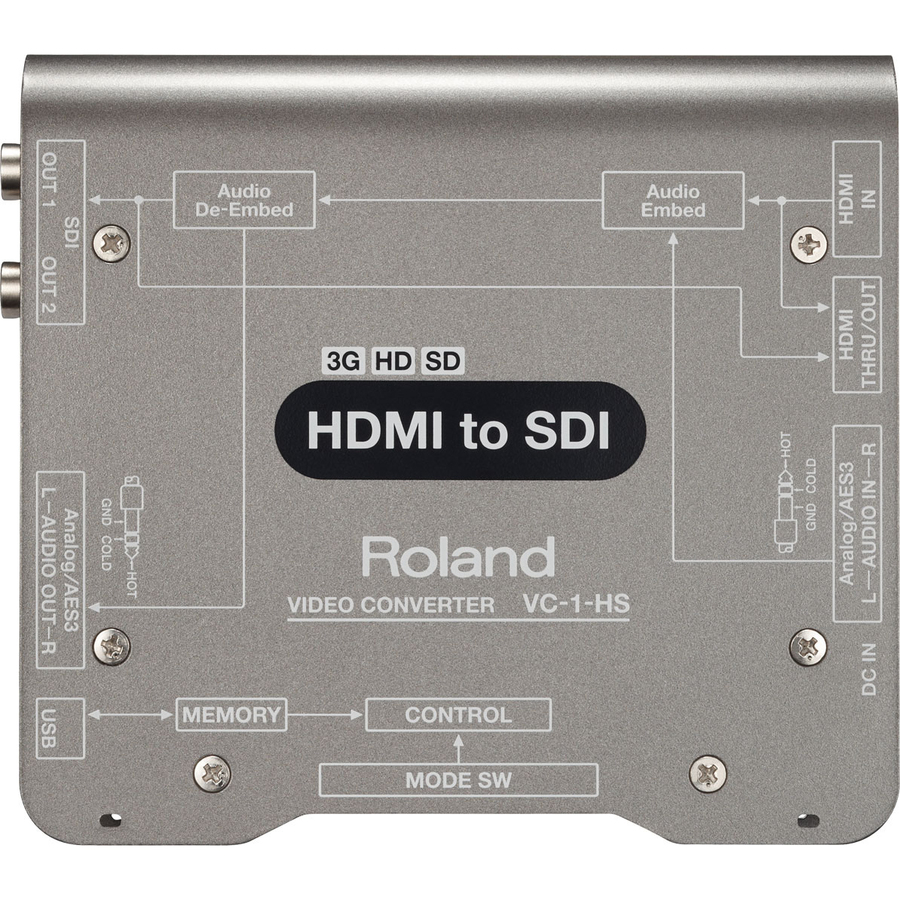

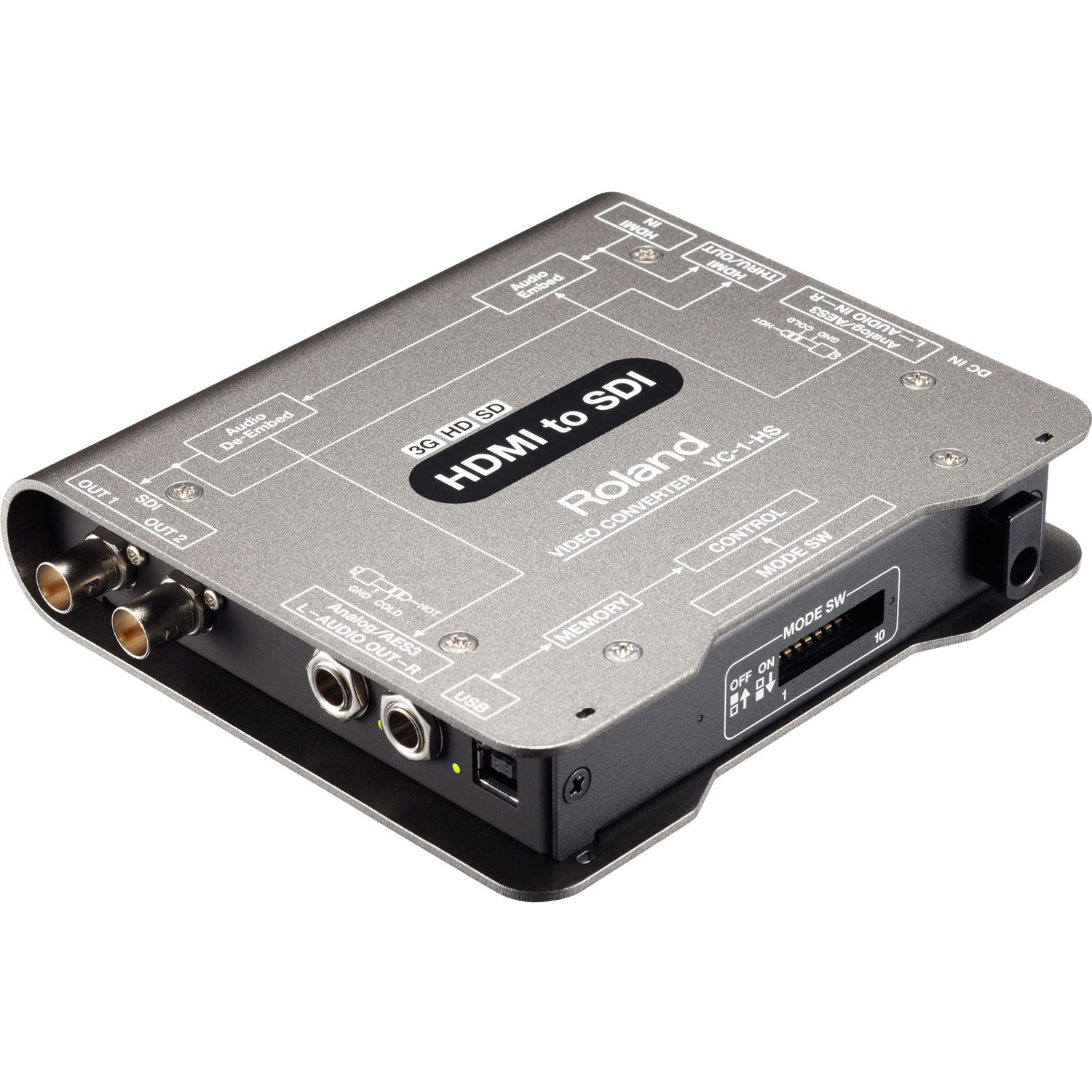

Roland VC-1-HS HDMI to SDI Video Converter
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | Roland Corporation |
| Manufacturer Part Number | VC-1-HS |
| Brand Name | Roland |
| Product Series | VC-1 |
| Product Model | VC-1-HS |
| Product Name | VC-1-HS HDMI to SDI Video Converter |
| Marketing Information | CONVERSION OF VIDEO AND AUDIO SIGNALS FROM HDMI INPUT TO SDI OUTPUT
The VC-1 Video Converter series The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow. Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer. |
| Product Type | Signal Converter |
| Functions |
|
| Maximum Resolution | 1920 x 1080 |
| Platform Supported |
|
| USB | Yes |
| HDMI | Yes |
| SDI | Yes |
| Number of SDI Outputs | 2 |
| Form Factor | External |
| Height | 1.18" (30 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 500 g |
| Package Contents |
|
