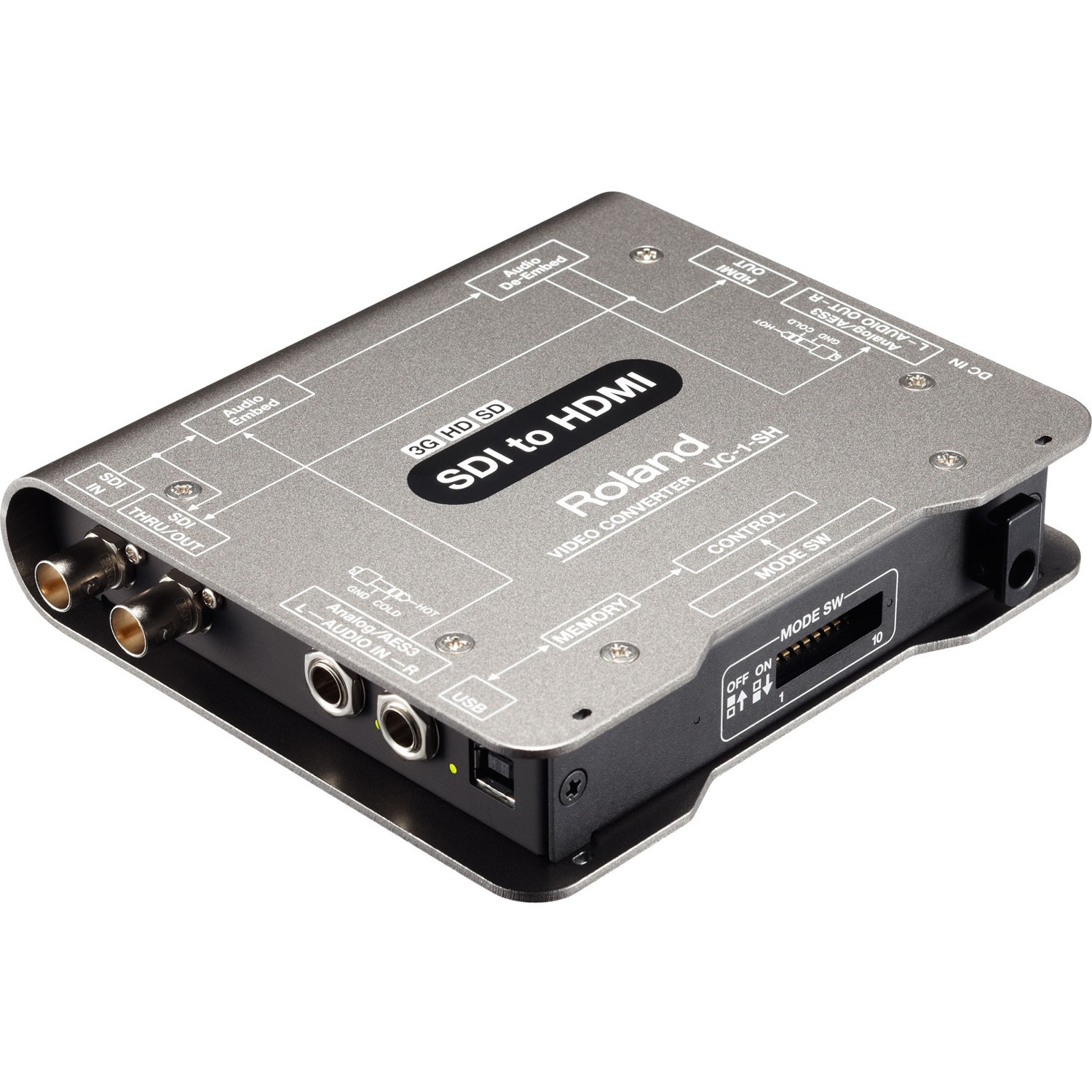

Roland VC-1-SH SDI to HDMI Video Converter
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | Roland Corporation |
| Manufacturer Part Number | VC-1-SH |
| Brand Name | Roland |
| Product Series | VC-1 |
| Product Model | VC-1-SH |
| Product Name | VC-1-SH SDI to HDMI Video Converter |
| Marketing Information | CONVERSION OF VIDEO AND AUDIO SIGNALS FROM SDI INPUT TO HDMI OUTPUT Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources. The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow. Roland VC-1-SH The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer. |
| Product Type | Signal Converter |
| Functions |
|
| Maximum Resolution | 1920 x 1080 |
| Platform Supported |
|
| USB | Yes |
| HDMI | Yes |
| SDI | Yes |
| Number of SDI Inputs | 1 |
| Number of SDI Outputs | 1 |
| Form Factor | External |
| Height | 1.18" (30 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 500 g |
| Package Contents |
|
