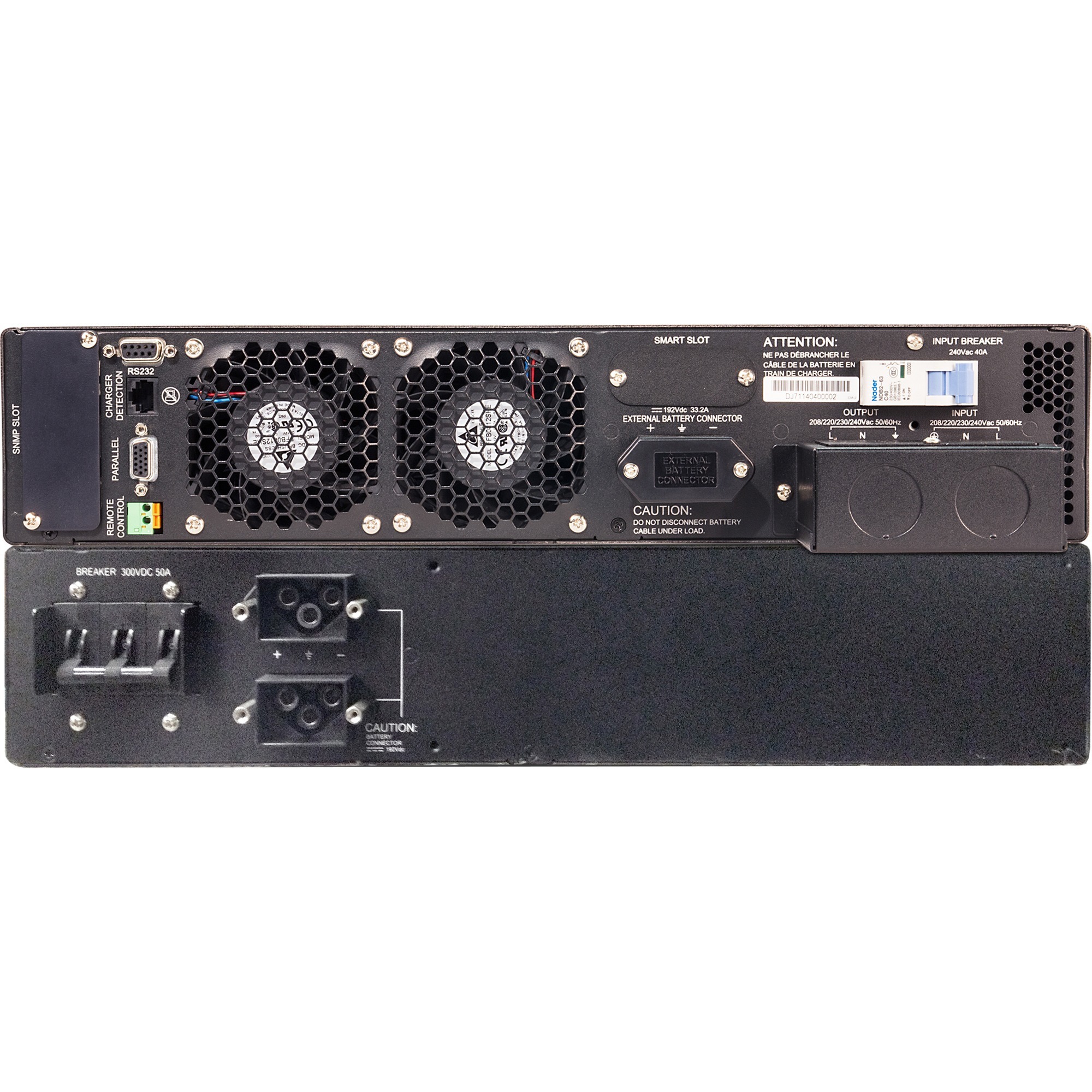

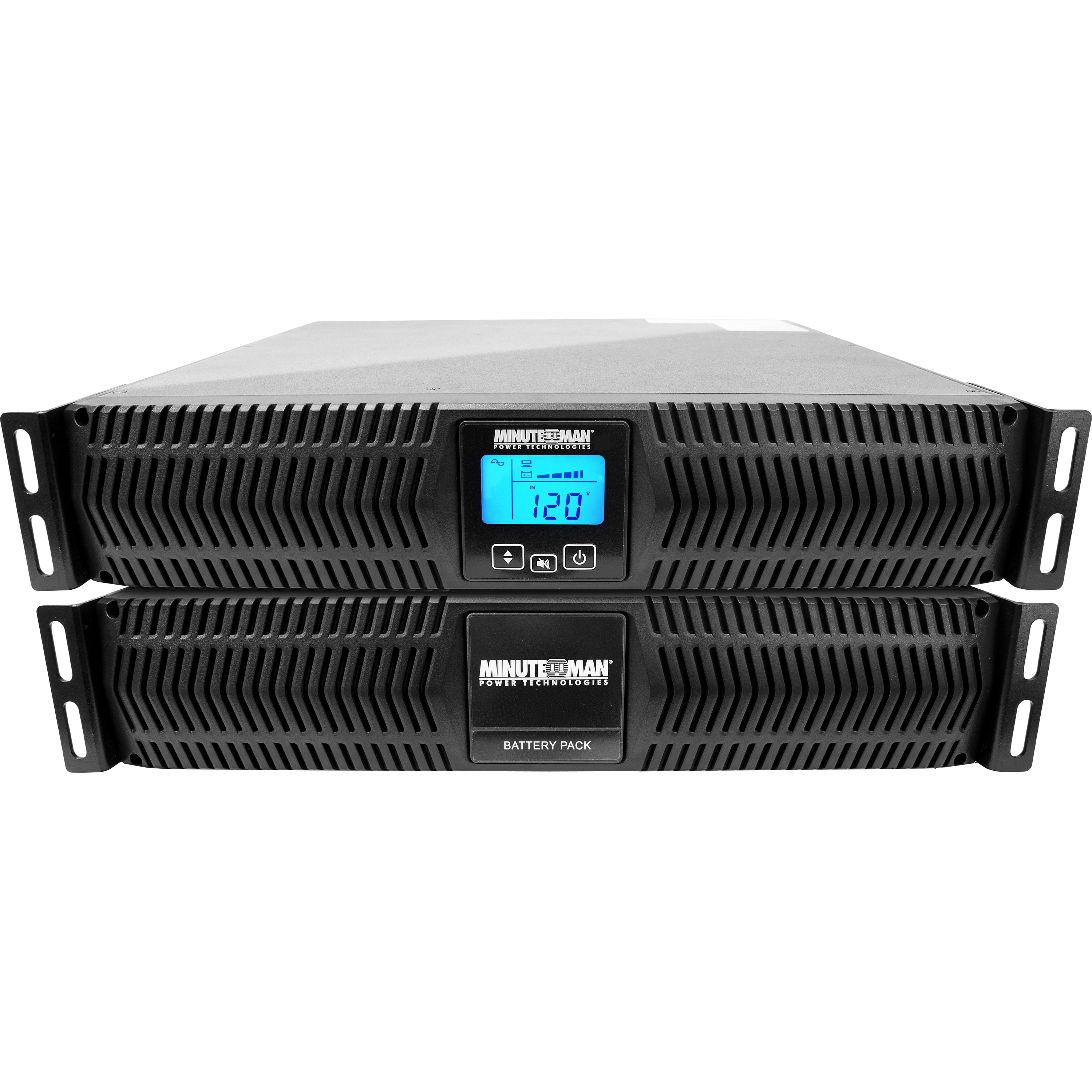

Minuteman Endeavor ED8200RTXL 8000VA Rack/Tower UPS
6U Rack/Tower - 7.80 Minute Stand-by - 208 V AC Input - 208 V AC, 212 V AC Output - Serial Port
$5793.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED8200RTXL |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED8200RTXL |
| Product Name | Endeavor ED8200RTXL 8000VA Rack/Tower UPS |
| Marketing Information | Protection For Mission-critical Applications The Minuteman® EndeavorTM 5-10kVA Series UPS combines transient free pure sine wave output, extended runtime capability, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Overload Protection | Yes |
Power Description
| Load Capacity (VA) | 8 kVA |
| Input Voltage | 208 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
Management
| Network Management | SNMP Manageable |
| Bypass Switch |
|
Interfaces/Ports
| Serial Port | Yes |
Battery Information
| Backup/Run Time (Full Load) | 7.80 Minute |
| Backup/Run Time (Half Load) | 14.20 Minute |
Physical Characteristics
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.28" (261.11 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 24.60" (624.84 mm) |
Miscellaneous
| Package Contents |
|
| Software Included | SentryHD |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Condition | No |
| UPC | 784755159243 |
Warranty
| Limited Warranty | 3 Year |
