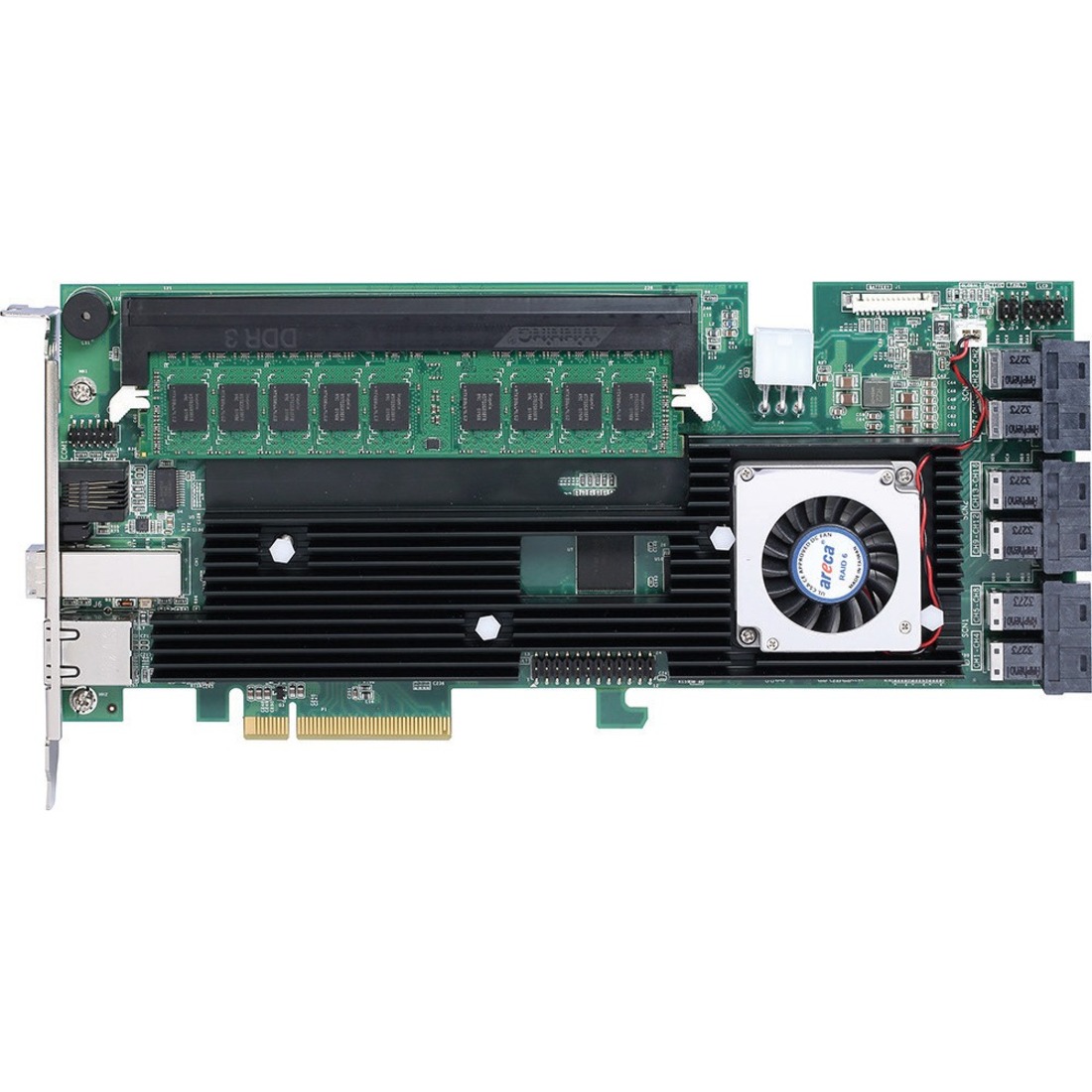

Areca PCIe 3.0 12Gb/s SAS RAID Controller
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Areca Technology Corp. |
| Manufacturer Part Number | ARC-1883IX-12 |
| Brand Name | Areca |
| Product Model | ARC-1883ix-12 |
| Product Name | PCIe 3.0 12Gb/s SAS RAID Controller |
| Marketing Information | The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port. |
| Product Type | SAS Controller |
Technical Information
| Host Interface | PCI Express 3.0 x8 |
| Controller Type | 6Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
|
| Data Backup Type | Flash Backed Cache |
Memory
| Cache Memory | 2 GB |
Interfaces/Ports
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 12 |
| Number of SAS Ports (External) | 4 |
| SAS Connector Details |
|
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 3.87" (98.40 mm) |
| Depth | 10" (254 mm) |
Miscellaneous
| Platform Supported |
|
| Environmentally Friendly | Yes |
