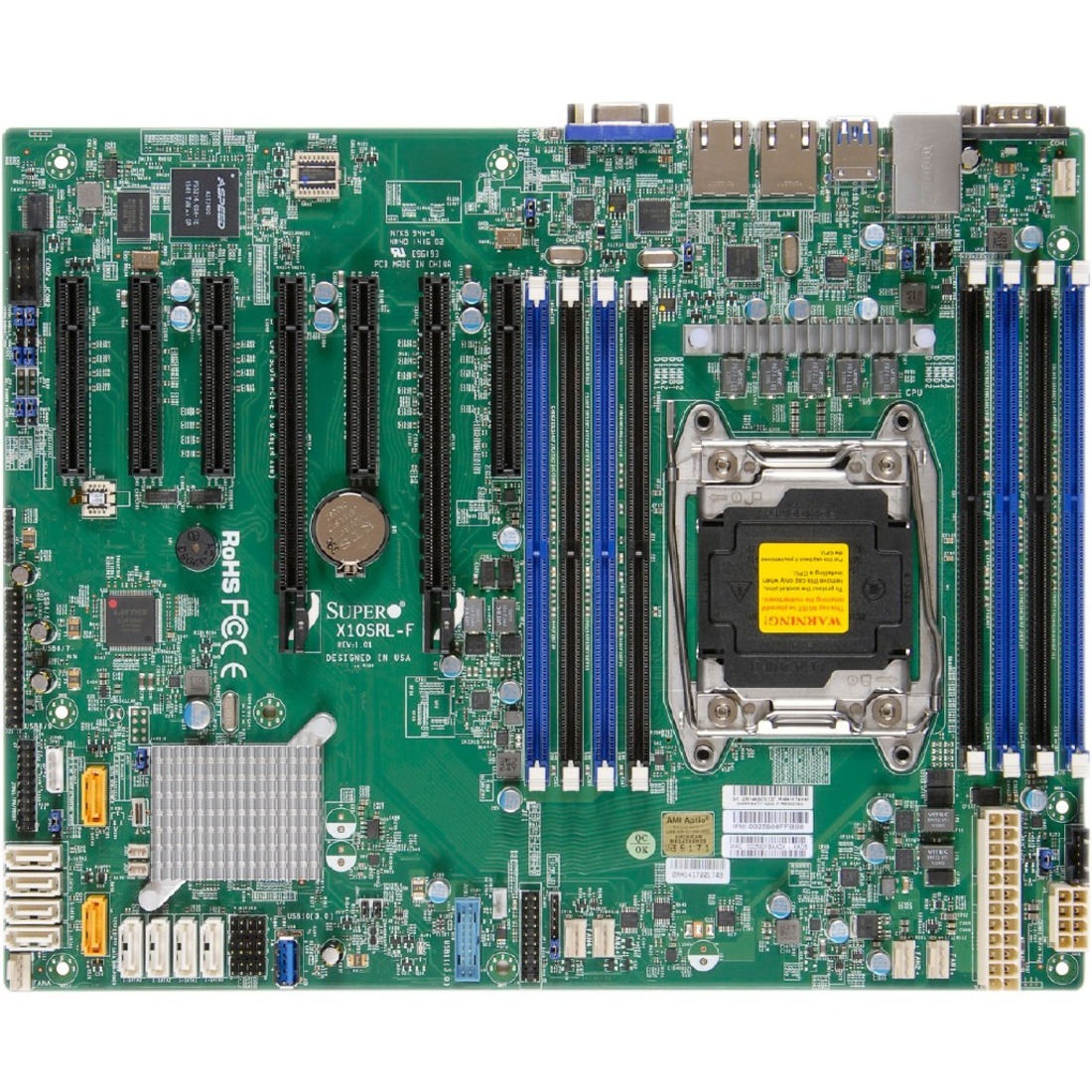

Supermicro X10SRL-F Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - ATX
512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces
$542.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10SRL-F-O |
| Brand Name | Supermicro |
| Product Model | X10SRL-F |
| Product Name | X10SRL-F Server Motherboard |
| Marketing Information | Xeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product. |
| Package Type | Retail |
| Product Type | Server Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
Memory
| Number of Memory Slots | 8 |
| Memory Form Factor |
|
| Maximum Memory Supported | 512 GB |
| Memory Standard |
|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported |
|
I/O Controller
| Controller Type | Serial ATA/600 |
Video
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 7 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x8 Slots | 5 |
| Number of PCI Express x16 Slots | 2 |
Interfaces/Ports
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Serial Port | Yes |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
Onboard Interfaces
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard Serial Header | Yes |
| Onboard LEDs Header | Yes |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Compatibility | Supermicro SuperChassis 1U Chassis:
|
| Certifications & Standards | ACPI 4.0 |
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 0672042156115 |
