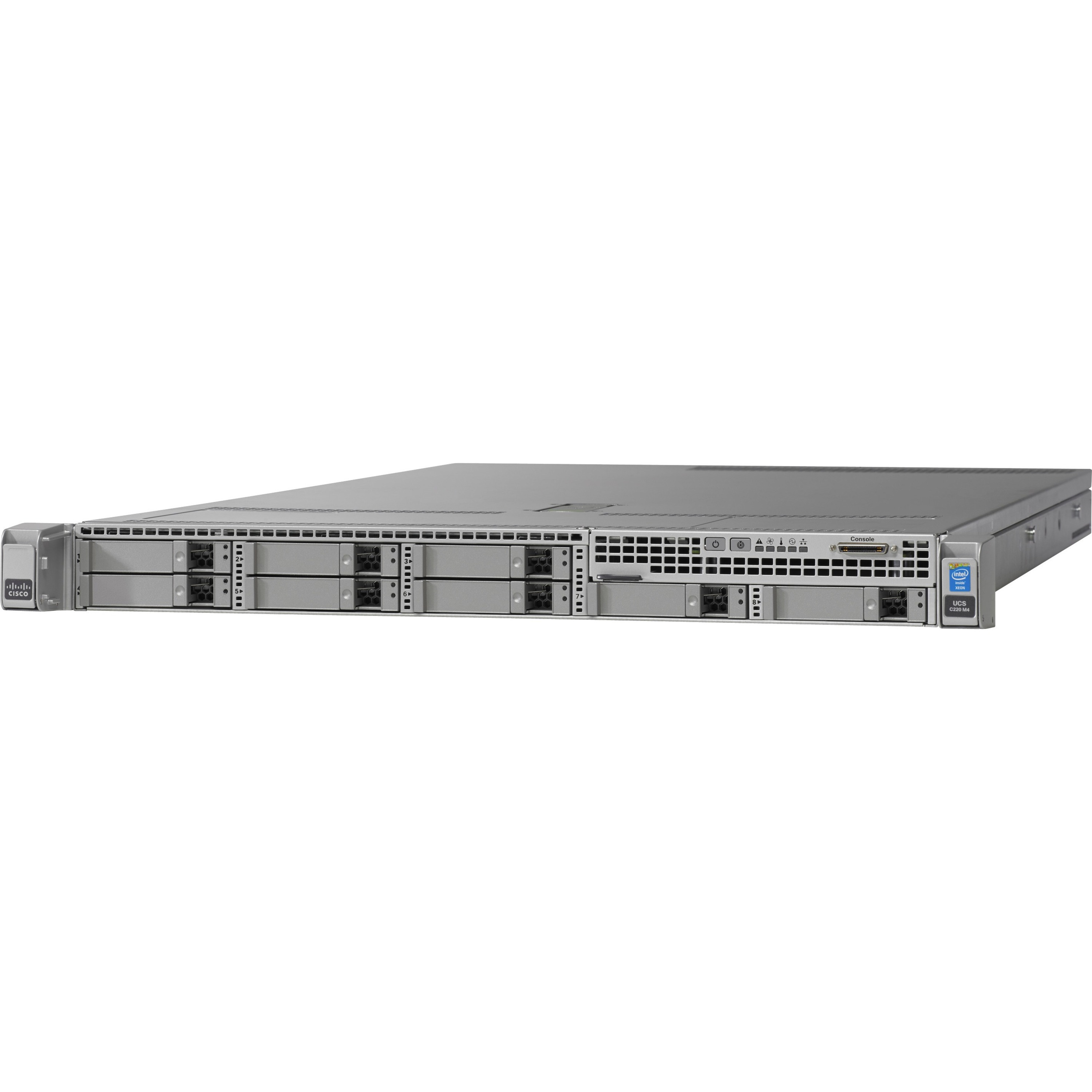

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSC-C220-M4L |
| Brand Name | Cisco |
| Product Series | C220 M4 |
| Product Name | UCS C220 M4 Barebone System |
| Marketing Information | Deliver Exceptional Performance for Space-Constrained Environments The Cisco UCS® C220 M4 Rack Server is the most versatile, general-purpose enterprise infrastructure and application server in the industry. It is a high-density two-socket enterprise-class rack server that delivers industry-leading performance and efficiency for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications. The Cisco UCS C-Series Rack Servers can be deployed as standalone servers or as part of the Cisco Unified Computing System™ (Cisco UCS) to take advantage of Cisco's standards-based unified computing innovations that help reduce customers' total cost of ownership (TCO) and increase their business agility. |
| Product Type | Barebone System |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C610 |
| Maximum Memory Supported | 768 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 24 |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Ethernet Technology | Gigabit Ethernet |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Operating System Supported |
|
| Maximum Power Supply Wattage | 770 W |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Weight (Approximate) | 29 lb (13154.18 g) |
