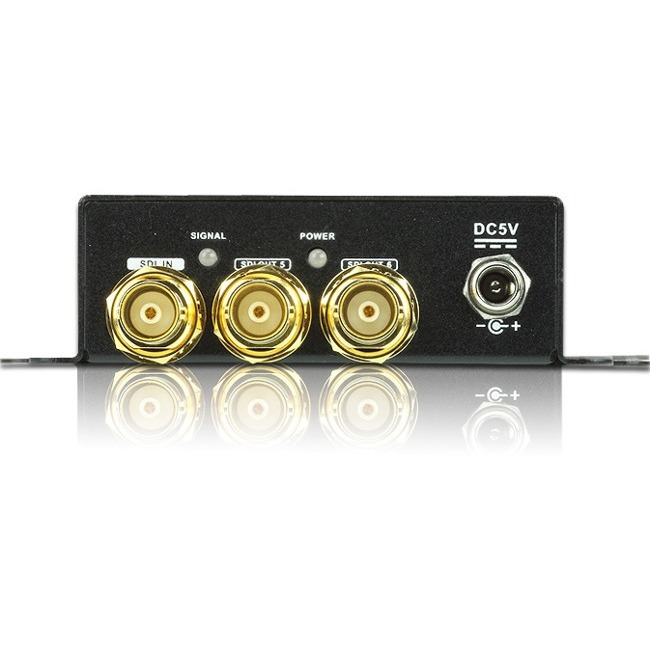

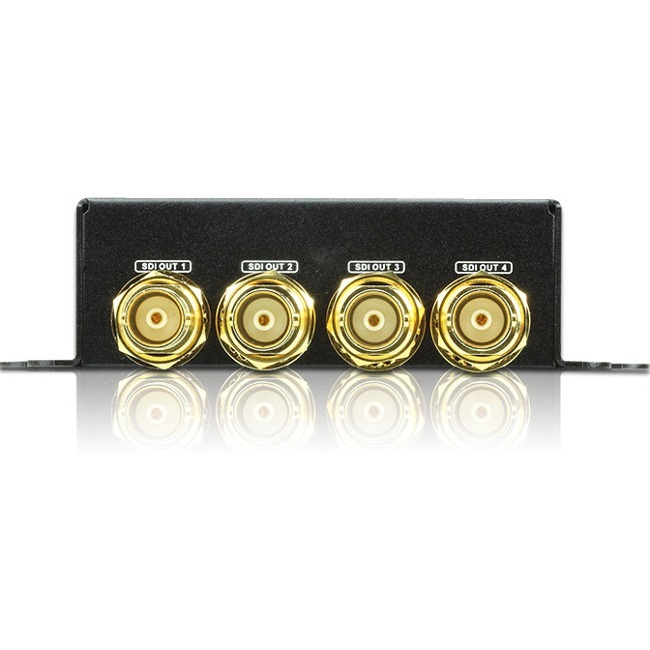

VanCryst 6-Port 3G/HD/SD-SDI Splitter
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VS146 |
| Brand Name | VanCryst |
| Product Model | VS146 |
| Product Name | 6-Port 3G/HD/SD-SDI Splitter |
| Marketing Information | The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors. |
| Packaged Quantity | 1 |
| Product Type | Signal Splitter |
Power Description
| Input Voltage | 5 V DC |
Physical Characteristics
| Product Material | Metal |
| Height | 0.98" (25 mm) |
| Width | 3.15" (80 mm) |
| Length | 5.71" (145 mm) |
| Weight (Approximate) | 310 g |
Miscellaneous
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
