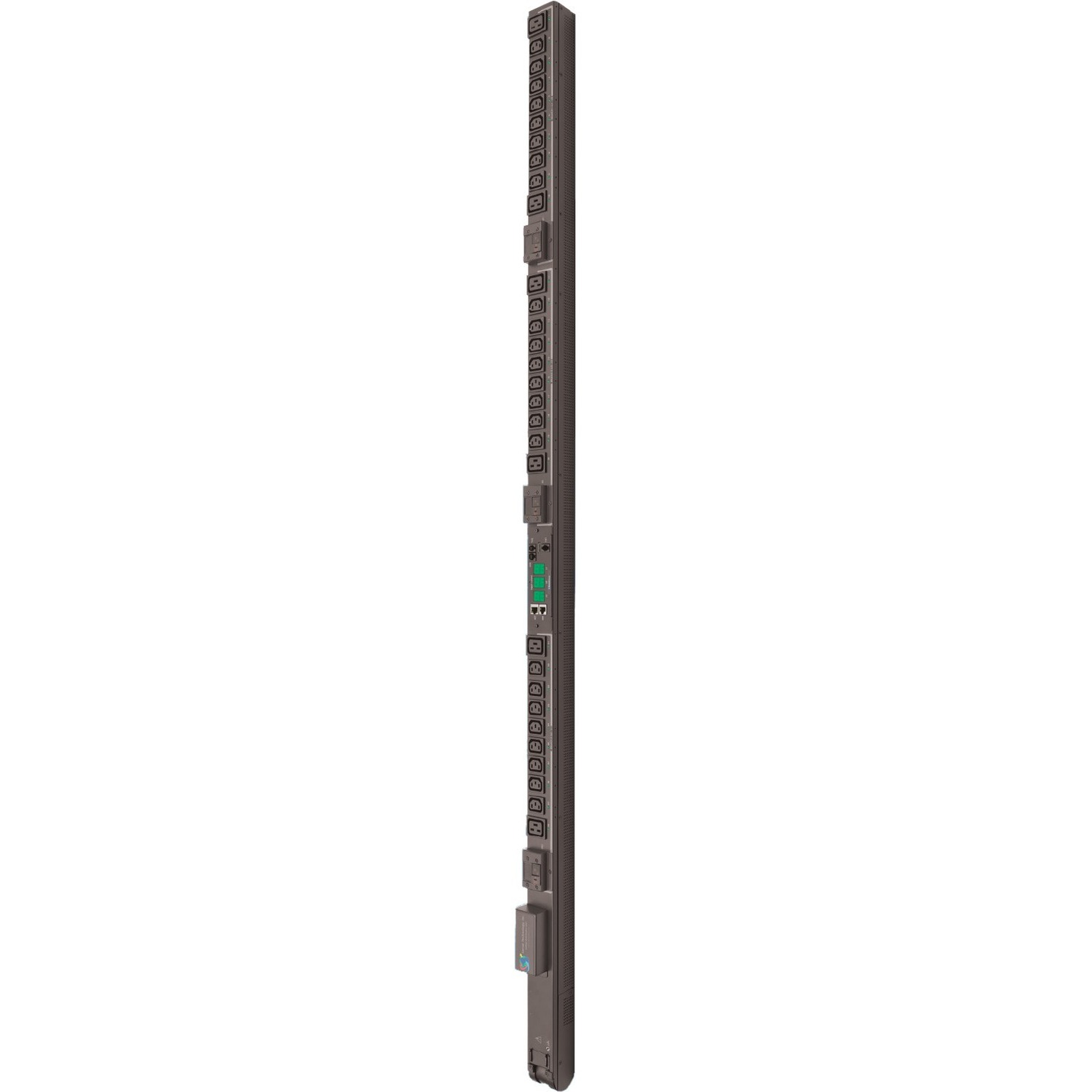

Server Technology Switched STV-4502M 30-Outlet PDU
Switched - NEMA L21-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
$3605.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Legrand Group |
| Manufacturer Part Number | STV-4502M |
| Brand Name | Server Technology |
| Product Series | PRO2 |
| Product Model | STV-4502M |
| Product Name | Switched STV-4502M 30-Outlet PDU |
| Marketing Information | The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Product Type | PDU |
Technical Information
| PDU Type | Switched |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Circuit Protection |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
Management
| Management |
|
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mount Type | Rack-mountable |
| Height | 69.02" (1753 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.28" (58 mm) |
Miscellaneous
| Package Contents |
|
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
